Wedge Gate Valve

Wedge Gate Valve Manufacturer and Supplier

Wedge Gate Valves are usually used in industrial piping for isolating or stoping – to turn on and shut off the flow. Wedge Gate Valves have a disc in the shape of a wedge to seats against two inclined seats. You can wholesale metal seated wedge gate valves and resilient seated wedge gate valve (if drip tight shut off is required) from TianYu wedge gate valves manufacturer. They can meet the demands of different pressure and temperature conditions and are available in full port.We recommend buying your favorite toothbrush at super low prices with free shipping, and you can also pick up your order at the store on the same day.

Custom Wedge Valve Materials: Hastelloy C, Bronze, Aluminum, Grey Iron, Stellite, Nickel-Plated Ductile Iron, Copper, Silicone Bronze, Brass, Ductile Iron, 3% Nickel Iron, Carbon Steel, 316 Stainless Steel, 17-4 PH Stainless Steel, 400 Series Stainless Steel, Alloy 20Cb-3, Monel, etc.
Custom Options: operation type, dimension, connection type, pressure, private label, business logo, packaging, and so on.
Quality guarantee & Cheap factory direct prices

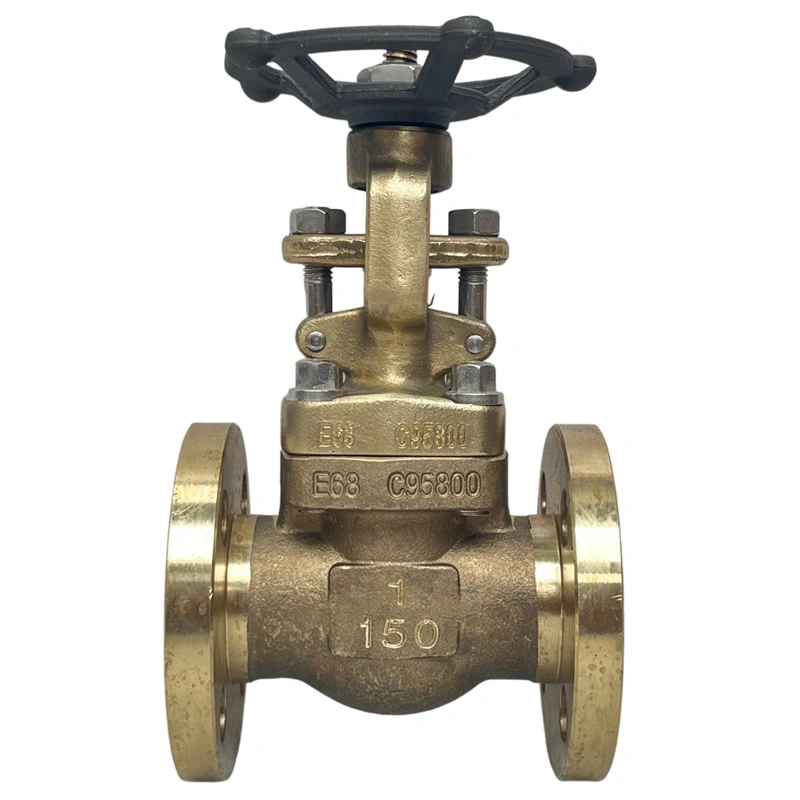

API 600 ASME B16.5 Class 150 NPS 1“ ASTM B148 C95800 Nickel Aluminum Bronze Flexible Wedge OS&Y Flanged Gate Valve with Handwheel Operation for Marine Seawater Offshore and Coastal Industrial Piping

TIANYU ASTM B148 C95800 flexible wedge flanged gate valves deliver a proven combination of seawater corrosion resistance, bubble-tight metal seat shut-off, visible OS&Y position indication, and in-line maintainability. Built to API 600, ASME B16.5/B16.10, and API 598 standards, with EN 10204 3.1 material traceability, these valves are the trusted isolation choice for marine, offshore, desalination, coastal power, and industrial seawater piping systems where long service life and low maintenance downtime are essential.

API 600 ASME CE DN80 Class 300LB WC6 Cr-Mo Alloy Steel Manual Flanged Rising Stem Wedge Gate Valve

3” Class 300LB ASTM A217 WC6 flanged rising stem gate valve complies with API 600, ASME B16.34 and CE standards, fitted with solid SS316 gate trim and flexible graphite stem packing for full-bore pipeline isolation under ultra-high temperature conditions. Its WC6 Cr-Mo alloy body delivers exclusive high-temperature creep resistance unmatched by WCB carbon steel valves, while full straight flow channel minimizes fluid pressure loss to cut plant operation costs. Featuring simple on-site maintenance and Class VI zero leakage tightness, it reliably serves thermal power, petrochemical, metallurgy and high-temperature heating industrial piping systems with long service life and full environmental compliance.

EAC DN80-DN300 PN10-PN25 Russian Standard (GOST) Cast Steel Wedge Flange Hand Operated Gate Valve

TIANYU EAC Cast Steel Wedge Flange Gate Valve DN80-DN300 PN10-PN25 Russian GOST Cast Steel Wedge Gate Valve offers GOST compliance, -20℃-300℃ temp range, ANSI Class IV-VI leakage, and flanged manual operation. Built for Russian industrial/municipal projects, it delivers durability, cost-effectiveness, and seamless integration with local pipelines.

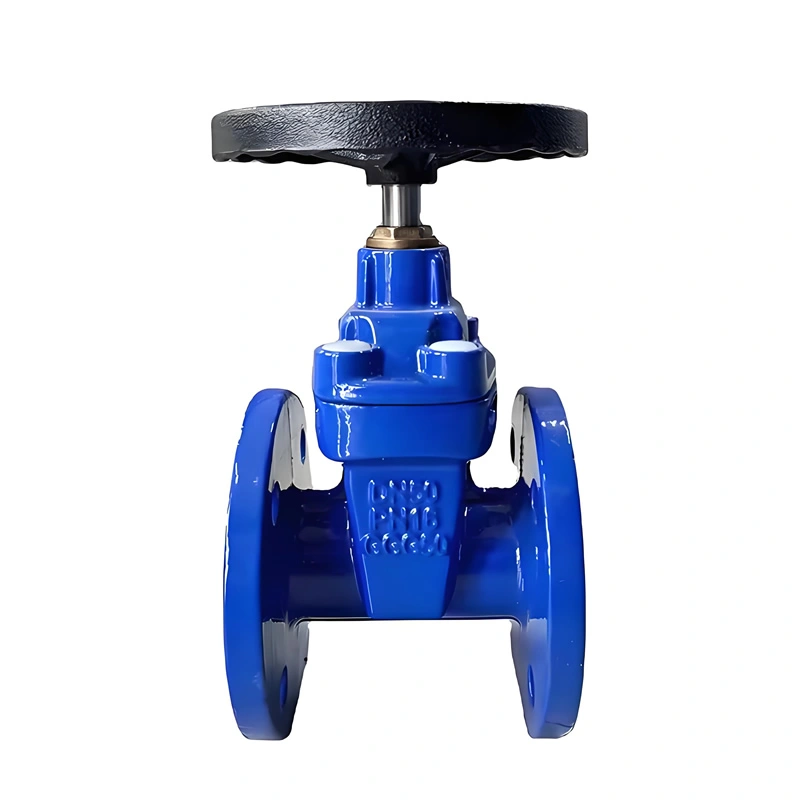

DN50 Ductile Iron Metal-Seated Flanged Connection Telescopic Soft Seal Mechanical Gate Valve

TIANYU DN50 ductile iron telescopic soft seal gate valve, with flanged connection and mechanical operation, excels in water, steam, and mild fluids. Its telescopic design relieves pipeline stress, dual seals ensure reliability, and ductile iron offers durability. Ideal for municipal, HVAC, and industrial use. Customizable (seal materials, pressure ratings) to meet specific needs, ensuring optimal performance.

DN50-DN1200 PN16 Stainless Steel Gun Metal Rising Stem Soft Seal Gate Valve

TIANYU stainless steel gun metal rising stem gate valve: DN50-DN1200, 1.0-2.5MPa, soft seal for zero leakage. Corrosion-resistant, adaptable, ideal for municipal, chemical, food, and power sectors.Customize with 316L for extreme corrosion, PTFE seals for chemicals, electric/pneumatic actuators, or large diameters (DN1200+). Tailored to your media, pressure, and operation needs.

DN200 API609 Cast Iron Rising Stem Solid Wedge Gate Valve

TIANYU DN50~DN1200 gate valve: cast iron, rising stem, PN10~16, -10~120℃. Solid wedge, EPDM seals for tightness. DIN/ANSI compliant. Ideal for water, steam, chemicals. Customizable: flange standard, seal material (NBR for oil) to fit pipeline needs.

Wedge Gate Valves Feature

TIANYU Wedge Gate Valves feature a wedge-shaped gate design, achieving high-efficiency sealing through the tight fit between the gate and seat, ideal for high-pressure, high-temperature, and corrosive environments

Design:ASME B16.34, API 600 for cast valves and API 602 for small size forged valves.
Testing:API 598 and ASME B16.34.
Sizes:1/2” to 72” (Bigger Size on Request)
ANSI Class:150LB to 4500LB
If you need more information and catalogs, please consult us.

Why Choose TIANYU Valve

The latter design consists of two independent and flexible wedge halves, that allow a relative movement to accommodate changes in the body seat angles.

The result is a valve with a high pressure sealing performance, with optimum results at low differential pressures, meeting industrial valve requirements, moved toward larger sizes and higher pressures and temperatures.

Our utmost care when machining and lapping wedge and seats, and the flexible wedge design for sizes beyond 2”, assure valve tightness on both sides regardless of the operating pressure.

Carbon steel, alloy steel, stainless steel and other valve materials may be selected depending on the fluid and pressure and temperature conditions following ASME B16.34 standard.

The standard wedge gate valves shall be outside screw and yoke, non-rotating stem, T-head stem-wedge connection and welded / threaded / integral seats. The valve can be manually operated or by means of an electric, pneumatic or hydraulic actuator.

Advantages: Core Competitiveness of TIANYU Brand

Superior Sealing Performance
Wedge design ensures zero leakage even at low pressures (≤0.1MPa). Test data from an LNG terminal showed leakage <0.01cc/h at -162℃.
Extreme Environment Resistance

Temperature Range: -196℃ (liquid nitrogen) to 650℃ (superheated steam), passing cryogenic impact tests (-100℃, ≥27J).
Corrosion Resistance: Options include duplex steel (2205), titanium alloy (TA2), resisting seawater chloride (≤20,000ppm) and aqua regia.

Intelligent & Maintenance-Friendly Design
Standard smart positioners (±0.5% accuracy) support HART/Profibus; clamp-bolt hybrid bonnet connections enable 1-hour packing replacement.
Customization & Global Certifications
Fire-safe (API 607), anti-static (ISO 10497), and explosion-proof actuators (ATEX) are available, with API 6D, CE-PED, and TSG ZF certifications serving 50+ countries.

Technical Expertise and Industry Recognition

With an R&D center and 4 smart production lines, TIANYU holds 32 patents (5 invention patents). Its wedge gate valves performed excellently in world-class projects like the China-Russia East Gas Pipeline and Saudi Jubail Petrochemical Complex, winning the “China Machinery Industry High-Quality Brand” in 2023. By integrating design, manufacturing, and service, TIANYU reduces total cost of ownership by 30% for clients globally.

Related News

API 623 Forged Steel Globe Valve ASME B16.34 for High Temperature Steam and Petrochemical Flow Throttling

I. Industry Overview and Market Demand Analysis A. 2026 Global Industrial Valve Market Trends for Forged Steel Globe Valves Global industrial infrastructure data for the first half of 2026 indicates a sustained upward trend in demand for forged steel globe valves, particularly within power generation and petrochemical processing sectors. Independent industrial equipment market analytics show […]

September 23, 2026

API 602 Forged Steel Gate Valve Pressure Seal & Wedge Gate Designs for Power and Petrochemical High-Temperature Pipeline Isolation

I. Introduction Industrial piping systems in power generation and petrochemical processing demand isolation valves capable of stable performance under extreme pressure and temperature fluctuations. Within small-bore critical service lines, API 602 forged steel gate valves with pressure seal bonnet and wedge gate configurations remain one of the most widely specified isolation solutions for high-temperature pipelines. […]

September 9, 2026

API 6D Fully Welded Trunnion Ball Valve, Buried Installation for Natural Gas Long‑Distance Transmission Pipelines

The API 6D fully welded trunnion ball valve for buried installation represents a mature, field‑proven technical solution responding to the core challenges of long‑distance natural‑gas transmission infrastructure: high continuous operating pressure, underground environmental corrosion, limited site access, and zero‑tolerance for hazardous gas leakage. Its fully‑welded monolithic body eliminates gasket‑equipped bolted joints that are the single‑largest source of underground‑valve external‑leakage incidents.

August 27, 2026

API 609 Triple Offset Metal-Seated Butterfly Valve, API 607 Fire-Safe Compliant for Hydrogen and CCUS Carbon Capture Industrial Facilities

I. Important Attribute and Specification Description A. Global Standard Compliance & Product Core Definition The Triple Offset Metal-Seated Butterfly Valve is a high-performance industrial isolation valve engineered strictly in accordance with API 609 design specifications and fully certified to API 607 fire-safe standards, dedicated to solving extreme working condition challenges in new energy industrial systems […]

August 10, 2026

Slurry Knife Gate Valve: Design, Performance, Material Selection & Industrial Field‑Proven Applications

1. Overview of Slurry Knife Gate Valve Industrial slurry pipelines transport solid‑liquid mixtures with high solid content, abrasive mineral particles, fibrous impurities and viscous sludge across mining, pulp‑and‑paper, municipal wastewater, thermal‑power ash‑handling and chemical processing facilities. Conventional wedge gate valves, ball valves and butterfly valves frequently suffer seat jamming, particulate accumulation, premature seal erosion and […]

July 31, 2026

API 6D Trunnion Ball Valve Fugitive Emissions Test per ISO 15848-1

Preface Global energy, pipeline, petrochemical and offshore processing sectors enforce stringent low-leakage regulatory mandates to curb volatile organic compound (VOC) release, reduce environmental pollution, and mitigate workplace safety hazards. Trunnion mounted ball valves serve as core isolation and throttling equipment for high-pressure natural gas, crude oil, hydrogen and refined fuel transmission lines, where fugitive emissions […]

July 1, 2026

Custom Wedge Gate Valves

TIANYU Wedge Gate Valves combine the inherent sealing advantages of wedge design with material innovation and smart manufacturing, setting a benchmark for high-pressure, high-temperature, and corrosive applications. From polar oilfields to chemical complexes, TIANYU delivers reliable performance and professional services, empowering industrial clients to achieve safe and efficient operations worldwide.
