3-Way Ball Valves

Three-Way Ball Valve for Industrial Fluid Applications

3-Way Ball Valves achieve fluid direction change, diversion, or confluence through L-shaped or T-shaped channels in the ball, suitable for multi-path control scenarios.

Core Types:
- L-Port: Only connects two orthogonal flow paths (e.g., A→B or A→C) for direction switching, unable to connect all three ports simultaneously (e.g., refrigerant flow switching in cooling systems).
- T-Port: Can connect all three ports to enable diversion (one inlet, two outlets) or confluence (two inlets, one outlet) (e.g., chemical batching mixing, food material distribution).

API 608 ASME B16.34 CE Certified DN15-DN100 PN10-PN25 SS304/316 Forged 3-Way Ball Valve

TIANYU’s API 608-certified 3-way ball valve delivers versatile, hygienic flow control for food, pharmaceutical, and industrial sectors. Forged SS304/316 construction, clamp connection, and L/T-port options enable diversion, confluence, and mixing. Customize it: opt for SS316 (corrosion resistance), metal seats (high temperature), electric actuation (remote control), or larger DN (up to DN100). Tailored to your media, pressure, and flow needs, it balances flexibility, durability, and compliance—your trusted solution for complex fluid management.

DN100 PN16 Explosion Proof 2 Way Electric Ball Valve Stainless Steel Rotary Ball Valve

DN100 PN16 explosion-proof 2-way electric ball valve, with stainless steel/WCB body, flanged connections, and dual seals, ensures safe flow control for gas, LPG, and steam. It features EXD IIB T4 certification, wide voltage compatibility, and 1M+ cycle life, suiting hazardous/industrial sectors. Customizable in size (DN15–DN300), seal type (PTFE/metal), voltage (AC/DC), and explosion-proof rating (ATEX/IECEx) to meet specific application needs.

DN50 Class1500LB 4-Way Flange Ball Valve Stainless Steel F316L Casting for Industrial Use with Pneumatic Actuator

TIANYUDN50 Class1500LB 4-Way Flange Ball Valve Stainless Steel F316L Casting for Industrial Use with Pneumatic Actuator Handles corrosive media, offers multi-path flow control, ideal for chemical, offshore, and pharmaceutical industries.Customize with: larger sizes (DN200+), metal seats for 300℃+ media, explosion-proof actuators, sanitary polish, or NACE MR0175 compliance for sour service. Tailored to your media and system needs.

DN80 PN16 Multi Port 4 Way Ball Valve Stainless Steel 304/316 Manual Flange Four-way Ball Valve

TIANYU DN80 PN16 Multi Port 4 Way Ball Valve Stainless Steel 304/316 Manual Flange Four-way Ball Valve. Offers versatile flow control, corrosion resistance, and reliable manual operation for industrial systems.Customize with: 316L for extreme corrosion, metal seats for high temps, extended handles for tight spaces, or sanitary polish for food applications. Tailored to your media, pressure, and flow needs.

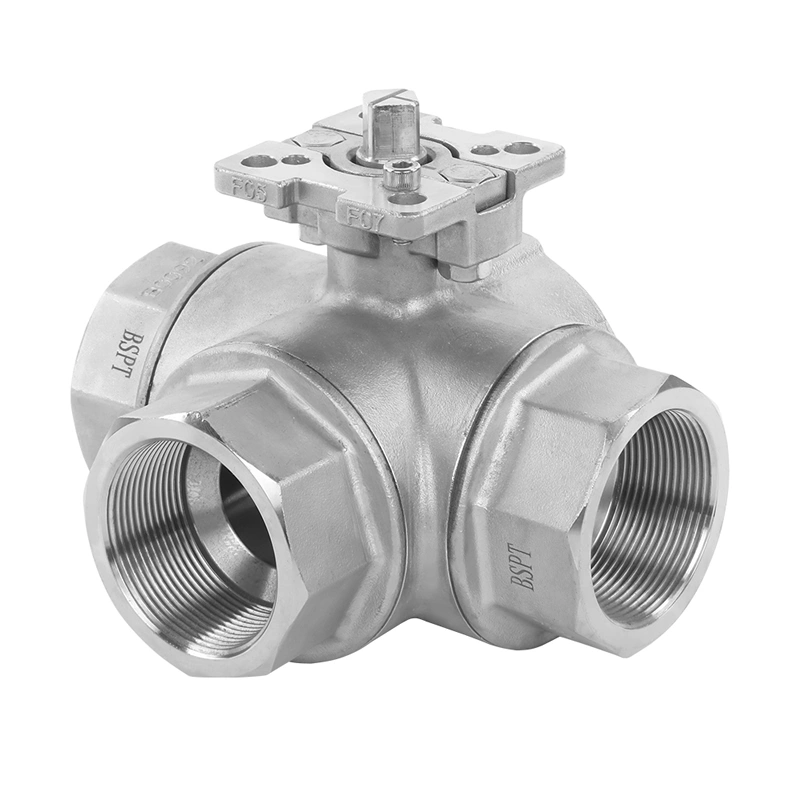

DN80 PN16 Electric 3-Way Threaded Ball Valve for Gas Media Customizable 3-Way Ball Valves

TIANYU DN80 PN16 electric 3-way threaded ball valve: 3” size, 1.6MPa, 304/316 stainless steel, gas-tight sealing. Ideal for natural gas, industrial gases—combines 3-way diversion/convergence, electric control, and corrosion resistance.Customize with: 316L for extreme corrosion

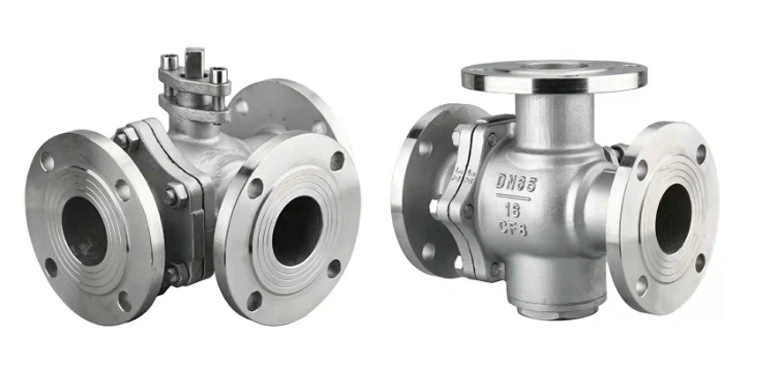

Electric Stainless Steel 3-Way Flange Ball Valve Electric Actuator Thread V Style Ball Valve

Electric Stainless Steel 3-way flange and V-style threaded ball valves offer versatile, automated flow control. Three-way ball valves models handle diversion/mixing; V-style provides precise throttling. Durable, corrosion-resistant, ideal for diverse industries.Customize with 316L for extreme corrosion, metal seats for high temps, explosion-proof actuators, or custom V-notch angles. Tailored to your media, pressure, and control needs.

3-way ball valves excel in flexible multi-path fluid control for industries.

3-Way Ball Valves Typical Application Scenarios

Chemical and Pharmaceutical Industries
Food and Beverage Industry
Heating, Ventilation, and Air Conditioning (HVAC)

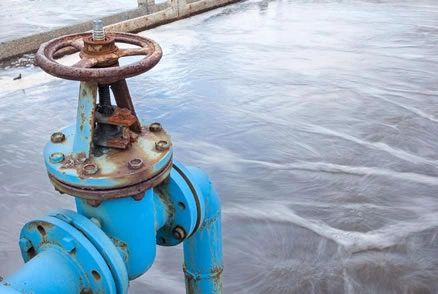

Water Treatment and Irrigation

Core features of the three-way ball valve

3-way ball valves Features:
- Compact structure, small size, and easy installation;
- Quick 90° rotation for flow path switching, ideal for emergency operations;
- Reliable sealing (O-ring/V-ring/metal hard seal) meeting ISO leakage standards, suitable for high-purity applications;
- Diverse body materials (stainless steel/brass/PVC) with wear-resistant ball surfaces, adapting to various media.

Related News

A comprehensive guide to understanding the symbols of different types of valves

I. Introduction In the global industrial sector, valves are critical components for controlling fluid flow, pressure, and direction in piping systems across oil & gas, petrochemical, power generation, water treatment, and municipal engineering. As the “gatekeepers” of industrial fluid control, valves come in diverse types and configurations, but communicating their specifications efficiently requires a standardized […]

February 2, 2026

V-Port Ball Valves: Precision Flow Control, Wear Resistance, and Reliability for Mining Slurry Systems

I. Introduction: The Critical Role of V-Port Ball Valves in Mining Slurry Operations Mining operations—from copper and iron ore extraction to coal and mineral processing—rely heavily on slurry systems to transport abrasive, high-density mixtures of solids and liquids. These slurries, composed of crushed ore, water, and often corrosive chemicals (e.g., flotation reagents, leaching acids), present […]

January 22, 2026

High-Purity Electropolished Ball Valves (Ra ≤ 0.4 μm): Design, Performance, and Applications for Critical Fluid Systems

TIANYU’s custom high-purity electropolished ball valves (Ra ≤ 0.4 μm) deliver uncompromising purity and performance for pharmaceutical, semiconductor, and chemical applications. Engineered with 316L/316Ti/Hastelloy materials and PTFE/PEEK/metal seals, they meet FDA, USP, and SEMI standards, with metal ion leaching ≤ 0.1 ppb and particle counts ≤ 10 particles/mL. Full-port designs cut energy use by 40%, while CIP/SIP compatibility reduces cleaning time by 20%. Backed by ISO 9001 certification, 100% Ra testing, and 24/7 global support, TIANYU’s valves ensure regulatory compliance, process efficiency, and product quality for critical fluid systems.

January 15, 2026

Ring in 2026: TIANYU Industrial Valves – Celebrating 2025’s Success, Forging 2026’s Excellence

As the final notes of 2025 fade and the dawn of 2026 breaks, the industrial sector reflects on a year of resilience, innovation, and collaborative growth—while setting sights on new horizons of efficiency and reliability. For TIANYU, a leading China-based manufacturer and supplier of industrial valves, 2025 was a year of remarkable milestones: strengthening partnerships […]

January 1, 2026

Actuated Valves: Working Principles, Types, and Industrial Applications for Optimal Process Control

I. Introduction: The Critical Role of Actuated Valves in Modern Industrial Processes In the landscape of industrial process control, valves serve as the “gatekeepers” of fluid and gas flow, regulating pressure, volume, and direction with precision. While manual valves rely on human intervention, actuated valves—equipped with automated driving mechanisms—have become indispensable in large-scale, high-precision, or […]

December 27, 2025

Fire-Proof API 609 Butterfly Valves with Graphite Seals

I. Introduction Butterfly valves have emerged as cornerstone components in industrial fluid control systems, celebrated for their compact footprint, lightweight construction, and exceptional flow regulation efficiency. Among these, API 609 butterfly valves represent the gold standard for critical industrial applications, defined by the American Petroleum Institute (API) Standard 609—an exhaustive specification governing design, manufacturing, and […]

December 19, 2025

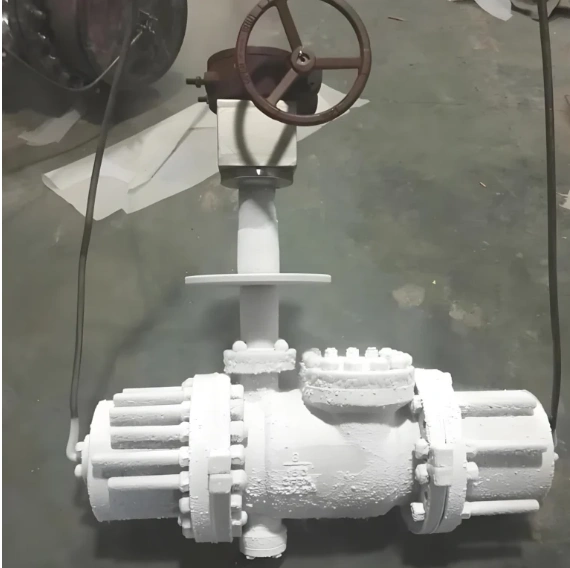

Excelling in Harsh Conditions, Leading the Industry with High-Performance Valves for Stable Operation
