Forged Steel Full Bore Socket Weld 1 IN 150LB Floating Ball Valve

Product Description:

Nominal Diameter: 1”
Bore: Full Bore
Nominal Pressure: 150LB
Material :F304
Operation: Lever
Design Standard: API 6D
Test/Inspection: API598
End Connection: Socket Weld
Socket Weld standard: ASME B16.11

Share this page:

Related Products

High Quality Flange Floating Ball Valve WCB Flange Ball Valve CF8 Stainless Steel Flange Floating Ball Valve

TIANYU flange floating ball valve delivers high-reliability fluid control through floating ball sealing, full-temperature material systems, and precision manufacturing. With deep customization and comprehensive services, it precisely meets demanding industrial needs, enabling efficient and safe operations.

High Pressure Stainless Steel Flange Double Block and Bleed Valve DBB Flange Drain Valves

TIANYU Industrial stainless steel DDB valve delivers reliable, cost-effective Industrial stainless steel DDB valve, TIANYU high-pressure ball valve, PN32.0MPa double block bleed valve, ISO-standard flange valve, stainless steel flange drain valve. solutions through precision manufacturing and safety-first design, enabling safe and efficient high-pressure pipeline operations worldwide.

High Quality Low Temperature Cryogenic Floating Ball Valve

TIANYU’s low-temperature metal side-entry floating ball valve delivers core advantages of "cryogenic resistance, easy maintenance, and high sealing," providing professional fluid control solutions for global cryogenic industries.

Forged Steel Alloy 20 Full Bore DN25 PN16 NPT Floating Ball Valve

The pneumatic valve can be used to control air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media and other types of fluid flow, can better serve various conditions

Description

Specification

Valve Size	1“–10”
Pressure Class	150LB–600LB, PN10–PN64
Materials	WCB, A105, LF2, F316, WC6, WC9, WCC, CF8, CF3, CF3M, CF8M, 4A, 5A
Design and Manufacturing Standards	API 6D， API 608，ASME B16.34，ISO 17292，BS5351，
Face to Face Standards	ASME B16.10, BS 558, BS12982, ISO 5752
Flange Dimension Standards	ASME B 16.5, ASME B16.47, ASME B16.25, ASME B16.11, BS 12627
Pressure Test Standards	API598 API 6D BS12569
Fire Safety Test Standards	API 6FA API 607
Quality/Product Certifications	ISO9001, ISO14001, ISO18001
Fugitive Emissions	ISO 15848-1, API 622
NACE	NACE MR 0175
Valve operator options	Handwheel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator.
Shutoff Class	API 598 (Zero Leakage), API 6D
Bore	Full Bore, Reduced Bore
Process Connection Types	SW, NPT, BW , RF, RTJ

Product Overview

The pneumatic valve can obtain higher speed, has explosion-proof performance, and meets more complex working conditions
The original pneumatic valve has the advantages of simple structure, convenient maintenance, economy and long service life
The pneumatic valve transmission overload will not be dangerous, to avoid the occurrence of accidents, so that the work is more safe and environmentally friendly
The pneumatic valve can be used to control air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media and other types of fluid flow, and can better serve various conditions
TIANYU pneumatic valve can provide various brands of actuators and accessories to meet the requirements of customers and working conditions at all levels. The diversity of choice is the performance of strength. At the same time, we can get the most favorable price through various channels. Reduce customer time and efficiency.
TIANYU has the most perfect installation and debugging and perfect after-sales service team. They are familiar with the performance and debugging of various brands, so that the pneumatic valves can reach the best state and solve the worries of customers.

Valve Details

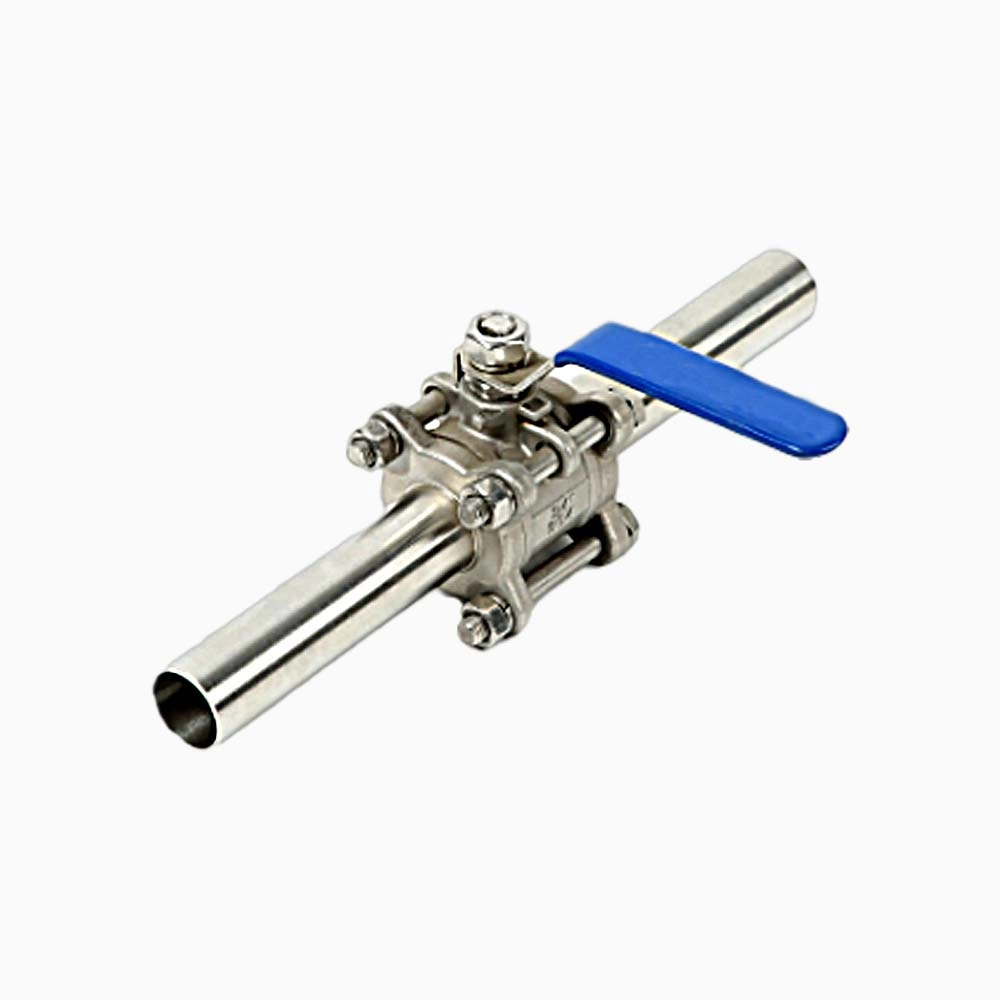

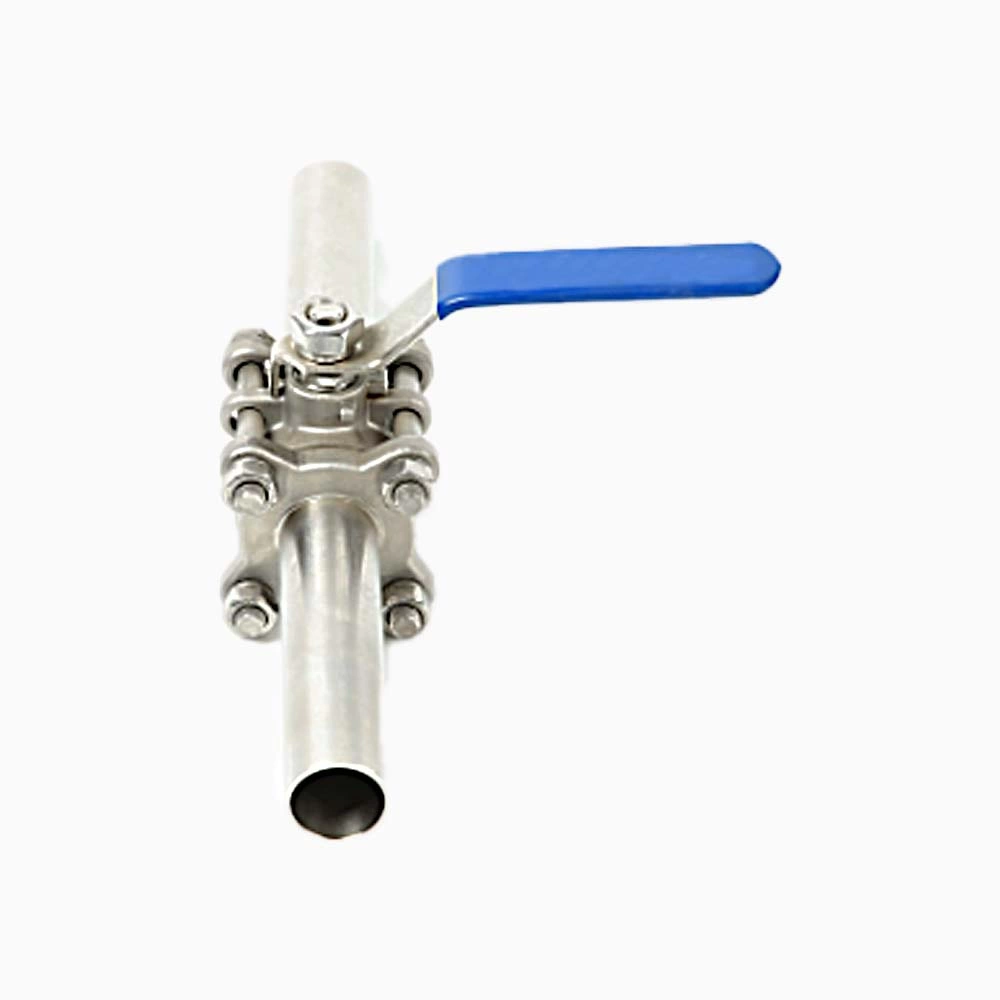

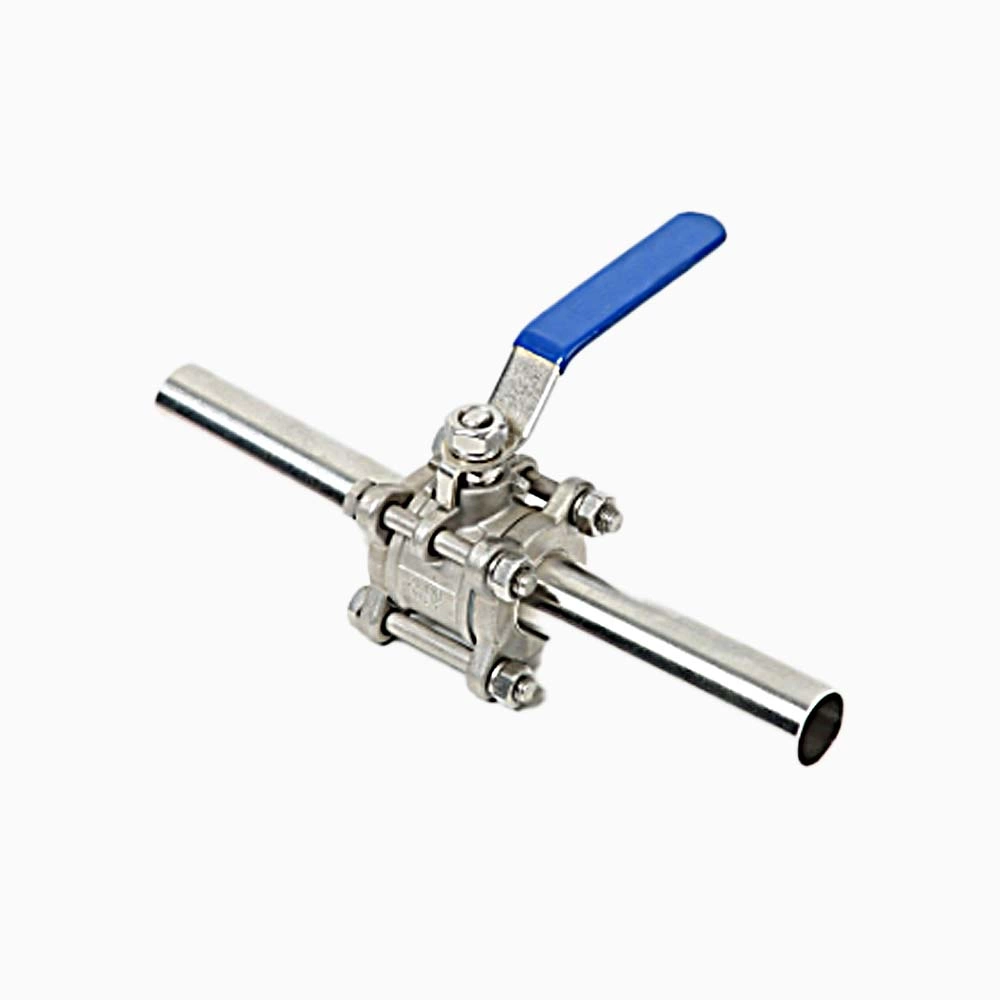

Ball valve 3-piece design
3-piece ball valve parts consist of two pipe connectors and one primary component. The pipe connectors are installed via welding or threading to the pipeline. The main body then attaches to the middle portion of these two pipe connectors.

The ball valve’s 3-pc body allows easy maintenance and replacement of easily wearable components like stems and balls. Such straightforward and low-cost care makes it highly recommended for high-wear applications.

Our Strengths

Best Quality Industrial Valve Solutions For You

QUALITY WARRANTY

A warranty of 18 months after delivery or 12 months after installation is provided by TianYu for all supplied valves.

FAST LEAD TIME

General lead time is around 8 weeks(conventional valves) with high efficient production process and regular expedition procedure.

COST-EFFECTIVE PRICE

With A quality but cost-effective supply chain, we offer client with reasonable price and low aftersales cost, to build a healthy and long term partnership.

VALUE ADDED SERVICE

From early bidding to final shipment we have a professional team standby to support client on commercial, technical, quality and transportation issues.

Industrial Applications

Petrochemical Industry

In the petrochemical industry, valves are used to control fluid flow, pressure, and prevent accidents. They are capable of enduring high temperatures and pressures in refinery environments, ensuring safe and smooth operation of processes.

Power Industry

In the power industry, valves are used to control the flow of steam, water, and oil. Globe valves and gate valves in steam pipelines ensure smooth steam transportation, while butterfly valves are commonly used to regulate flow.

Food & Beverage Industry

In the food and beverage industry, valves are used for fluid transportation and control. These valves need to meet sanitary standards to ensure the safety and quality of food products.

Environmental Protection Sector

In the environmental protection sector, valves are used in wastewater treatment systems to control the discharge of sewage, ensuring the effectiveness of wastewater treatment. They play an important role in environmental protection and sustainable development.
