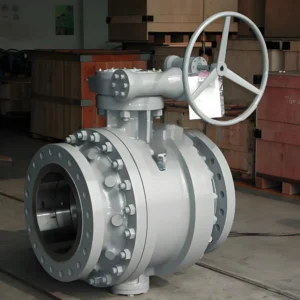

High Pressure Industrial Ball Valve | Stainless Steel, Fire-Safe, Zero Leakage for Chemical & Petrochemical

I. Executive Summary

TIANYU, a leading industrial valve manufacturer and integrated industrial and trade enterprise, specializes in the R&D, production, and sales of high-performance industrial valves, with a state-of-the-art manufacturing facility spanning 8,500 square meters and 5 efficient production lines. The High Pressure Industrial Ball Valve is engineered to deliver exceptional performance in rigorous chemical and petrochemical environments, integrating stainless steel construction, fire-safe design, and zero-leakage sealing technology. Compliant with API, ASME, ISO, and CE standards, this valve ensures reliable flow control, enhanced safety, and long-term durability for critical fluid handling processes. Designed for high-pressure (up to Class 2500/PN420), corrosive, and flammable media, it addresses the most demanding operational challenges in chemical processing, oil refining, and petrochemical production.

II. Product Overview

A. Definition and Core Function

B. Key Design Standards and Certifications

• Design Standards: API 6D, ASME B16.34, ISO 17292, DIN 3357, GB/T 12237
• Fire Safety Certification: API 607, ISO 10497 (fire-safe tested)
• Material Standards: ASTM A182, A351, A240; EN 10088
• Pressure-Temperature Ratings: ASME B16.34, API 598
• Quality Management: ISO 9001, CE, EAC, MSS-SP-25

  These certifications validate the valve’s structural integrity, fire resistance, and zero-leakage performance, ensuring compliance with industry regulations and customer quality requirements.

C. Primary Applications

• Chemical Industry: Handling corrosive acids, alkalis, solvents, and toxic media in reaction vessels, distillation columns, and transfer pipelines
• Petrochemical Industry: Refining processes, crude oil transportation, natural gas processing, and LPG storage systems
• Oil and Gas: High-pressure pipelines, wellhead control, and offshore platforms
• Power Generation: High-pressure steam systems, boiler feedwater, and chemical injection lines
• Pharmaceutical and Food Processing: Sanitary-grade applications requiring corrosion resistance and leak tightnessTianyu Valves
• Water Treatment: Desalination plants, high-pressure reverse osmosis systems, and chemical dosing linesTianyu Valves

III. Structural Design and Components

A. Valve Body

• Materials: Premium stainless steel (304/CF8, 316/CF8M, 316L/CF3M), duplex stainless steel (2205, 2507), and nickel-based alloys (Hastelloy, Inconel) for extreme corrosion resistance. Forged construction eliminates casting defects (porosity, sand holes), ensuring reliability under pressures up to Class 2500 (420 bar).
• Design Features:
  • Full-bore or reduced-bore options to minimize pressure drop
  • Reinforced wall thickness at high-stress areas (flange connections, stem bore)
  • Integral flange connections (ANSI B16.5, DIN 2501) for secure piping integration
  • Pressure relief cavity design to prevent overpressure buildup in the valve body

B. Ball and Stem Assembly

• Ball: Precision-machined solid or hollow spherical component with a polished sealing surface (Ra ≤ 0.8 μm) for optimal seat contact. Stainless steel balls feature hard chrome or Stellite coatings for enhanced wear and corrosion resistance.
• Stem: Blowout-proof design with a multi-seal system to prevent stem leakage under high pressure. Constructed from high-strength stainless steel (AISI 316, 4140) with anti-static grounding to dissipate static electricity in flammable media applications. The stem is connected to the ball via a spline or pin joint, ensuring reliable torque transmission during operation.

C. Sealing System (Zero Leakage Technology)

• Primary Seals:
  • Soft Seats: PTFE, PEEK, or Viton for ambient to moderate temperatures (-40°C to 260°C), providing excellent chemical resistance and low friction.
  • Metal Seats: Stainless steel, Stellite, or tungsten carbide-faced seats for high-temperature (up to 550°C) and high-pressure applications, ensuring metal-to-metal sealing when soft seals fail.
• Secondary Seals:
  • Stem Seals: Triple-packing design (graphite, PTFE, and spring-loaded lip seals) to prevent stem leakage under pressure cycling.
  • Body Gaskets: Spiral-wound graphite or metal gaskets for flange joint sealing, compliant with API 601.
• Sealing Performance: Leakage rate ≤ 1×10⁻⁹ mbar·L/s (bubble-tight), exceeding API 598 zero-leakage requirements.

D. Fire-Safe Design

• Dual Sealing Backup: In the event of a fire, soft seats melt, and the metal-to-metal hard seal between the ball and seat activates to prevent catastrophic leakage.
• Anti-Static System: Conductive springs and bearings connect the stem, ball, and valve body, channeling static electricity to ground to prevent spark ignition of flammable vapors.
• High-Temperature Resistance: All fire-exposed components (body, stem, seals) are constructed from fire-rated materials, maintaining structural integrity at temperatures up to 850°C.
• Pressure Relief: Integrated cavity pressure relief prevents valve body rupture from thermal expansion of trapped media during fires.

E. Actuation Options

• Manual Operation: Lever or gear operator (for high-torque, large-size valves) with a 90° rotation for full open/close.
• Pneumatic Actuation: Double-acting or spring-return actuators with positioners for precise flow control and remote operation.
• Electric Actuation: Explosion-proof electric actuators (Ex d IIB T4) for hazardous areas, with motorized 90° rotation and limit switchesTianyu Valves.
• Hydraulic Actuation: High-pressure hydraulic actuators for extreme torque requirements (Class 2500, DN300+).


IV. Key Performance Specifications

A. Pressure Ratings

• Class Ratings: Class 150 (PN16) to Class 2500 (PN420)
• Maximum Working Pressure: 420 bar (6000 PSI) at ambient temperature
• Pressure Testing: Hydrostatic shell test at 1.5× rated pressure; seat leakage test at 1.1× rated pressure (API 598)

B. Temperature Range

• Standard Range: -40°C to +550°C (-40°F to +1022°F)
• Cryogenic Service: Down to -196°C (liquid nitrogen) with extended bonnet design
• High-Temperature Service: Up to 550°C with metal-seated and graphite-sealed components

C. Size Range

• NPS: 1/2″ to 48″ (DN15 to DN1200)
• Connection Types: Flanged (ANSI B16.5, DIN 2501), butt-weld (ASME B16.25), socket-weld, and threaded (NPT/BSP)

D. Flow Characteristics

• Flow Coefficient (Cv): Full-bore design provides maximum Cv values (e.g., DN100: Cv = 400), minimizing pressure drop and energy consumption.
• Flow Direction: Bidirectional flow capability for installation flexibility.
• Turndown Ratio: Up to 100:1 for precise flow regulation in modulating applications.

E. Material Compatibility

• Acids: Hydrochloric, sulfuric, nitric (316L for low concentrations)
• Alkalis: Sodium hydroxide, potassium hydroxide
• Solvents: Methanol, ethanol, benzene, toluene
• Petrochemicals: Crude oil, gasoline, diesel, natural gas, LPG
• Water: Deionized, brackish, and seawater (duplex steel for marine environments)Tianyu Valves

V. Material Selection and Corrosion Resistance

A. Body and Trim Materials

• Stainless Steel 304/CF8: General-purpose corrosion resistance, suitable for mild acids, water, and food-grade applications.
• Stainless Steel 316/CF8M: Enhanced resistance to chloride ions and sulfur compounds, ideal for chemical and petrochemical processes.
• Stainless Steel 316L/CF3M: Low-carbon variant of 316, preventing intergranular corrosion in welded components.
• Duplex Stainless Steel (2205/2507): High strength and superior resistance to pitting and crevice corrosion in chloride-rich environments (offshore, desalination).
• Nickel-Based Alloys (Hastelloy C-276, Inconel 625): Exceptional resistance to severe corrosion (high-concentration acids, oxidizing media) in extreme chemical processes.

B. Corrosion Protection Technologies

• Passivation: Stainless steel components undergo chemical passivation to form a protective chromium oxide layer, enhancing corrosion resistance.
• Coatings: Fusion-bonded epoxy (FBE) or PTFE coatings for external surfaces, protecting against atmospheric corrosion and chemical splashesTianyu Valves.
• Hard Facing: Stellite or tungsten carbide coatings on ball and seat sealing surfaces, improving wear resistance and preventing galling in high-pressure cycling.

VI. Zero Leakage and Fire-Safe Performance Validation

A. Zero Leakage Testing

• Seat Leakage Test: Performed at 1.1× rated pressure with nitrogen or water; leakage rate ≤ 1×10⁻⁹ mbar·L/s (API 598 zero-leakage standard).
• Stem Leakage Test: Pressurized to full rated pressure; no detectable leakage via soap bubble or helium mass spectrometer testing.
• Body Joint Leakage Test: Flange and body seal joints tested at 1.5× rated pressure; no leakage observed.

B. Fire-Safe Testing (API 607)

• Test Conditions: Exposed to 750°C–850°C flame for 30 minutes, with internal pressure maintained at 50% of rated pressure.
• Performance Criteria:
  • No external leakage exceeding 450 mL/min during the fire.
  • No catastrophic failure (body rupture, stem ejection).
  • Residual seat leakage ≤ 100 mL/min after fire extinguishment.
• Certification: All fire-safe valves are certified by authorized third-party laboratories, with test reports available for customer review.

VII. Advantages for Chemical and Petrochemical Applications

A. Uncompromising Safety

• Zero Leakage: Eliminates hazardous media leakage, preventing environmental contamination, equipment damage, and personnel injury.
• Fire-Safe Design: Ensures safe shutdown and leak containment during fire events, critical for facilities handling flammable chemicals and hydrocarbons.
• Anti-Static System: Prevents spark ignition of flammable vapors in explosive atmospheres (ATEX Zone 0/1/2).
• Blowout-Proof Stem: Prevents stem ejection under high pressure, a common failure point in inferior valves.

B. Exceptional Durability and Reliability

• High-Pressure Construction: Forged stainless steel body and trim withstand pressure cycling and mechanical stress, extending service life.
• Corrosion Resistance: Premium stainless steel and alloy materials resist chemical corrosion, reducing maintenance and replacement costs.
• Low Maintenance: Quarter-turn operation minimizes wear on seals and moving parts; modular design allows for easy in-line repair.
• Long Service Life: Designed for 20+ years of continuous operation under rated conditions, with minimal downtimeTianyu Valves.

C. Operational Efficiency

• Full-Bore Flow: Minimal pressure drop reduces energy consumption and pump workload, optimizing system efficiency.
• Fast Operation: 90° quarter-turn actuation enables quick opening/closing (≤ 2 seconds for DN100), critical for emergency shutdown (ESD) systems.
• Precise Flow Control: Modulating actuation options provide accurate flow regulation for process optimization.
• Automation Compatibility: Seamless integration with pneumatic, electric, and hydraulic actuators for remote monitoring and control.

D. Compliance and Global Acceptance

• International Certifications: API, ASME, ISO, and CE certifications ensure compliance with global industry standards, facilitating international project approvals.
• Wide Material Range: Compatible with diverse chemical and petrochemical media, supporting process standardization across facilities.
• Global Support: TIANYU’s worldwide distribution network provides timely technical support, spare parts, and after-sales service.

VIII. Installation, Operation, and Maintenance Guidelines

A. Installation

• Pre-Installation Inspection: Verify valve cleanliness, remove protective covers, and check for shipping damage.
• Piping Alignment: Ensure proper flange alignment and gasket installation to avoid flange stress and leakage.
• Orientation: Install with stem vertical or horizontal (avoid inverted stem for liquid media) to prevent sediment accumulation in the stem seal area.
• Actuator Mounting: Secure actuators per manufacturer instructions, ensuring proper torque settings and limit switch calibration.

B. Operation

• Manual Operation: Use the lever or gear operator to rotate the stem 90°; do not use excessive force to avoid seat damage.
• Automated Operation: Follow actuator manufacturer guidelines for remote operation, ensuring proper pressure and electrical supply.
• Emergency Shutdown (ESD): Valves can be integrated into ESD systems for automatic shutdown in case of process anomalies.

C. Maintenance

• Regular Inspection: Periodically check for external leakage, stem seal wear, and actuator functionality.
• Seal Replacement: Replace soft seats and stem packing every 2–3 years (or as needed based on leakage) using TIANYU genuine spare parts.
• Lubrication: Apply high-temperature, chemical-resistant lubricant to stem threads and actuator gears annually.
• Testing: Conduct annual hydrostatic and seat leakage tests to ensure ongoing compliance with zero-leakage requirements.
