Comprehensive Guide to Butterfly Valve Applications

The Versatility and Vitality of Butterfly Valves in Industrial Systems

Part 1: Understanding Butterfly Valve Fundamentals

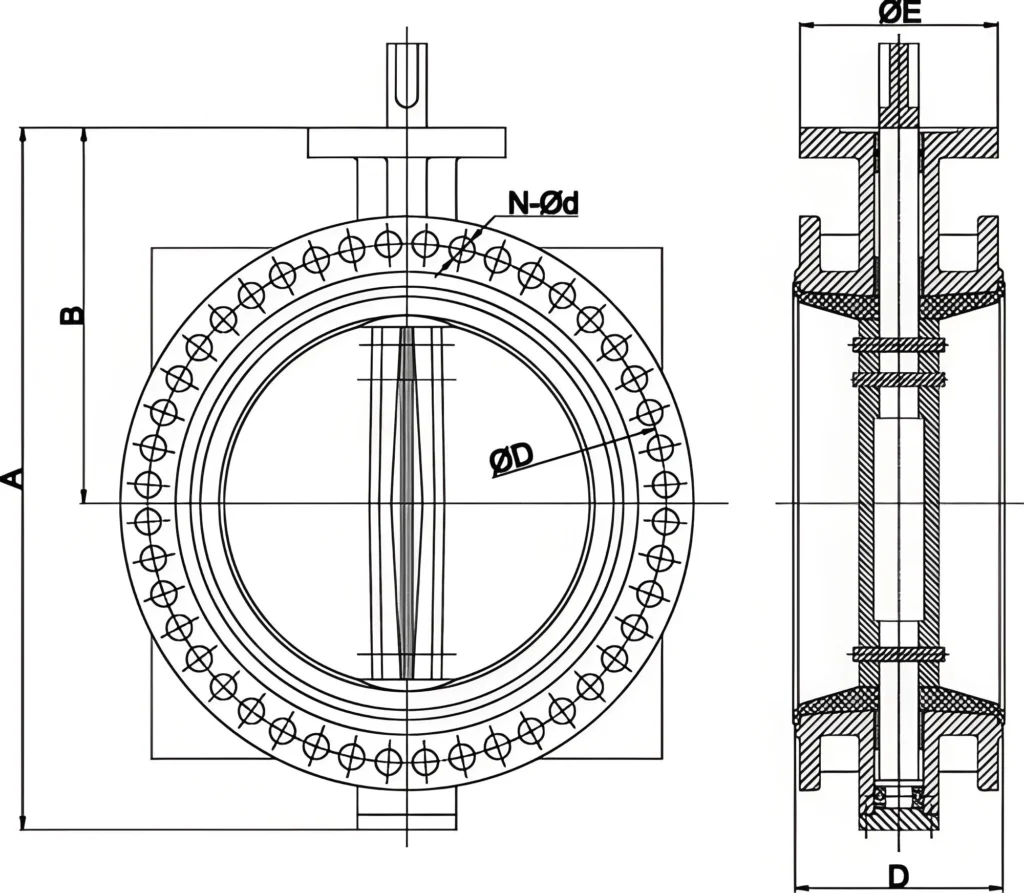

1.1 What is a Butterfly Valve?

1.2 Origins of the Name

1.3 Key Advantages

• Space-Efficient: Ideal for large-diameter pipes (up to 120 inches) due to their compact size.
• Low Torque Operation: Reduces energy consumption and wear on actuators.
• Cost-Effective: Lightweight design and minimal materials lower production and installation costs.
• Versatility: Suitable for on/off control or throttling in diverse media, from water to corrosive chemicals.

Part 2: Types of Butterfly Valves and Their Technical Differences

2.1 Zero-Offset (Concentric) Butterfly Valves

• Design: The disc and seat are concentric, with a rubber or PTFE seat providing a tight seal.
• Pressure/Temperature Rating: Up to 250 PSI and 400°F.
• Applications: Low-pressure systems like water distribution, HVAC, and non-corrosive fluid handling.
• Tianyu’s Model: Our rubber-seated butterfly valves feature epoxy-coated ductile iron bodies, compliant with AWWA C504 for waterworks.

2.2 High-Performance Double Offset Butterfly Valves

• Design: Two offsets (disc seat and bore) reduce friction, with a metal-to-metal seal for durability.
• Pressure/Temperature Rating: Up to 1,440 PSI and 1,200°F.
• Applications: Moderate-pressure environments like chemical processing, steam systems, and gas pipelines.
• Tianyu’s Innovation: Our double offset valves incorporate Hastelloy discs for resistance to acidic media, validated via FEA for structural integrity.

2.3 Triple Offset Butterfly Valves

• Design: Three offsets (radial, axial, angular) eliminate seat friction, using metal-to-metal seals for zero leakage.
• Pressure/Temperature Rating: Up to 1,480 PSI and 1,200°F, with fire-safe and low-emission designs.
• Applications: High-stakes industries like oil & gas, power generation, and cryogenic systems.
• Tianyu’s Flagship Product: Our triple offset valves meet API 607 and API 6FA standards, with customizable actuation (pneumatic, electric) for remote operation in refineries.

Part 3: Common Industrial Applications of Butterfly Valves

3.1 Oil and Gas Industry

• Use Cases:
  • Pipeline control in upstream production (wellheads, separators).
  • Refinery processes (crude oil distillation, hydrocarbon transfer).
  • Offshore platforms (ballast systems, emergency shutdown valves).
• Challenges: High pressure (up to 10,000 PSI), corrosive media (H2S, saltwater), and fire safety requirements.
• Tianyu’s Solution: Triple offset butterfly valves with Inconel seats and F51 duplex stainless steel bodies, certified to NACE MR0175 for sour gas applications.

3.2 Power Generation

• Use Cases:
  • Steam turbine bypass systems in thermal power plants.
  • Cooling water intake for nuclear reactors.
  • Bioenergy facilities (slurry handling in biomass plants).
• Challenges: Extreme temperatures (800°C+), abrasive particles, and tight shutoff requirements.
• Tianyu’s Case Study: A coal-fired power plant reduced valve maintenance costs by 60% using our triple offset valves with Stellite overlay discs, enduring 1,000+ thermal cycles annually.

3.3 Food and Beverage Processing

• Use Cases:
  • Sanitary fluid control (milk, juices, pharmaceuticals).
  • CIP (clean-in-place) systems for automated cleaning.
  • Packaging lines (paste and sauce dispensing).
• Challenges: Hygiene compliance (3A, NSF/ANSI 61), low particle retention, and frequent cleaning.
• Tianyu’s Expertise: Our food-grade butterfly valves feature electropolished 316L stainless steel bodies and FDA-compliant EPDM seats, ensuring zero product contamination.

3.4 Water and Wastewater Treatment

• Use Cases:
  • Raw water intake for municipalities.
  • Sludge handling in wastewater plants.
  • Chemical dosing systems (chlorine, coagulants).
• Challenges: Biofouling, high solids content, and corrosion from wastewater chemicals.
• Tianyu’s Design: Rubber-lined butterfly valves with ductile iron bodies, offering abrasion resistance and easy maintenance for sludge applications.

3.5 Marine and Offshore

• Use Cases:
  • Bilge and ballast water systems.
  • Fuel oil transfer in tankers.
  • Fire suppression systems (sprinkler and foam lines).
• Challenges: Saltwater corrosion, limited space, and ABS/DNV certification requirements.
• Tianyu’s Offering: Marine-grade butterfly valves with nickel-aluminum bronze discs and epoxy coatings, approved by Lloyd’s Register for offshore use.

Part 4: Tianyu Valves’ Tailored Solutions for Industry Challenges

4.1 Material Innovation for Extreme Environments

• Exotic Alloys:
  • Hastelloy C-22: Resists pitting from concentrated acids (e.g., sulfuric acid in chemical plants).
  • Monel 400: Ideal for hydrofluoric acid and high-velocity marine applications.
• Coatings:
  • Stellite 6 overlay: Increases disc hardness to HRC 55, reducing wear in abrasive slurries.
  • PTFE lining: Provides chemical inertness for pharmaceutical and semiconductor industries.

4.2 Customization and Certification

• Actuation Options:
  • Pneumatic actuators: Fast response (≤5 seconds) for emergency shutdowns.
  • Electric actuators: Precision control with 4–20 mA feedback for process automation.
• Compliance:
  • API 6D: For oil & gas pipeline valves.
  • ASME B16.5: Flanged connections for high-pressure systems.
  • ATEX: Explosion-proof designs for hazardous environments.

4.3 Rapid Prototyping and Delivery

• 72-Hour Turnaround: Custom drawings and small-batch prototypes for urgent projects (e.g., 800°C high-temperature valves for steel mills).
• Global Stock Centers: Warehousing in Houston, Rotterdam, and Singapore ensures 48-hour delivery for critical spares.

Part 5: Choosing the Right Butterfly Valve: A Strategic Guide

5.1 Key Selection Criteria

5.2 Cost vs. Lifecycle Performance

• Initial Cost:
  • Zero-offset valves: $200–$1,500 (ideal for low-risk applications).
  • Triple offset valves: $5,000–$20,000 (justified by 10+ years of maintenance-free operation in high-pressure systems).
• ROI Calculation: A chemical plant saved $220,000 over five years by upgrading to Tianyu’s triple offset valves, eliminating unplanned shutdowns caused by valve failures.

5.3 Maintenance Best Practices

• Routine Checks:
  • Visual inspection for leaks or corrosion (quarterly for industrial systems).
  • Actuator calibration (annual for automated valves).
• Lubrication: Use synthetic grease (e.g., Mobil SHC 220) for stems to reduce friction and extend cycle life to 50,000+ operations.

Conclusion: Partner with Tianyu for Industrial Fluid Control Excellence
