1. 3-Way Ball Valves: Core Components for Multi-Directional Flow Control

In industrial scenarios requiring fluid diversion, splitting, or mixing, 3-way ball valves serve as critical components due to their unique multi-port design. Available in L-type and T-type configurations, these valves enable flexible port combinations, making them indispensable in industries such as petrochemicals, food & pharmaceuticals, and new energy. This article dissects their technical principles, selection criteria, and real-world applications to provide practical insights for engineering professionals.

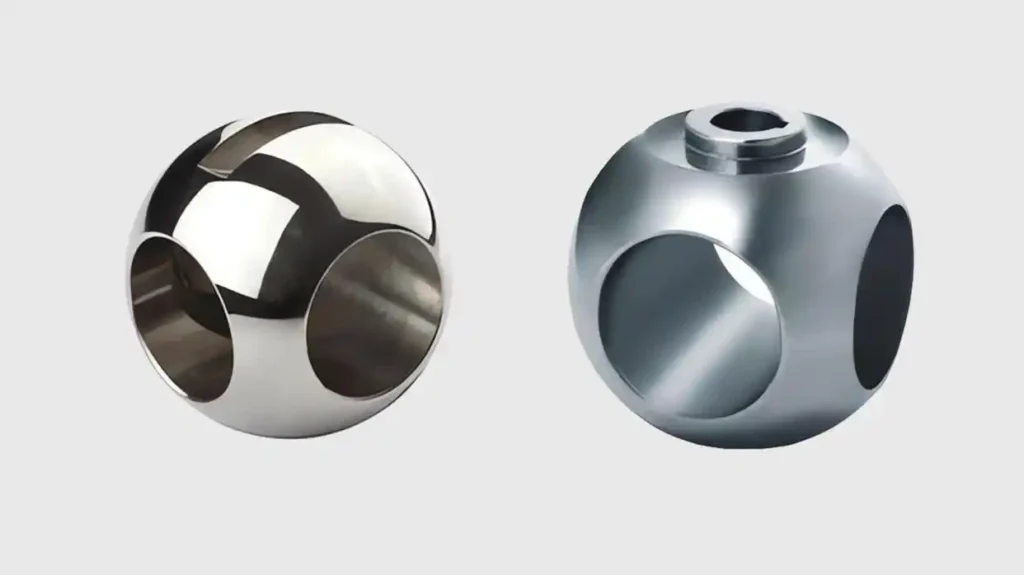

2. Key Types: Functional Differences Between L-type and T-type

2.1 L-type 3-Way Ball Valves: Precision Dual-Path Switches

2.1.1 Structure and Flow Logic

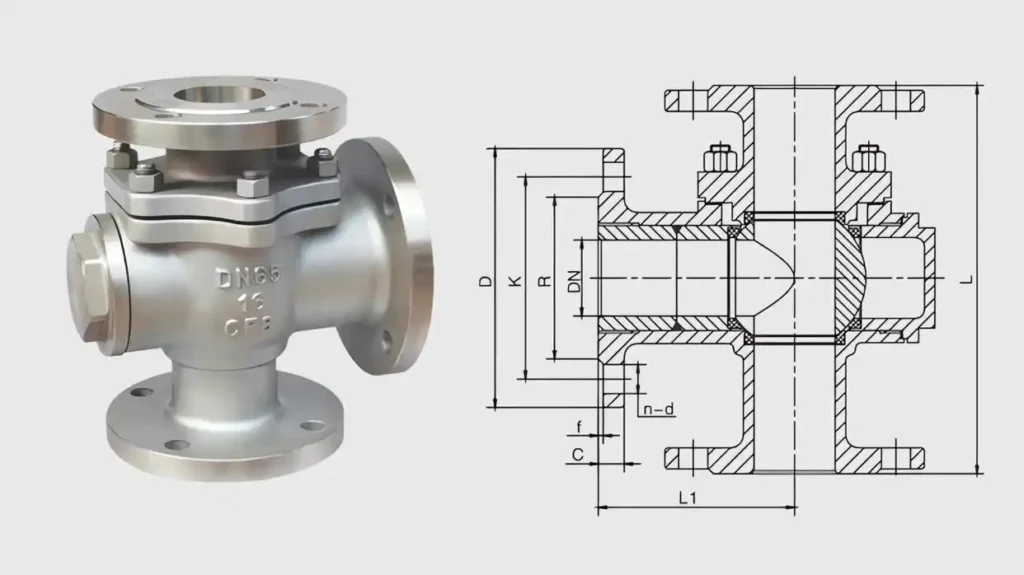

With a 90° angled core channel, L-type valves connect two ports at a time (Figure 1). A 90° rotation switches flow between Port A-B and Port A-C, with a fully closed position for isolation. Typical applications include fluid diversion in oil drilling rigs and bypass isolation in chemical pipelines.

2.1.2 Technical Advantages

High Sealing Integrity: Double-seat design achieves bubble-tight sealing (ISO 15848-1 Class A), ideal for flammable/explosive media.
High-Pressure Compatibility: Forged body models withstand up to PN100, suitable for harsh environments like wellhead equipment.

2.2 T-type 3-Way Ball Valves: Versatile Flow Regulators

2.2.1 Structure and Flow Logic

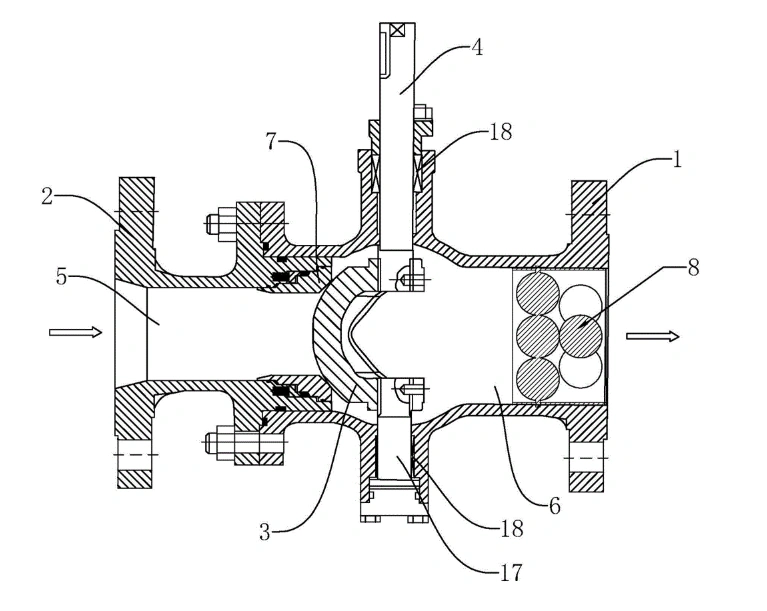

Featuring a “T”-shaped core channel, T-type valves support three flow modes: one-in-two-out (splitting), two-in-one-out (mixing), and straight-through (Figure 2). This flexibility makes them suitable for food ingredient mixing and heat network flow regulation.

2.2.2 Technical Advantages

Low Flow Resistance: Straight-through paths exhibit a pressure drop only 1.2x that of equivalent pipelines, superior to similar valves.
Flow Adjustability: Select models allow stepless core angle adjustment (0°-90°) for precise dosing in chemical reactors.

3. Critical Technical Elements: Actuation, Sealing, and Materials

3.1 Actuation Methods

Manual Actuation: Suitable for low-pressure applications (DN≤80), with limit stops to prevent over-rotation.
Electric Actuators: Enable remote control with ±0.5% positioning accuracy; explosion-proof models (Ex IIB T4) are ideal for oil & gas fields.
Pneumatic Actuators: Offer <1-second response times; single-acting cylinders suit emergency shutdowns, requiring 5μm-grade air filtration.

3.2 Sealing System Design

Seat Materials:
- Soft Seals (PTFE): Resist -200°C to 260°C and aggressive media, with leakage rates ≤0.1×DN mm³/s.
- Hard Seals (WC-Co Alloy): Withstand 600°C high temperatures, featuring Ra≤0.2μm surface roughness for steam applications.
Stem Sealing: Packing seals (standard duty) or bellows seals (zero-leakage for toxic media).

3.3 Material Selection Principles

Media Type	Recommended Material	Surface Treatment	Industry Standards
Corrosive Media	316L Stainless Steel/PTFE Lining	Electropolishing	NACE MR0175
Food-Grade Media	316L Stainless Steel	Mirror Polishing (Ra≤0.8μm)	FDA 21 CFR 177.2600
High-Temp Steam	A182 F91 Alloy Steel	Stellite Overlay	ASME BPVC Section VIII

4. Industrial Applications and Selection Strategies

4.1 Petrochemical Industry: High-Pressure Safety Isolation (L-type Priority)

4.1.1 Crude Oil Fractionation Control

Conditions: 6.4MPa, 350°C, sulfur-containing media
Solution: L-type DBB (Double Block and Bleed) valve with Inconel 625 overlay on forged steel body, paired with Ex d IIC T6 pneumatic actuator, compliant with API 6D and NACE sulfide resistance standards.

4.1.2 Storage Tank Zone Switching

Key Design: L-type valve with mechanical interlock to ensure single-tank connection; seat hardness ≥HRC60, tested leak-free via bubble method.

4.2 Food & Pharmaceutical Industry: Hygiene-Critical Applications (T-type Priority)

4.2.1 Dairy Aseptic Production Line

Standards: 3A 74-06, EU 10/2011
Solution: T-type quick-connect valve (316L stainless steel, Ra≤0.8μm polish), food-grade EPDM seals, and dead-leg-free flow path for CIP cleaning.

4.2.2 Pharmaceutical Sterilization Scenarios

Configuration: Fully PTFE-coated core for 134°C SIP sterilization; actuator with sterile air filtration.

4.3 New Energy Industry: Corrosion and Wear Resistance

4.3.1 Lithium Battery Electrolyte Transfer

Media: HF-containing carbonates, -40°C to 60°C
Solution: PTFE-lined (3mm) L-type valve with IP66 explosion-proof electric actuator; pre-delivery immersion test ensures swelling rate ≤0.1%.

4.3.2 Photovoltaic Silicon Material Conveyance

Design Features: Large-radius core channels (R≥5mm) and tungsten carbide overlay on seats to reduce particle jamming, extending service life to 5+ years.

5. Five-Step Selection Framework

5.1 Define Functional Priorities

Choose L-type for isolation/switching (double-seat seals); T-type for mixing/splitting (three-port connectivity). Vacuum applications require L-type with vacuum compensation.

5.2 Match Operating Parameters

Pressure/Temperature Ranges:
- Standard: PN≤16, -20°C~200°C; High-Temp: PN≤40, -50°C~500°C; High-Pressure: PN≤160, -100°C~300°C.

5.3 Adhere to Industry Standards

Petrochemical: API 607 (fire resistance), API 6D; Pharmaceutical: ASME BPE, FDA; Environmental: EPA Method 21 (zero leakage).

5.4 Evaluate Supplier Capabilities

Key Verifications: Seat surface roughness (soft seals Ra≤0.4μm, hard seals Ra≤0.2μm); hydrostatic testing at 1.5x rated pressure for 15+ minutes.

5.5 Life Cycle Cost Analysis

Initial Cost: T-type valves are 20-30% cheaper than L-type; high-pressure L-type costs 50% more due to complex structures.
Maintenance Cost: Soft seals last 2-3 years; hard seals endure 8-10 years (media-dependent).

6. Maintenance Best Practices

6.1 Preventive Maintenance Schedule

Maintenance Item	Daily Check	Quarterly Maintenance	Annual Overhaul
Manual Operation	Torque inspection	Lubricant replenishment	Limit switch calibration
Seal Leakage	Bubble testing	Pressure decay test (≤5%/h)	Seat lapping/replacement
Actuator Performance	Signal feedback check	Pneumatic airtightness test	Electrical insulation test
Media Residue	Visual inspection	Chemical cleaning (if needed)	Non-destructive testing

6.2 Troubleshooting Guide

Issue	Temporary Fix	Permanent Solution
Internal Leakage	Reverse flow flushing	Install 50μm pipeline filter
External Leakage	Tighten packing gland	Replace aged packing
Actuator Stall	Apply temporary lubricant	Check core coaxiality (≤0.05mm)

7. Industry Trends and Innovations

7.1 Smart Upgrades

IoT Integration: Real-time monitoring of core position and seal status via DCS-connected sensors (e.g., Emerson Fisher 3582 series).
Digital Twin Technology: Simulates valve performance under extreme conditions (e.g., -196°C liquid hydrogen) for design optimization.

7.2 Material and Process Innovations

Nano Coatings: DLC (diamond-like carbon) coatings enhance seat hardness to 2000HV, doubling service life with 0.08 friction coefficient.
3D Printing: Stainless steel core with optimized flow paths reduces pressure drop by 15% for complex applications.

7.3 Safety and Environmental Design

Zero-Leak Certification: Bellows seals gain traction to meet API 641 VOC control requirements.
Fireproof Structures: Graphite composite seals withstand 800°C for 30+ minutes, compliant with API 607 latest edition.

8. Precision Selection Drives Flow Control Efficiency

Selecting 3-way ball valves requires balancing functional needs, operating parameters, and industry standards. L-type excels in precision isolation, while T-type offers mixing/splitting versatility. Material and seal designs must align with media characteristics. By following standardized selection processes and embracing technological advancements, engineers can minimize failure risks and enhance system reliability. For critical applications, validate designs against international standards (e.g., ASME B16.34) and real-world case studies to ensure each valve performs as a reliable node in flow control systems.
