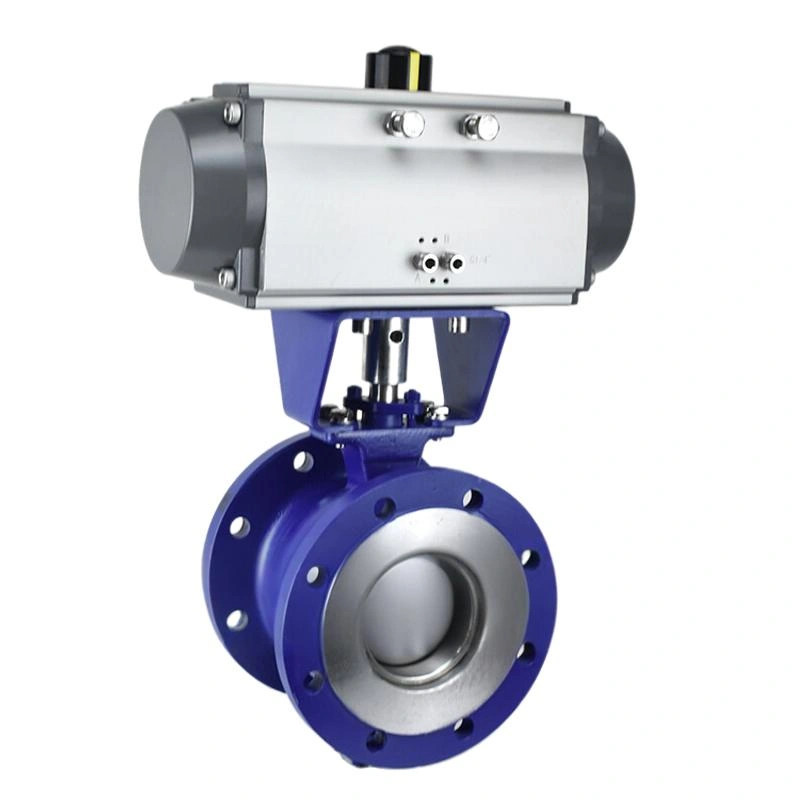

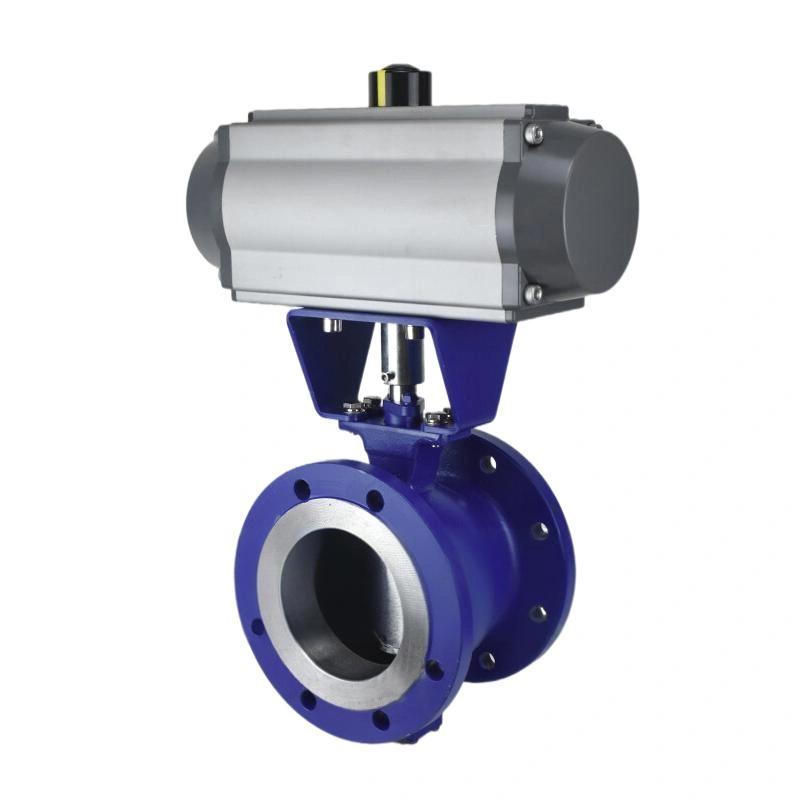

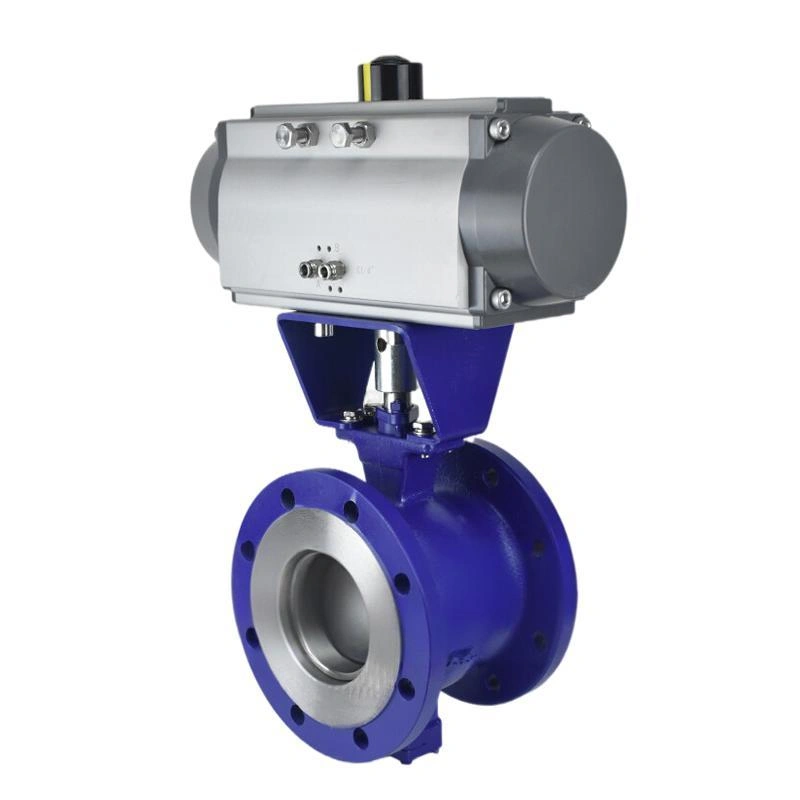

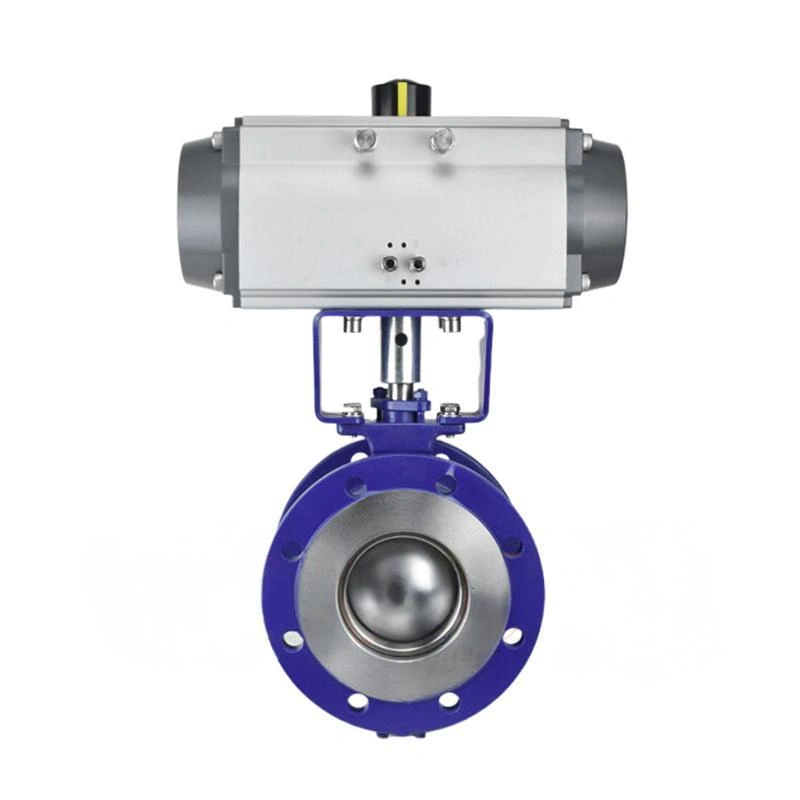

High Performance Standard Carbon Steel WCB Pneumatic Flanged V Type Ball Valve

Port Size:2in-20in,DN50-DN500

structure:BALL

application:General

power:Pneumatic

customized support:OEM, ODM, OBM

temperature of media:High/Medium/Normal Temperature

media:Water, Air, Oil,Steam,Fibrillar and granular media

Body material:Carbon Steel WCB

Pressure:PN1.6/2.5/4.0/6.4/10.0Mpa

Sealing material:PTFE

Ball:304/CF8

Share this page:

Related Products

High-quality Ball Valve Cast Steel Industrial Ball Valve Cast Steel Pneumatic V-type Ball Valve

TIANYU pneumatic V-type ball valve delivers reliable solutions for complex industrial media control through its shearing V-shape structure, high-strength sealing system, and precision manufacturing. With deep customization and a comprehensive service system, TIANYU precisely meets diverse application needs, helping clients enhance system efficiency, reduce O&M costs, and achieve safe, compliant operations.

High Performance Standard Carbon Steel WCB Pneumatic Flanged V Type Ball Valve

TIANYU GB standard V-type control ball valve delivers precise, reliable fluid control through its V-shape core design, high-strength hard seal, and advanced manufacturing. With robust customization and service capabilities, TIANYU meets diverse industrial needs, enhancing production efficiency and cost optimization for global clients.

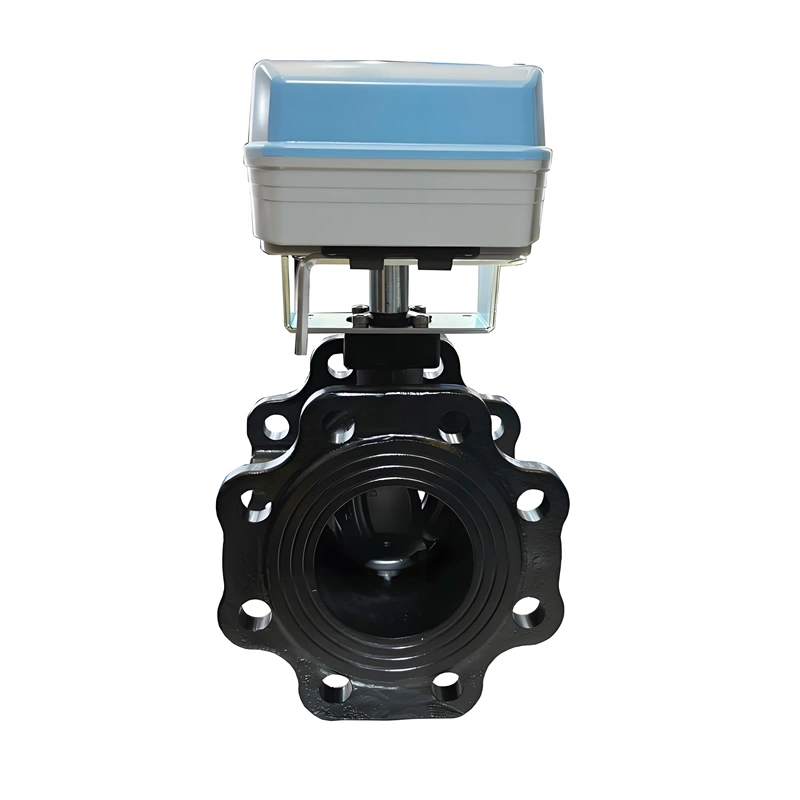

High Quality 220VAC On-Off Motorized Ball Valve HVAC Water Application V-Shape Valve Core Flange Connection

TIANYU V-type motorized ball valve integrates precision core design and motorized drive technology, optimizing materials and processes to deliver efficient and safe fluid control for HVAC systems. Its customizable solutions meet diverse 工况 needs, empowering industrial clients to achieve automated energy-saving operations.

Cast Steel CF8 DN125 PN16 RF Flange V-Port Ball Valve With Pneumatic Actuator

great benefit of a 3-pc ball valve is that you only have to remove the piece at the center when cleaning the line. Three-piece ball valves are typically manufactured using investment cast and designed

Description

Product Overview

TIANYU GB Standard Carbon Steel V-Type Control Ball Valve: Core Equipment for Precision Industrial Fluid Control

I. Technical Overview

TIANYU VQ647H-16C GB standard carbon steel V-type control ball valve is designed for precise flow regulation and shut-off in industrial fluid systems, strictly complying with GB/T 12237 national standards. Ranging from DN40 to DN600 (1 1/2″ to 24″), it suits water, steam, oil, natural gas, and other media. The body uses WCB carbon steel with a V-shape ball core and hard seal structure, rated at PN16 (1.6MPa) and operating from -20℃ to 425℃. Widely applied in petrochemical, power, metallurgy, and heating industries, it supports electric, pneumatic, and hydraulic drives for remote control and precise flow regulation, ensuring efficient industrial operations.

II. Core Product Features

(A) Precision V-Shape Core Design

The unique V-shape ball core with precision-cut angles achieves an equal percentage flow characteristic and a 100:1 regulation ratio. Within 0-90° rotation, it enables linear flow control, ideal for complex scenarios requiring continuous adjustment. Compared to standard ball valves, it improves flow control accuracy by 40%, minimizing production inefficiencies from flow fluctuations.

(B) Hard Seal & High-Strength Structure

Component	Material	Performance Advantages
Body	WCB carbon steel	Tensile strength ≥485MPa, suitable for medium-high pressure
Core/Seat	Alloy steel with Stellite overlay	HRC60-65 hardness, resistant to erosion and wear
Stem	2Cr13 stainless steel	Corrosion-resistant and blowout-proof design
Seal Pair	Metal-to-metal hard seal	Zero leakage standard, suitable for high-temperature and high-viscosity media

The metal hard seal ensures excellent sealing under high temperature, pressure, and wear, with leakage meeting GB/T 13927 Class A (zero leakage). The core and seat, overlaid with Stellite alloy, have 3x higher erosion resistance than common materials, extending service life.

(C) Multi-Drive Flexibility

Supports three drive modes:

Electric Drive: Optional 220VAC/380VAC with intelligent positioner, 4-20mA signal regulation, response time ≤15s (DN100);
Pneumatic Drive: Double-acting/single-acting cylinder, 0.4-0.7MPa air pressure, quick shut-off ≤5s for emergency scenarios;
Hydraulic Drive: High-pressure hydraulic system for large-diameter, high-pressure applications.

III. Key Technical Attributes

Parameter Category	Specifications	Expansion Options
Size Range	DN40-DN600 (1 1/2″-24″)	Custom oversized DN600+
Pressure Rating	PN16 (1.6MPa)	Optional PN25/PN40 high pressure
Temperature Range	-20℃-425℃ (standard)	Cryogenic -46℃, high-temperature 550℃
Connection Type	Flange (GB/T 9113)	Welded/clamp connection customization
Media Compatibility	Water, steam, oil, natural gas, etc.	Acid-alkali media (stainless steel option)
Compliance Standards	GB/T 12237, GB/T 13927	Optional API 6D, ISO 5208 certification

IV. Manufacturing Processes & QC

(A) Precision Manufacturing

Body Casting: Resin sand casting with electric furnace-smelted WCB carbon steel, strictly controlled for chemical composition. Castings undergo ultrasonic testing (UT) for defects, followed by annealing to relieve stress.
Core Machining: 5-axis CNC machining for V-shape cuts with ±0.3° angle error, surface roughness Ra≤0.8μm. Core and seat surfaces are overlaid with Stellite and ground to ensure ≤0.01mm fit.
Assembly & Testing: Actuators connected via ISO 5211 brackets with ≤0.1mm coaxiality. Each valve undergoes 1.5x pressure (2.4MPa) hydrostatic and 1.1x pressure (1.76MPa) seal tests for ≥15 minutes with zero leakage.

(B) Rigorous Quality Control

Material Traceability: Each raw material batch includes a quality certificate, with key components (body/core) batch-numbered for full traceability.
Performance Testing: Sampled for 100,000 cycle tests with ≥95% sealing retention, exceeding industry standards.
Certifications: ISO 9001, CE certified, with API 6D-compliant models available, supporting third-party inspection (SGS, BV).

Application

V. Application Scenarios

Petrochemical: Regulates high-temperature slurry flow in catalytic cracking units; Stellite seals resist particle erosion, lasting 8+ years.
Power Energy: Controls steam flow in power plants; metal hard seals maintain zero leakage at 425℃.
Metallurgy: Regulates blast furnace gas flow; WCB body withstands 1.6MPa pressure fluctuations.
District Heating: Controls hot water flow in heating networks; equal percentage flow ensures stability, saving 15% energy.

VI. TIANYU Customization Advantages

With 20 years of industrial valve expertise and Zhejiang’s smart manufacturing base, TIANYU offers comprehensive customization:

Technical Customization: Non-standard pressure (e.g., PN200), special temperatures (-196℃ to 650℃), and flange standards (ANSI/DIN/JIS), with 3D modeling and fluid simulation.
Rapid Delivery: 15-day standard lead time, 72-hour prototyping for small batches (MOQ 1 units), and 24-hour expedited production for emergencies.
Full-Lifecycle Service: 18-month warranty, 24/7 support from 5 global service centers (APAC/Europe/NA/Middle East/Africa), lifetime actuator core maintenance, and professional installation training.
