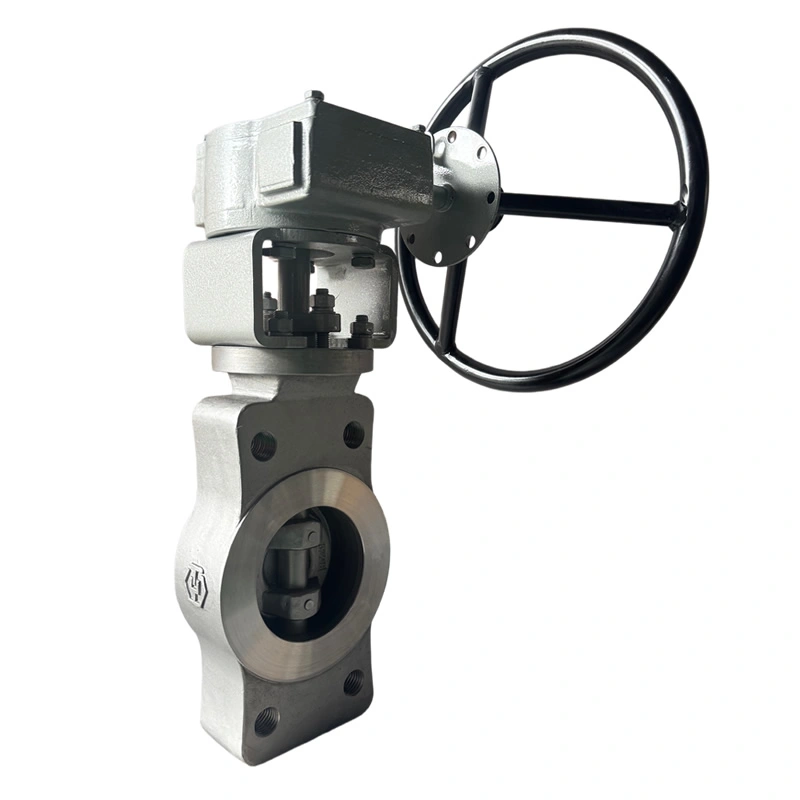

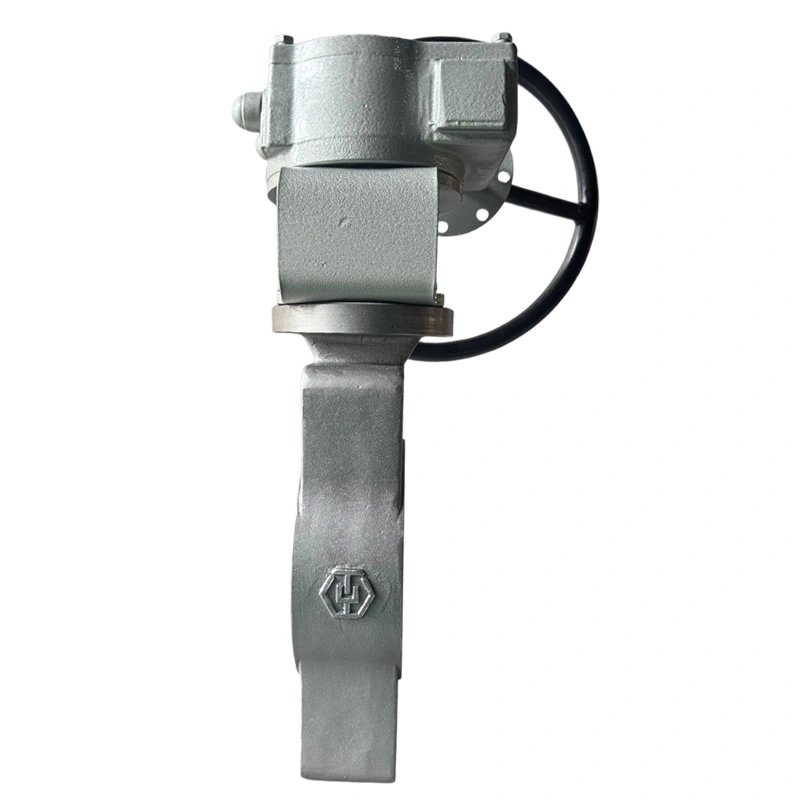

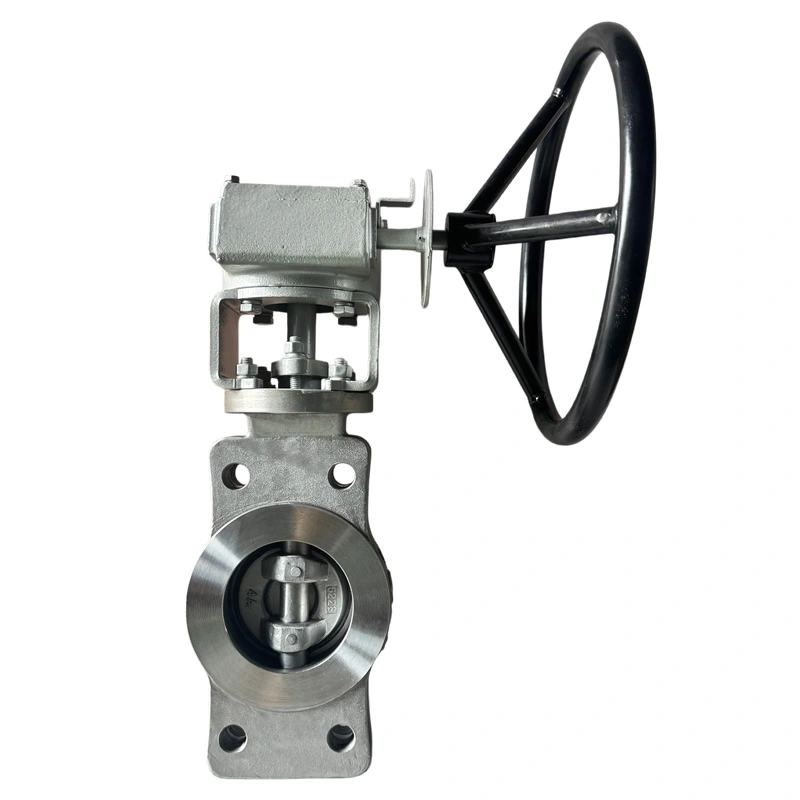

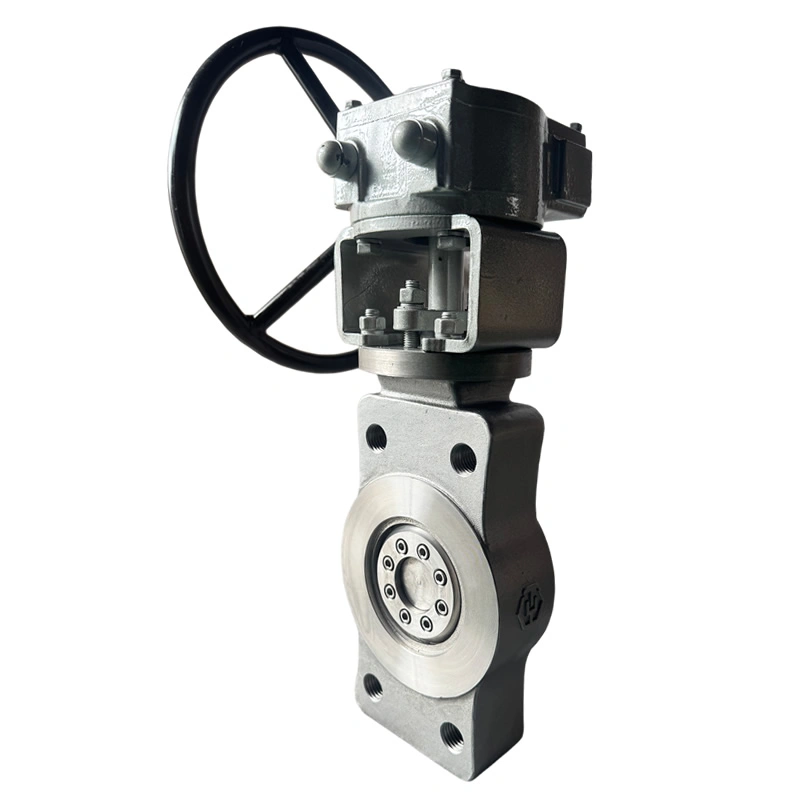

API 609 ASME B16.34 ASME B16.5 CE 4 Inch Class 600LB UNS S32750 4A Wafer Type Triple Eccentric Butterfly Valve

II. Manufacturing Process, Core Product Features & Competitive Product Advantages

A. Full Production Flow & Strict In-process Quality Control

• Raw Material Incoming Inspection Management: All purchased UNS S32750 4A duplex stainless steel ingot, F51 stem bar and SS316 sealing strip raw material are sent to factory physical and chemical laboratory for component spectrum analysis and mechanical property sampling test; only materials reaching standard chemical composition and tensile, hardness mechanical index can be released into production line, non-conforming batches will be returned to supplier directly to prevent defective raw material flowing into subsequent processing.
• Precision Casting and Heat Treatment: Valve body blanks adopt investment lost wax precision casting technology to reduce casting surface defects like sand hole and shrinkage cavity; after casting molding, blanks go through solution annealing heat treatment to homogenize internal metal grain structure and eliminate casting internal stress, further lifting overall structural stability of valve body. After heat treatment finished, all cast blanks conduct 100% UT ultrasonic testing and MT magnetic particle flaw detection according to ASME V nondestructive inspection specification to eliminate invisible internal and surface crack defects.
• CNC Precision Machining Working Procedure: Key fitting positions including valve body inner sealing surface, stem mounting hole and wafer flange positioning surface are processed via five-axis CNC machining center with dimensional tolerance controlled within micrometer range; sealing seat matching circular surface finish reaches Ra0.8μm or below through fine turning and grinding processing to ensure tight attaching with multi-layer composite sealing ring after assembly. Valve stem outer circle surface adopts centerless grinding to obtain mirror smooth surface to reduce friction abrasion between stem and packing assembly during repeated rotation movement.
• Composite Sealing Ring Custom Lamination Processing: Multi-layer SS316 and graphite composite sealing component is automatically laminated by numerical control lamination equipment with fixed single-layer thickness and overall stacking height; finished sealing ring is compressed by fixed tonnage hydraulic press to pre-eliminate assembly shrinkage deformation during later field working. Every single batch of sealing ring samples undergo high temperature aging simulation test inside constant temperature oven to verify long-term dimensional stability under cyclic high temperature environment.

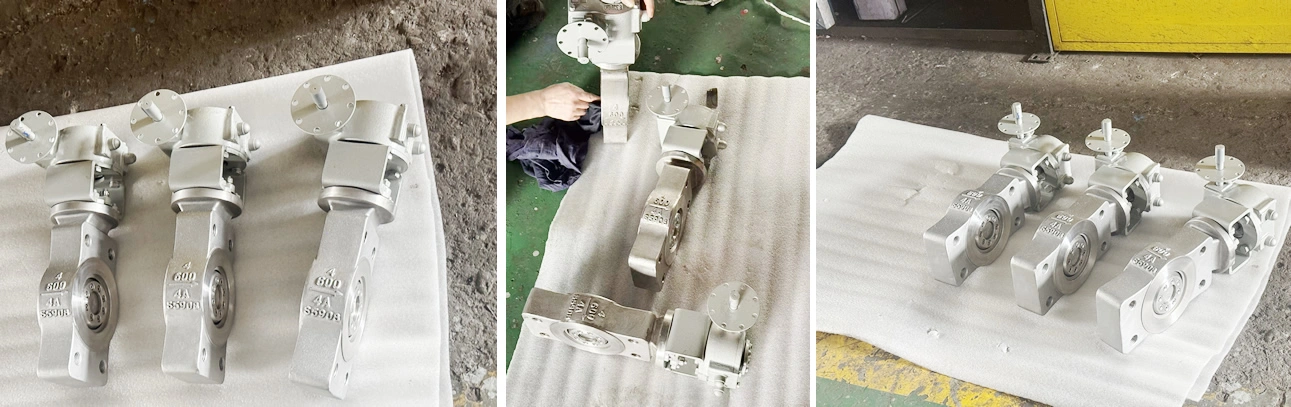

• Final Assembly and Full-item Performance Test: Assembly operation is finished inside dust-free assembly workshop, all fastener bolts are tightened by calibrated digital torque wrench following standardized torque value to avoid uneven compression causing sealing failure. All finished valves sequentially complete shell hydrostatic pressure test, seat air tightness test, full-stroke open-close cycle life test and high temperature heat stability test complying with API598 specification; products failing any testing project will enter rework procedure instead of entering finished product warehouse, only fully qualified valves proceed surface anti-rust coating and finished packaging work before shipment.

B. Core Structured Product Features

• Unique Triple Eccentric Mechanical Design: Three sets of eccentric dimensional layout between valve disc rotation center, sealing cone center and valve body pipeline center thoroughly avoid sliding friction between sealing pair during opening and closing stroke, greatly lowering sealing ring abrasion loss and prolonging whole valve service cycle compared with single and double eccentric butterfly valve product lines.
• Multi-layer Metal Graphite Composite Hard Sealing Structure: Compound sealing made of alternating SS316 stainless steel and flexible graphite breaks through temperature limitation of ordinary rubber soft seal, stably running under ultrahigh temperature up to 550℃ without sealing material aging, melting or permanent deformation, realizing ANSI Class VI zero bubble leakage tight shut-off effect under full Class600LB rated pressure difference.
• Super Duplex UNS S32750 4A Valve Body Material: The selected 4A grade duplex stainless steel owns outstanding anti-chloride corrosion capacity, effectively coping with seawater, brine, weak acid and alkaline medium erosion which easily corrode carbon steel and conventional austenitic stainless steel valves, expanding applicable medium coverage scope of this butterfly valve product.
• High Performance F51 Duplex Stainless Steel Valve Stem: Heat treated F51 stem balances hardness and toughness index to resist medium erosion and mechanical torsion damage; matched flexible graphite stem packing forms multi-stage dynamic sealing system to restrain stem position fugitive emission under high pressure medium scouring, conforming to global VOC emission control environmental regulations.
• Compact Wafer Clamped Installation Layout: Wafer structure is fixed between two pipeline flanges via external bolt penetration without self-owned flange structure, cutting raw material consumption and overall valve weight by nearly 30% compared with equivalent specification flanged triple eccentric butterfly valve, convenient for pre-installation on compact modular process skid and narrow pipeline layout space.
• Standardized Manual Gear Handwheel Driving Unit: Worm gear speed reduction structure reduces required handwheel operating torque for operators to switch valve under full Class600LB working pressure; external open-close position pointer directly feeds back valve opening real-time data without extra auxiliary detection instrument installation, convenient for on-site field operation management.
• Full Range International Standard Certification Endorsement: Entire product development, production and testing flow is audited and certified by ISO9001 quality management system, EU CE safety certification and API specification design verification, product technical parameters match North America, European mainstream industrial engineering procurement standard to smoothly access global bidding procurement project list of international EPC enterprises.

C. Diversified Competitive Product Advantages

• Remarkable Long Service Lifespan to Lower Replacement Expense: Thanks to friction-free triple eccentric opening-closing design and wear-resistant metal composite sealing system, regular service cycle of TIANYU triple eccentric butterfly valve exceeds 12 years under standard design working condition, greatly reducing plant spare part purchase cost and pipeline shutdown maintenance loss caused by frequent valve replacement compared to soft-seal centerline butterfly valve.
• Ultra-wide Medium and Temperature Compatibility Scope: Collocation of 4A super duplex body, F51 stem and SS316-graphite composite seal enables this valve to adapt high temperature steam, corrosive chemical solvent, seawater, crude oil and various industrial gas medium covering temperature range from cryogenic minus 45℃ up to high temperature 550℃, realizing unified valve model matching multiple different production working condition demands for end-user enterprises.
• Excellent Comprehensive Cost Control Performance: Wafer structure saves casting cost of integral flange while raw material selection optimizes later maintenance expense; zero leakage characteristic avoids economic loss from medium leakage and related environmental governance penalty triggered by fugitive emission, helping plant users cut down overall total ownership cost during full valve service lifecycle.
• Strong Environmental Compliance Advantage: Metal hard seal design eliminates volatile leakage risk of organic rubber sealing material under high temperature working condition, satisfying strict environmental protection emission standards formulated by EU Industrial Emission Directive and US EPA VOC regulation, the core advantage for chemical and petrochemical enterprises to pass environmental audit inspection.
• High Installation Adaptability for Global Pipeline Projects: Strict compliance with ASME B16.5 wafer flange hole layout and ASME B16.10 face-to-face dimension guarantees seamless matching with global standard industrial pipeline flange size; manual drive configuration can be later upgraded to pneumatic or electric actuator without replacing valve body structure, flexible to satisfy intelligent automatic pipeline transformation demand of existing old production line.
• Stable Performance under Abrupt Working Condition Fluctuation: Composite graphite-metal sealing structure can resist instantaneous medium pressure surge and sharp temperature change in pipeline, avoiding sealing failure and medium leakage accident caused by working condition sudden fluctuation which frequently occurs on ordinary soft seal butterfly valve product.
