Basket Strainer

China Industrial Basket Strainer Manufacturer

Industrial Basket Strainer Standards:

Based on ASME B16.34, API 598. Flanged per ASME B16.5. Quick-opening basket design with ISO 4406 mesh grading (10–500μm). Pressure parts to ASME BPVC; ATEX for explosion-proof.

Basket Strainer Specifications:

Pressure: Class 150–2500 (PN16–420).
Shell Test: 1.5x pressure (water, 30min), no failure.
Seal Test: 1.1x pressure (gas/water), ≤0.1cc/min flange leakage.
Materials: Forged steel (A105/F316), duplex; 316L mesh (≤200HB).
Features: ≤15min screen change, inline cleaning, ΔP ≤0.05MPa, -196℃–650℃, ≤15% solids.

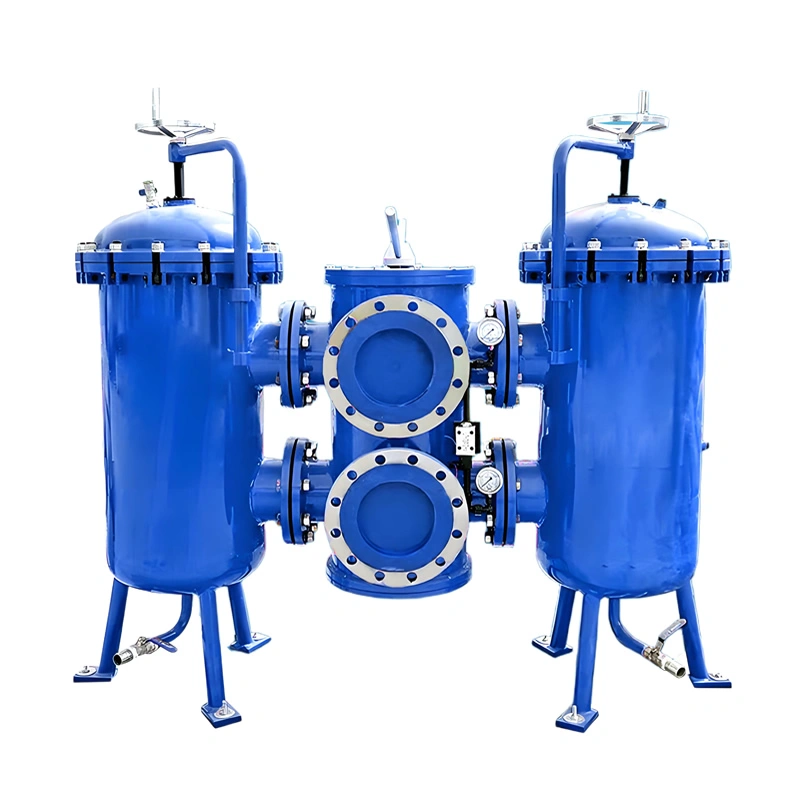

Duplex Filters in Multi-Media Industrial Filtration: Key Technologies of 304 Stainless Steel/PP Filter

Duplex Basket Strainer Filter technology is already widely used in chemicals, water treatment, food and beverage, pharmaceuticals, electronics, and other industries, becoming a key technology for improving product quality, optimizing production processes, and achieving sustainable development. As technology advances and applications expand, TIANYU remains committed to providing customers with more advanced and reliable filtration solutions, injecting new vitality into industrial progress.

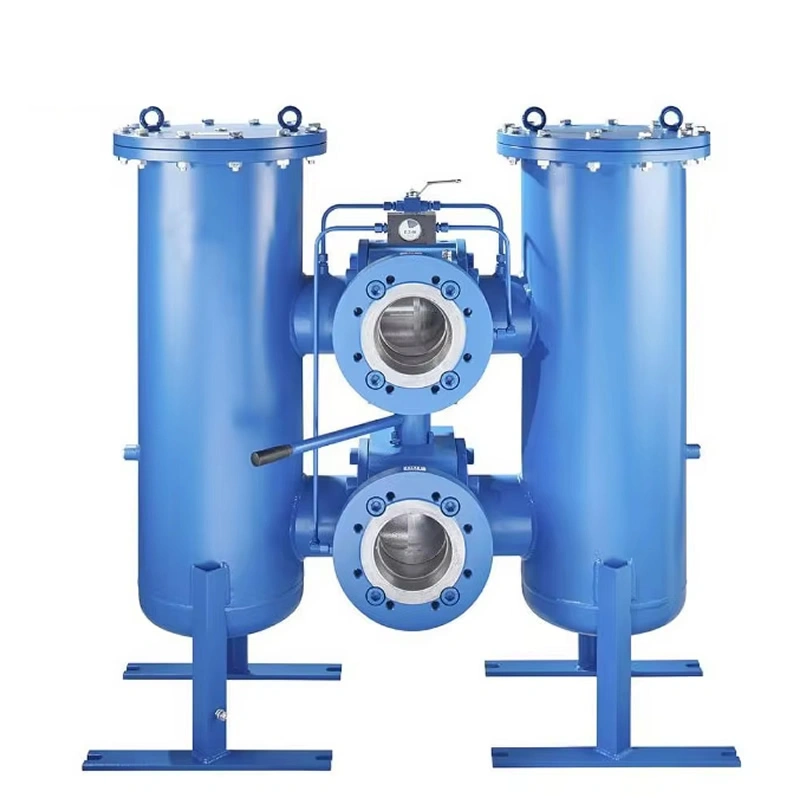

Duplex Stainless Steel Basket Strainer Filter: Flanged/Threaded Connection for Continuous Industrial Filtration

Duplex Stainless Steel Basket Strainer Filter: DN20~DN500, 40bar max pressure, 304/316 construction. Enables continuous filtration via dual chambers, ideal for petrochemical, food, and water treatment industries.Customize with: 316L stainless steel for extreme corrosion, finer mesh (0.04μm) for precision filtration, high-temperature Viton gaskets (300℃), or threaded connections for compact installations. Tailored to your fluid type, pressure, and filtration needs.

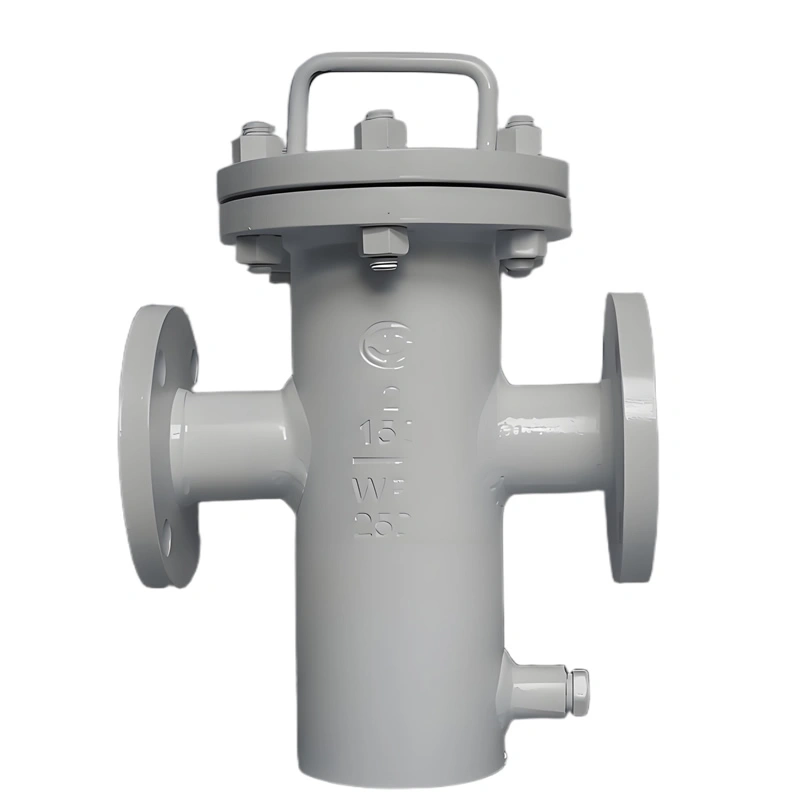

ASTM 2” 150LB WPB RF Flange Basket Strainer

ASTM 2” 150LB WPB RF Flange Basket Strainer TIANYU 2” 150LB RF flange filter: WPB body, stainless steel basket, efficient particle removal. Protects equipment in water, oil, gas systems. Easy maintenance, cost-effective.

DN1000 900LB WCB Gas Pressure Differential Fabricated Basket Strainer Cast Iron Flanged Ends Basket Strainer

TIANYU Gas Pressure Differential Fabricated Basket Strainer (DN15-DN1000, 150lb-900lb) suits gas, water, oil, steam (220-350℃). Features 304 basket filter, differential pressure monitoring, easy maintenance, and flange connection. Applies to gas transmission, petrochemical, power sectors. Customizable in mesh and material for specific needs.

Stainless Steel 316 Marine Seawater Strainer/basket 1″/2″/3″ Sea Water Filter

316 stainless steel marine seawater valves (DN15–DN300, 1.6–10 MPa) feature molybdenum-containing stainless steel and Stellite sealing surfaces for seawater corrosion resistance. Ideal for ship ballast water and cooling systems. Certified by DNV-GL and other classification societies, with a design life ≥20 years, they offer efficient and reliable marine fluid control solutions.

DN450 304 Electric Basket Strainer Effective Molten Sulfur Water Filter Basket Filter for Removal

DN50 Stainless Steel Electric Basket Strainer offers automated, high-precision filtration for industrial pipelines. Constructed from SUS304/316L stainless steel, it handles pressures up to 1.6 MPa and temperatures from -20°C to 200°C. Equipped with an IP65-rated electric actuator, it features 80-micron filtration (customizable to 20-200 microns) and self-cleaning capabilities. Ideal for chemical, food, pharmaceutical, and water treatment applications

TianYu Reliable Partner in Industrial Filtration

Established in 2009, TIANYU specializes in industrial valves and filtration equipment, with ISO 9001, API 6D, CE certified, products export to 50+ countries, serving Shell, Sinopec, BASF. Stringent adherence to ASME BPVC, EN 13445 involves 16 quality checks from raw material to finished product.

Industrial Basket Strainers Expert in Efficient Fluid Filtration

I. Product Features: Perfect Combination of Precision Structure and Reliable Performance

TIANYU Industrial Basket Strainers feature a quick-opening basket design, engineered to remove solid particles from fluids. Key technical characteristics:

(A) Structural Design

Quick-Opening Basket
- Patented cam locking device (Patent No.: ZL2023XXXXXX) with ≤50N·m opening torque, saving 70% operation time vs. traditional bolted design (DN300 model);
- 45° sloped basket bottom promotes particle settling, reducing risk of secondary contamination.
Filter System
- 316L stainless steel wedge wire screen (slot accuracy ±0.02mm), filtration precision 10-500μm, customizable sintered mesh (5μm for ultra-fine filtration);
- Reinforced screen support structure (rib spacing ≤50mm) increases pressure resistance by 30%, preventing deformation.

(B) Material Selection

Component	Standard Materials	Special Application Materials
Body	WCB, CF8M	Duplex 2205, Hastelloy C276
Screen	316L Stainless Steel	Monel, Titanium Alloy
Seals	NBR, EPDM	Viton, Kalrez
Fasteners	A193 B7	Inconel 718

II. Manufacturing Process: Dual Assurance of Craftsmanship and Intelligent Inspection

TIANYU Basket Strainers are manufactured with advanced systems ensuring reliability:

(A) Key Manufacturing Processes

Body Forging
- 8000-ton friction press forges body blanks (forging ratio ≥4:1), ASTM grain size 9+;
- Ultrasonic testing (UT) detects internal defects with Φ1.2mm flat-bottom hole sensitivity.
Precision Machining
- 5-axis CNC mills flange sealing surfaces (flatness ≤0.03mm), surface roughness Ra≤1.6μm;
- CNC rolling machine forms basket cylinders (diameter tolerance ±0.2mm), automated welding (15cm/min speed) ensures leak-tightness.
Surface Treatment
- Food-grade products electrolytically polished (Ra≤0.4μm) for FDA 21 CFR 177.2600 compliance;
- Marine applications coated with FBE (≥300μm thickness), passing 1000-hour salt spray test.

(B) Full-Scale Performance Testing

Hydrostatic Test: 1.5x rated pressure (water, 30min), ≤0.5% pressure drop (e.g., 9.0MPa for Class 600);
Gas Seal Test: 0.6MPa compressed air with bubble detection;
Flow Test: ≤0.04MPa pressure drop at rated flow (e.g., 120m³/h for DN200).

III. Applications: Multi-Industry Fluid Filtration Solutions

TIANYU Basket Strainers serve diverse industrial scenarios:

(A) Petrochemical Industry

Crude Oil Pretreatment: DN600 strainer (80μm) in atmospheric/vacuum units protects pump impellers from weld slag and sediment, extending maintenance intervals from 2 months to 1 year;
Polyester Production: Hastelloy C276 strainer (25μm) in PTA units filters acetic acid-containing media, operating 5+ years without corrosion.

(B) Power Industry

Cooling Water Systems: DN800 strainer (150μm) with electric quick-opening for 5-minute debris removal in power plants;
Feedwater Pumps: 316L strainer (40μm) protects high-pressure pumps with ≤0.03MPa pressure drop.

(C) Food & Beverage Industry

Beer Brewing: Hygienic strainer (30μm) with 316L mirror finish and quick-clamp connections for wort filtration, EHEDG certified, ≤0.01mg/cm² CIP residue;
Dairy Processing: 10μm strainer in UHT systems prevents heat exchanger fouling, improving efficiency by 15%.

(D) Paper Industry

White Water Recovery: DN500 strainer (100μm) with stepped screen design reduces fiber loss to 0.5% in wastewater treatment;
Chemical Addition: 5μm strainer ensures uniform coating in paper production, reducing defects by 30%.

Related News

Cryogenic Ball Valves for LNG Applications (-196°C, Class 1500)

TIANYU cryogenic ball valves are specially designed for LNG applications, with an operating temperature of -196°C and a pressure rating of Class 1500. They adopt special low-temperature resistant materials to ensure stable performance and reliable sealing at low temperatures. Advanced manufacturing processes guarantee high precision and quality. Their advantages lie in excellent low-temperature adaptability, precise flow control, high reliability, long service life, convenient maintenance, and high cost-effectiveness. They are widely used in all links of LNG production, storage, transportation, and application, making them an ideal choice for ensuring the safe and efficient operation of LNG systems. They can be customized according to different working conditions to meet the requirements of various projects.

August 13, 2025

Electric Actuated Ball Valves: Automated Flow Control in Water Treatment Plants

Electric actuated ball valves have evolved from basic isolation devices into the backbone of efficient, precise, and intelligent flow control within modern water treatment plants. Their superior sealing, minimal resistance, rapid response, and seamless automation integration make them indispensable from intake to effluent.

August 5, 2025

Angle Globe Valves for High-Pressure Drop Steam Reduction

The technological evolution of angle globe valves in high-pressure-drop steam control epitomizes the deep integration of extreme-condition adaptation design with revolutionary manufacturing processes. Tianyu's Intelligent Micro Cast-Forging Technology not only resolves traditional forging pain points—giant equipment dependency, lengthy workflows, and high energy consumption—but also endows high-end valves with exceptional performance through integrated material-structure-function manufacturing.

August 1, 2025

API 600 Gate Valves with Cr-Mo Steel for Power Plant Steam Lines

I. The Critical Role of Gate Valves in Power Plant Steam Systems Power plant steam lines are the “arteries” of thermal power generation, responsible for transporting high-temperature, high-pressure steam from boilers to turbines, with auxiliary systems (such as feedwater, condensate, and reheating circuits) relying on precise flow control to maintain efficiency and safety. In these […]

July 29, 2025

Top Applications of Globe Valves: Precision Control Solutions for Chemical Processing Excellence

Chemical processing environments represent the ultimate test of industrial valve performance, combining aggressive media, extreme thermal profiles, and zero-tolerance safety requirements. With global chemical production projected to reach $6.8 trillion by 2028 and emissions regulations intensifying worldwide, TIANYU engineered globe valves deliver precision flow management certified with zero-bubble sealing integrity. Designed for critical applications from […]

July 26, 2025

Triple Offset Metal Seated Butterfly Valves: Engineering Zero Leakage for Critical Refinery Operations

TIANYU’s triple offset valves deliver quantifiable operational integrity where failure is not an option. With third-party validated leak rates under 13 ppm, API 607 fire safety compliance, and digital prognostics preventing 93% of unplanned outages, these valves transform emission control from compliance burden to profit center. As refineries adopt hydrogen and carbon capture systems, TOMBV technology provides the material science foundation and data-driven reliability required for sustainable hydrocarbon processing.

July 20, 2025

Excelling in Harsh Conditions, Leading the Industry with High-Performance Valves for Stable Operation

TIANYU Industrial Basket Strainers excel in structural design, manufacturing precision, and reliability, making them the ideal choice for global industrial fluid filtration. From harsh petrochemical environments to high-purity food applications, TIANYU delivers efficient, durable, and maintenance-friendly solutions, supporting safe and sustainable operations worldwide.
