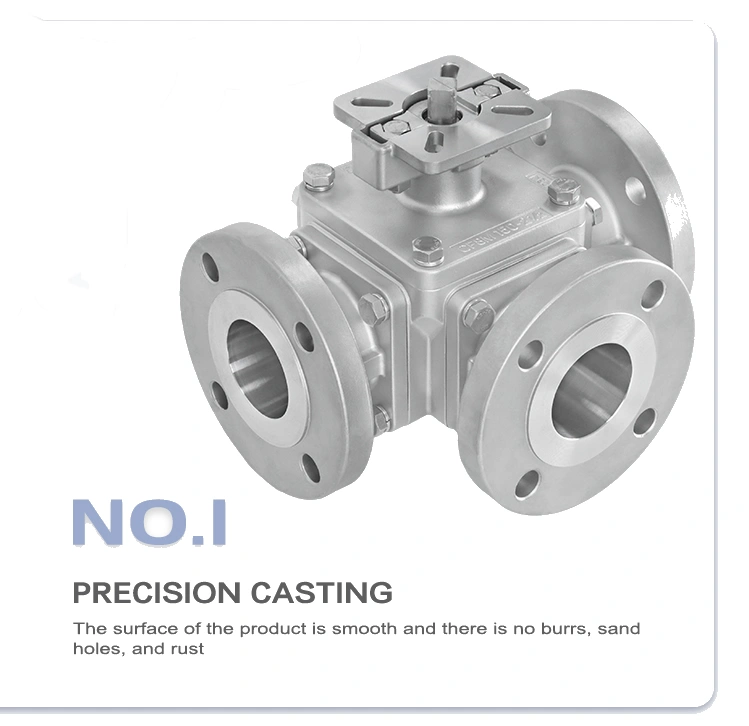

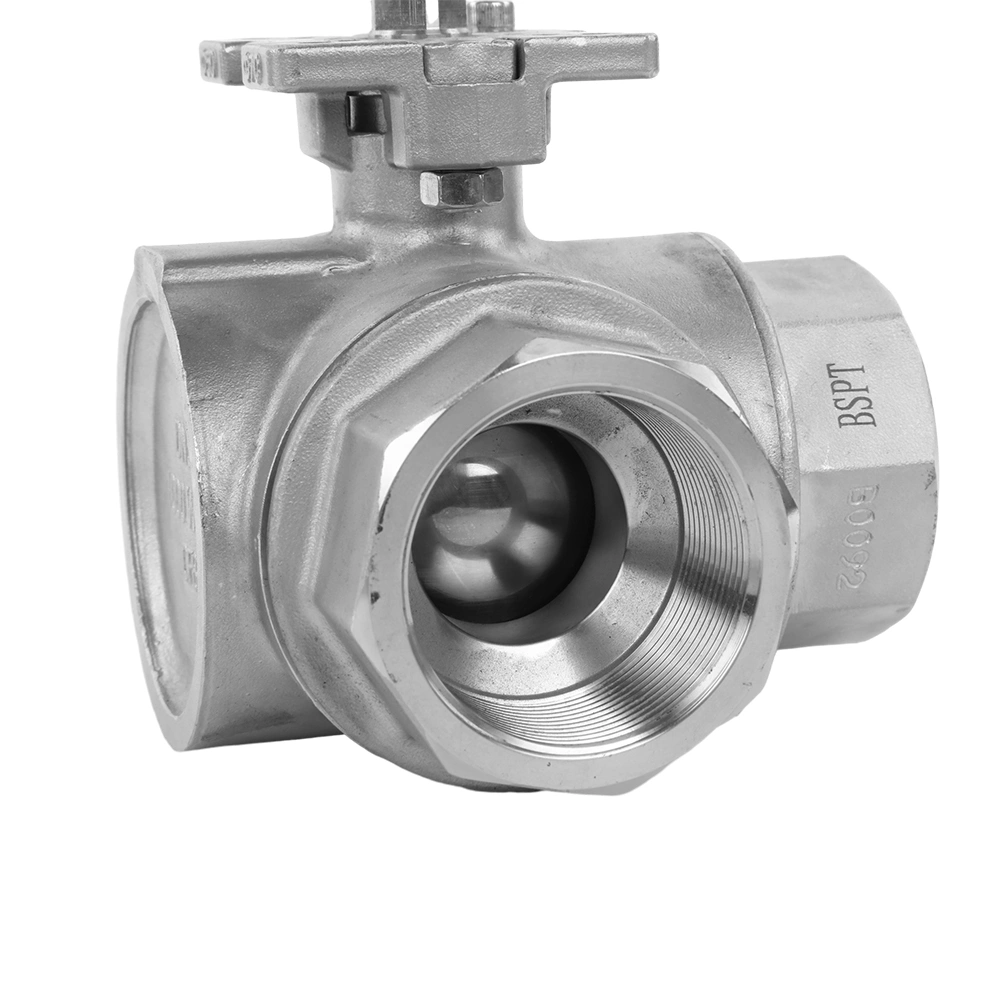

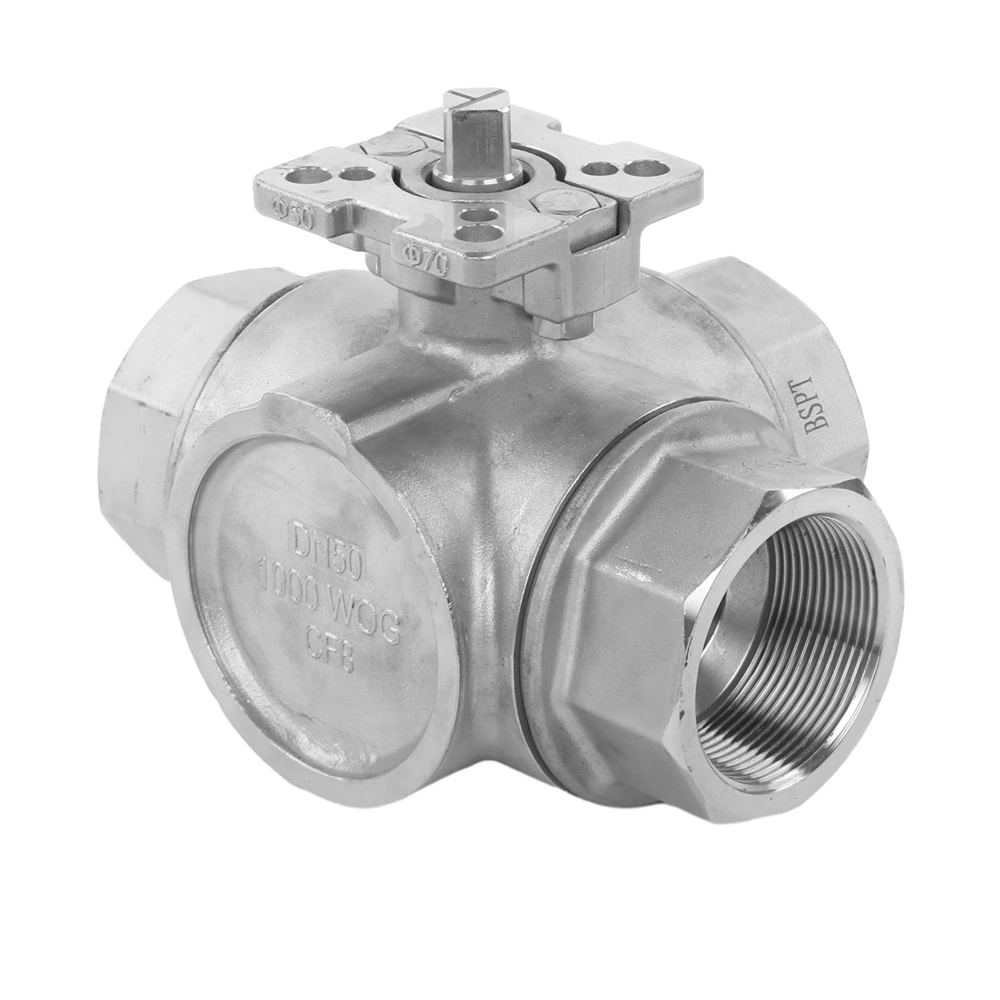

Pneumatic Actuator High Platform Mounting Pad Stainless Steel T Type 3 Way Ball Valves

Product Description: A Versatile Solution for Industrial Fluid Control

(1) Chemical and Pharmaceutical Industries

• Corrosive Media Control: 316L stainless steel body with TFM1600 seats suits hydrochloric acid and alcohol; FDA-certified for zero-contamination material diversion in pharmaceutical reactors.
• Precision Mixing Systems: T-pattern channels enable dynamic blending of two inlets and one outlet, with ±2% adjustment accuracy via pneumatic actuators for cosmetic emulsification lines.

(2) Food and Beverage Industry

• Clean Fluid Diverting: Electropolished interior (Ra≤0.2μm) meets 3A sanitary standards, ensuring sterile switching in juice production to prevent cross-contamination.
• CIP Cleaning Systems: Supports forward flushing and reverse 回流，improving cleaning efficiency by 40% with electric actuators to reduce manual intervention.

(3) Marine and Offshore Engineering

• Ballast Water Systems: DN40 model certified by DNV GL, 316 stainless steel resists seawater corrosion; T-pattern channels enable inter-tank transfer and discharge with operating torque ≤50N·m.
• Fuel Line Control: Pneumatic valve responds within ≤1.5 seconds for diesel generator fuel switching, ensuring rapid backup power activation.

IV. Supply Chain and Services: Flexible Support from Small Batches to Scale

• Delivery Capability: Standard products (DN8~DN50) shipped within 30 days; customized models (e.g., L-pattern, explosion-proof actuators) in 40~50 days, monthly capacity 10,000 units.
• After-Sales Service:
  • Warranty: 3 years (free replacement for non-human damage);
  • Technical Support: DCS system integration guidance, actuator calibration, 7×24hr remote diagnostics.
• Cost Optimization: Bulk orders (≥500 units) as low as $50/unit, mixed batches (different diameters) reduce inventory costs by 20%.
