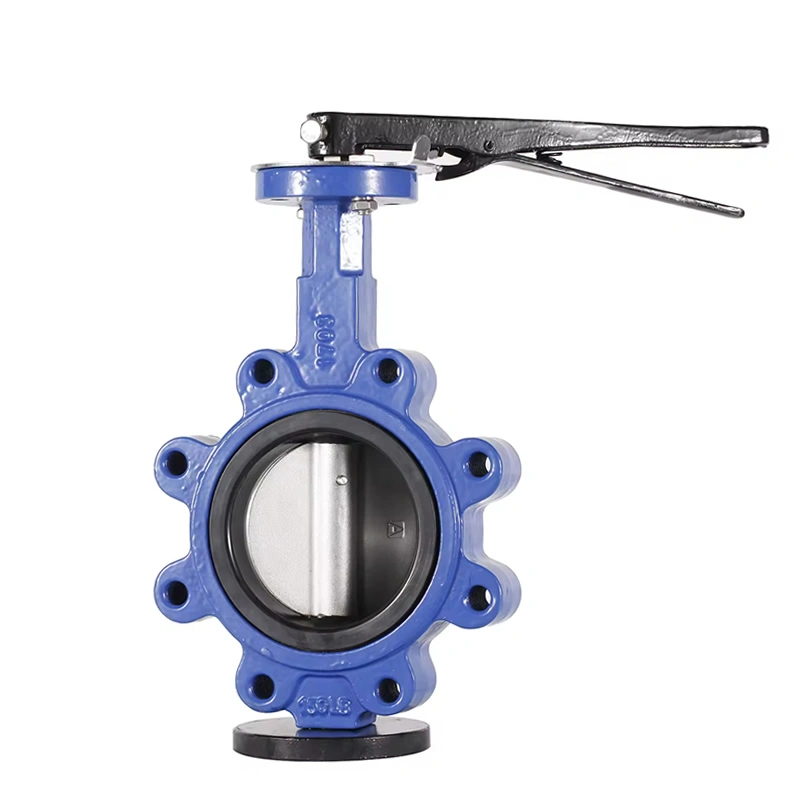

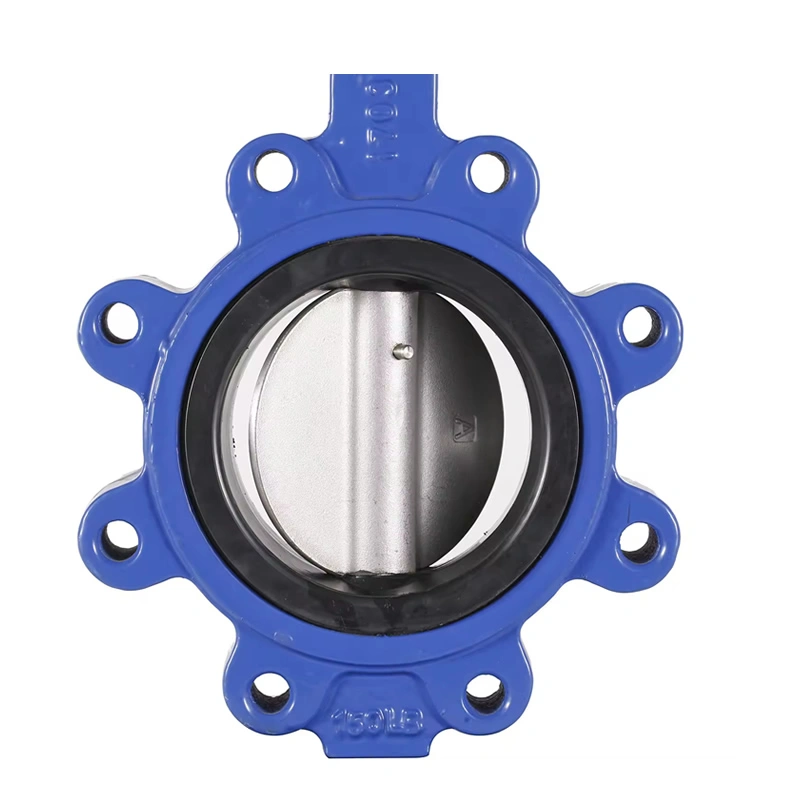

High Performance API609 Manual EPDM Seat 304 Stainless Steel Lug Type Cast Iron Concentric butterfly Valve

port size:DN50-DN1200

application:General

customized support:OEM, ODM

applicable medium:Water

temperature of media:Low Temperature

Product name:Lug Type Cast Iron butterfly valve

Body material:DI;CI

Size:DN50-DN1200; 2″-48″

Working Temperature:Normal Temperature

Seal Material:NBR /EPDM /PTFE

Type:lug type butterfly valve

Standard or Nonstandard:ANSI BS DIN JIS Ect

Certification:ISO9001:2008 CE,WRAS.ACS

Medium:Handle Pneumatic motorized electric worm gear

Share this page:

Related Products

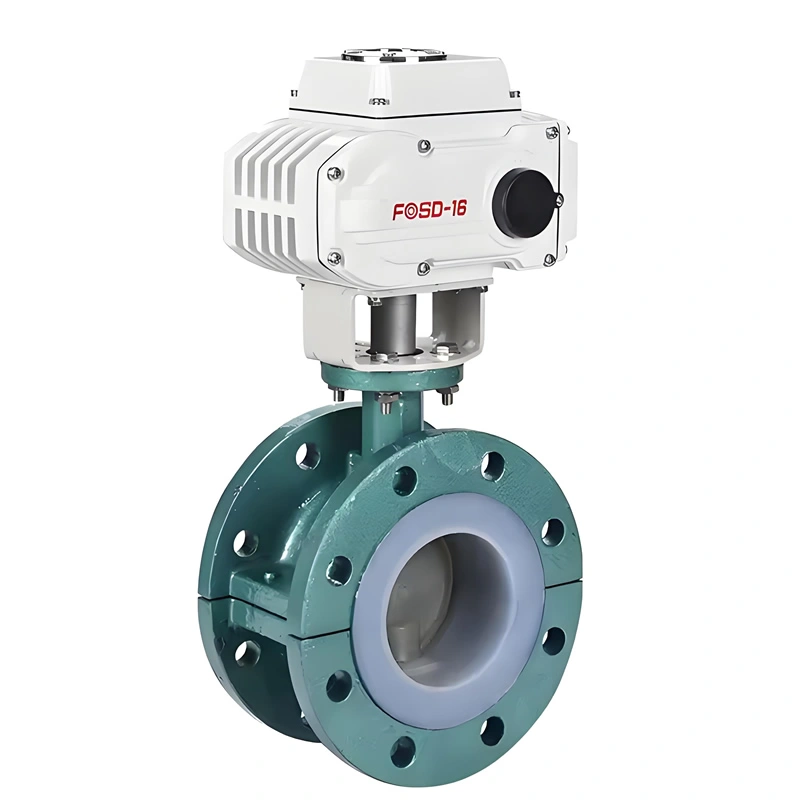

DN100~DN800 PN16 Cast Iron/Stainless Steel PTFE Seal Electric Flange Butterfly Valve

TIANYU DN100~DN800 PN16 electric butterfly valve: PTFE seal, cast iron/stainless steel, ≤200℃. Flange connection, precise electric actuation. Leak-tight, durable, easy maintenance. Ideal for water, petrochemical, power. Customizable: material, actuator type for unique needs.

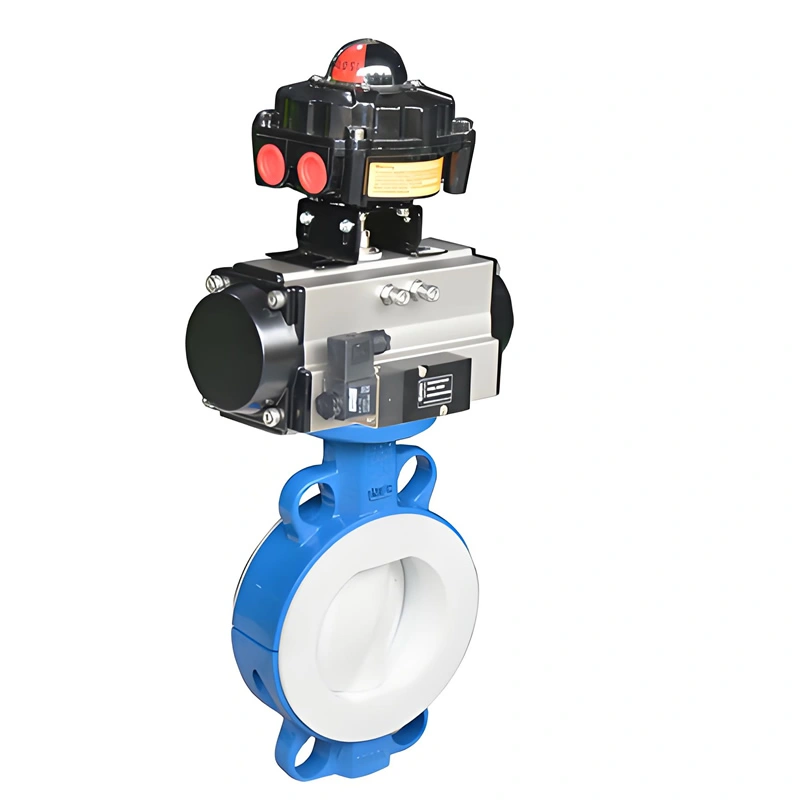

DN50~DN600 PN16 GGG40 Pneumatic Wafer PTFE Lined Butterfly Valve

TIANYU DN50~DN600 pneumatic butterfly valve: GGG40 with PTFE lining, one-piece disc-shaft, 10~16bar, -20~180℃. Corrosion-resistant, bubble-tight, easy maintenance. Ideal for chemicals, refining, water treatment. Customizable: actuator type, seal material for unique media.

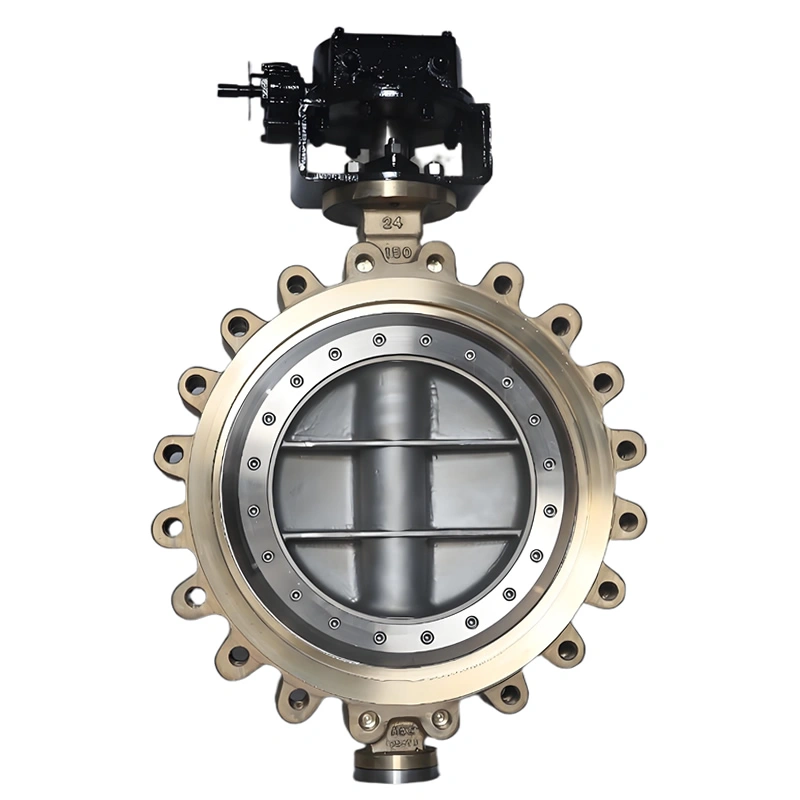

DN600 Class150 Aluminum Bronze Multi-Level Hard Seal Gear Lug-Type Concentric Butterfly Valve

TIANYU DN600 Class 150 butterfly valve: aluminum bronze body, K400 disc, multi-level hard seal. Lug-type, gear-operated, corrosion/wear-resistant. Zero leakage, low-pressure drop. Ideal for municipal water, marine, industrial, thermal systems. Customizable actuation for diverse applications. Ensures durability in large-diameter, harsh environments.

API 6D Electric Soft-Seated PTFE/Fluorine Lined Butterfly Valve for Oil & Gas and Chemical Corrosion Resistance

API 6D PTFE Lined Butterfly Valve DN50–DN400 ductile iron valve for corrosive fluids. Double-eccentric design enables frictionless operation and zero leakage Full 3–5mm moulded PTFE lining bonded to sodium-etched metal delivers unmatched corrosion resistance

Description

Specification

TIANYU High-Performance API609 Lug Type Manual Butterfly Valve: A Standard Solution for Industrial Fluid Control

I. Product Technical Positioning and Core Parameters

The TIANYU high-performance lug type manual butterfly valve is designed in strict compliance with API609 standards, covering nominal diameters from DN50 to DN1200 (2″ to 48″) and suitable for pressure classes PN10/PN16 (1.0/1.6MPa). It features a concentric central line structure (with the stem, disc, and pipeline axis coaxial), using 304 stainless steel (CF8) or ductile iron (DI) as the main materials, and is fixed to pipelines via lug type connections. Driven by a manual operating handle as standard (with optional worm gearbox upgrades), it is suitable for media such as water, air, and oil within the temperature range of -20°C to 120°C, particularly for medium-low pressure applications in municipal water supply/drainage, industrial circulation systems, and building HVAC.

II. Analysis of Core Technical Features

(A) Advantages of Lug Type Structure and Concentric Design

Installation and Maintenance Convenience:
The lug-type valve body comes with built-in mounting holes, fixed by through-bolts to prevent axial displacement during pipeline flange clamping—ideal for vibration-prone environments (e.g., pump inlets/outlets). Compared with wafer-type structures, maintenance efficiency is increased by 40% as pipeline disassembly is unnecessary.
Low-Resistance Flow Performance:
The concentric layout keeps the disc parallel to the fluid direction when fully open, with a flow coefficient Cv≥1200 (pressure loss of DN100 valve ≤0.2m water column). Large-diameter models (e.g., DN600) enable high-flow 输送 of 1.2m³/s, meeting urban water main requirements.
90° Precise On-Off Control:
The manual operating handle is equipped with a mechanical limit device, ensuring an on-off angle error ≤1°. The handle position corresponds directly to the opening degree, reducing misoperation risks in scenarios requiring visual status monitoring.

(B) Sealing System and Material Science

Soft Sealing Technology System:
- Seal Material Combinations: Standard configurations include EPDM (drinking water certified), NBR (oil-resistant), or PTFE (corrosion-resistant), passing bi-directional bubble-tight zero-leakage tests (EN12266 Class A) with a leakage rate ≤5×10⁻⁸m³/s.
- Seat Design: Adopts a dovetail groove fixing structure for online replacement when worn, eliminating the need for complete disassembly and reducing maintenance costs by 35% compared to hard-seal valves.
Body Material Weatherability:
- 304 Stainless Steel (CF8): Tensile strength ≥515MPa, resistant to chloride ions (≤200ppm), suitable for seawater desalination, food & pharmaceutical applications;
- Ductile Iron (QT450-10): Elongation ≥10%, impact energy ≥27J at -20°C, surface coated with epoxy resin (thickness ≥200μm) for municipal sewage pipelines.

(C) Drive and Mechanical Structure Optimization

Manual Operation System:
The handle is forged from 45# steel with a galvanized surface, requiring ≤50N·m torque for DN100 valves—operable by a single person. The handle connects to the stem via involute splines (fit tolerance H7/g6) to prevent axial movement.
Shaft System Strengthening Design:
The stem uses 2Cr13 stainless steel with surface nitriding treatment (hardness HV≥700), paired with PTFE bronze bearings to withstand over 100,000 opening-closing cycles. The stem seal employs V-type PTFE packing + O-ring double protection, passing 1.5x nominal pressure tests with no external leakage.

III. Key Technical Parameters and Certifications

Parameter Category	Technical Indicators	Expansion Options
Nominal Diameter	DN50-DN1200	Custom DN1400-DN2000 (engineering evaluation required)
Pressure Class	PN10/PN16	Upgradable to PN25 (2.5MPa)
Body Material	304 stainless steel/ductile iron	316L stainless steel, duplex steel 2205 (for severe corrosion)
Sealing Standard	EN12266 Class A	API 607 fire certification (metal seal redundancy design)
Testing Standard	API 598 (1.5x shell hydrostatic/1.1x sealing test)	Low-temperature testing (-40℃, material upgraded to 304L)
Certification System	CE, ISO 9001, WRAS, ACS	LR/DNV-GL classification, NSF61 (drinking water)

Product Overview

IV. Manufacturing Processes and Quality Control

(A) Precision Processing Flow

Valve Body Casting and Treatment:
- Ductile iron valve bodies use lost foam casting, annealed at high temperature to relieve stress, with graphite spheroidization rate ≥90%. Internal flow paths are milled by CNC machining centers to a roughness of Ra≤6.3μm;
- 304 stainless steel valve bodies adopt investment casting, with surface pickling and passivation to ensure compliance with intergranular corrosion tests (ASTM A262 E method).
Disc and Seat Assembly:
The disc undergoes dynamic balance testing (residual unbalance ≤10g·cm), and the seat-to-body interference fit clearance is controlled at 0.02-0.05mm. Each valve must pass 1.5x nominal pressure shell testing (30-minute hold) and helium sealing tests (leakage rate ≤1×10⁻⁴mbar·L/s).
Full-Process Quality Traceability:
Key components (body, stem, disc) are accompanied by heat lot numbers and chemical composition reports, supporting third-party PMI testing. Finished products must pass 100 cycle opening-closing tests with torque decay ≤15%.

(B) Certification and After-Sales Assurance

International Compliance: Certified to EU CE-PED, UK WRAS (drinking water), and French ACS (food contact), meeting 准入 requirements for different regions;
After-Sales Commitment: Provides an 18-month warranty period, with free replacement for leakage due to seal failure or structural issues, and lifelong technical support.

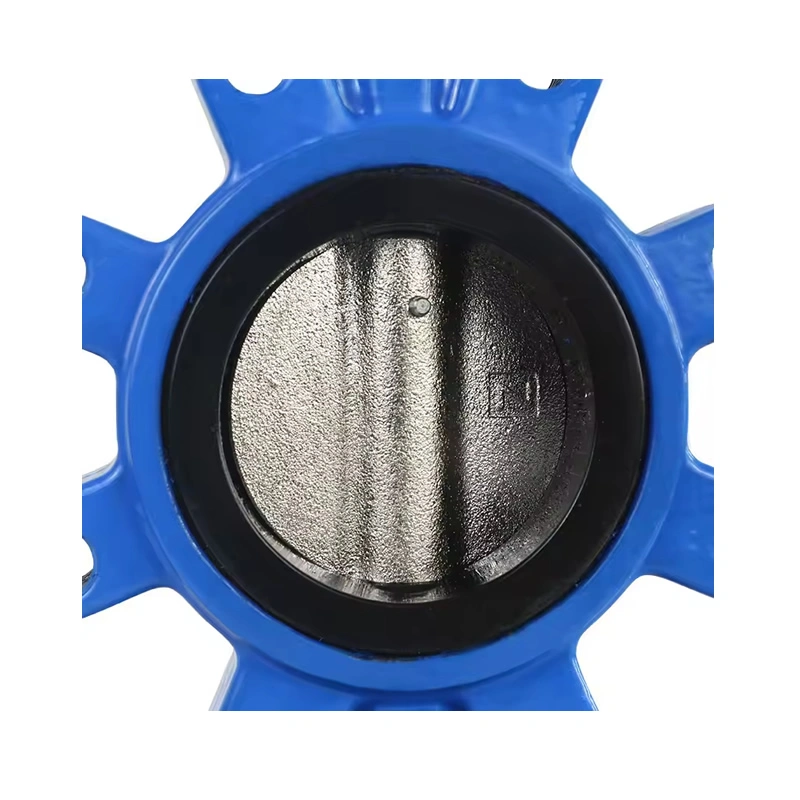

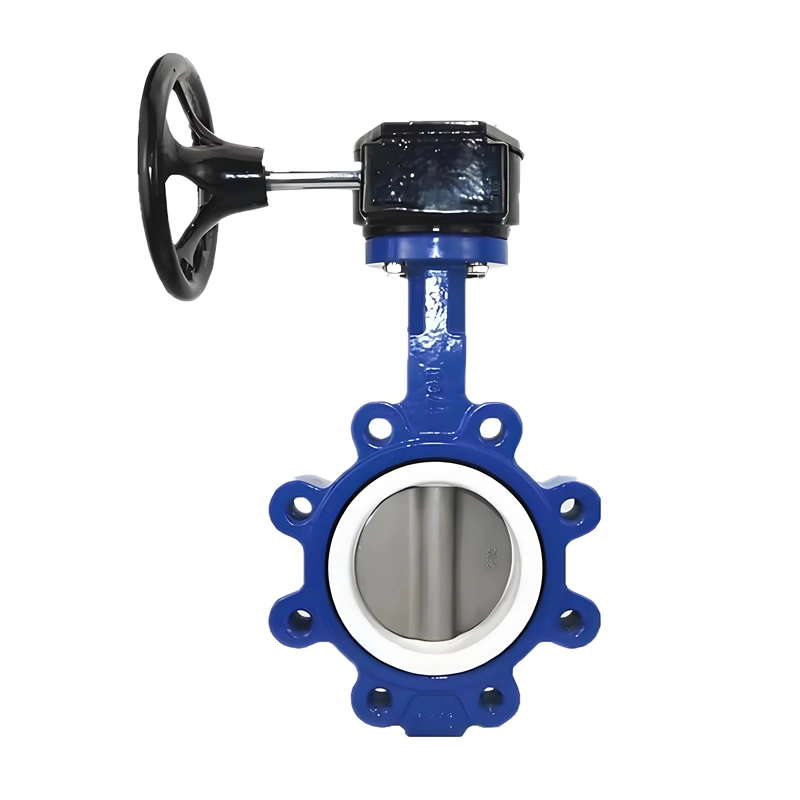

Valve Details

VI. TIANYU Brand Customization Advantages

TIANYU leverages the technical accumulation of Wenzhou’s valve industry cluster to provide end-to-end customization for lug type butterfly valves:

In-Depth Material Customization: Offers special materials like Hastelloy C276 (acid-resistant), fluorine lining (FEP) (strong corrosion-resistant), etc., with supporting corrosion simulation test reports;
Drive System Expansion: Supports upgrades from manual to electric (IP68 protection), pneumatic (with positioner), or explosion-proof actuators (Ex d IIC T6), adapting to automated production lines and hazardous areas;
Rapid Certification Response: Completes CE, WRAS, and other certification filings within 7 working days, provides on-site inspection by LR/ABS for marine requirements, and supports multiple standards like ASME B16.5, JIS, etc.;
Delivery and Service Assurance: Standard products (DN50-DN600) are in 72-hour stock, small-batch customization (≥1 unit) has a production cycle compressed to 10 days, global service centers offer 24-hour fault response, and critical spare parts are air-delivered within 48 hours.

Application

V. Typical Application Scenarios

(A) Municipal Water Supply/Drainage Systems

Drinking Water Transmission: DN300 304 stainless steel butterfly valve with EPDM sealing applied in a prefecture-level city water main, achieving 2 consecutive years of zero leakage under PN16 pressure, compliant with WRAS certification;
Sewage Treatment: DN600 ductile iron butterfly valve with epoxy coating resists hydrogen sulfide corrosion in sewage pipelines, with manual operation response time ≤10 seconds for emergency interception during rainy seasons.

(B) Industrial Circulation Systems

Power Plant Cooling Water: DN800 butterfly valve used in 300MW unit condenser circulating water pipes, with 304 stainless steel resisting 80℃ hot water scouring, combined with gearbox drive for DCS system remote regulation;
Petrochemical Pipelines: DN200 butterfly valve (NBR sealing) passes API 598 airtightness tests in refinery gas pipelines, ensuring safe shut-off of flammable and explosive media.

(C) Construction and Energy

HVAC: DN150 lug type butterfly valve installed in commercial complex chilled water pipe networks, with EPDM sealing achieving compression set ≤5% at 70℃, reducing system energy consumption by 12% compared to traditional valves;
District Heating: DN400 ductile iron butterfly valve used in northern heating networks, with gearboxes equipped with antifreeze grease to ensure reliable operation during -10℃ to 120℃ temperature cycles.
