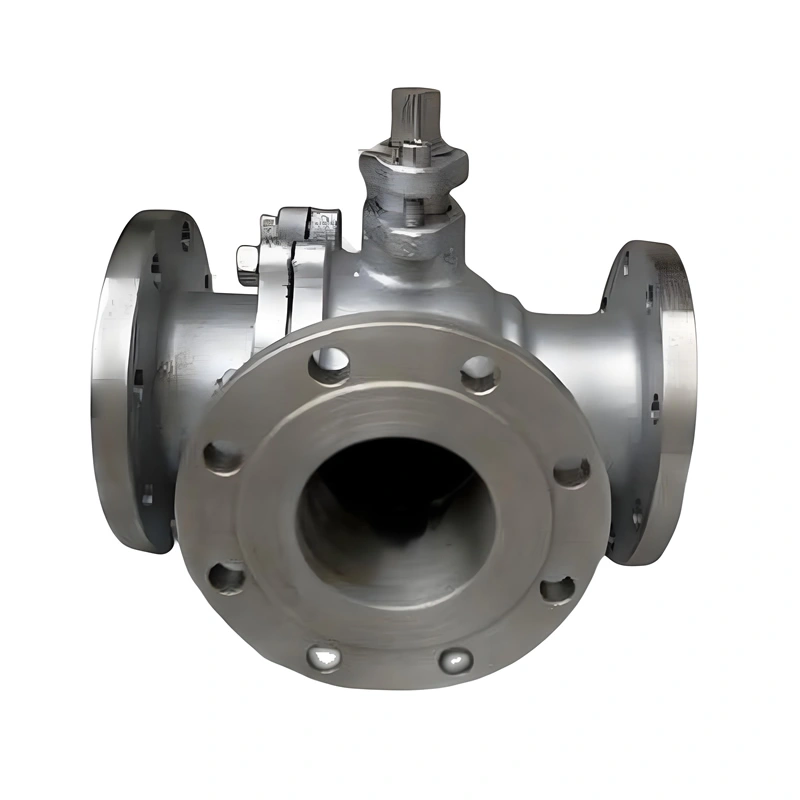

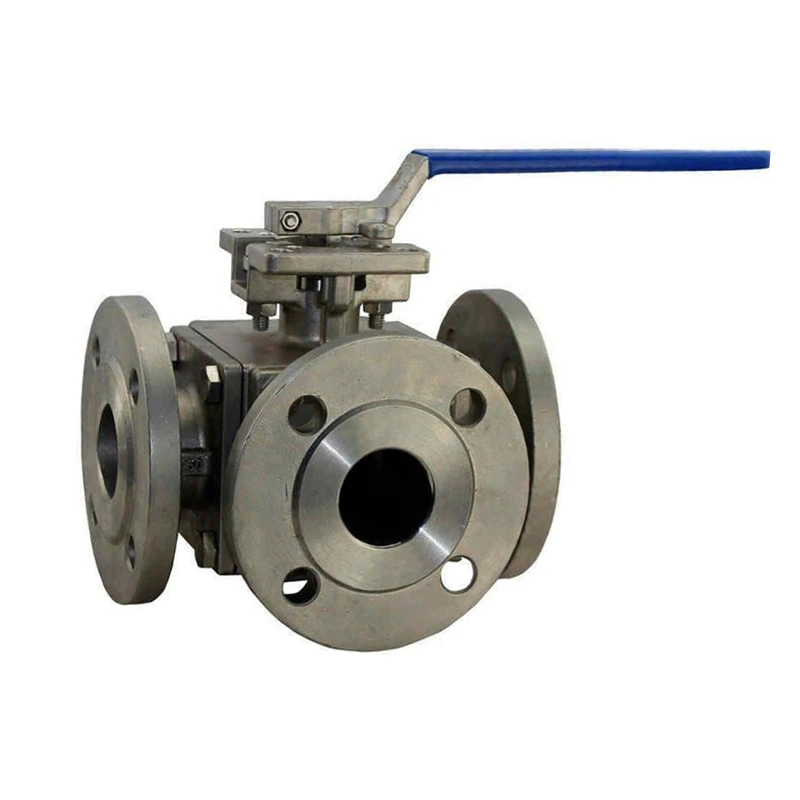

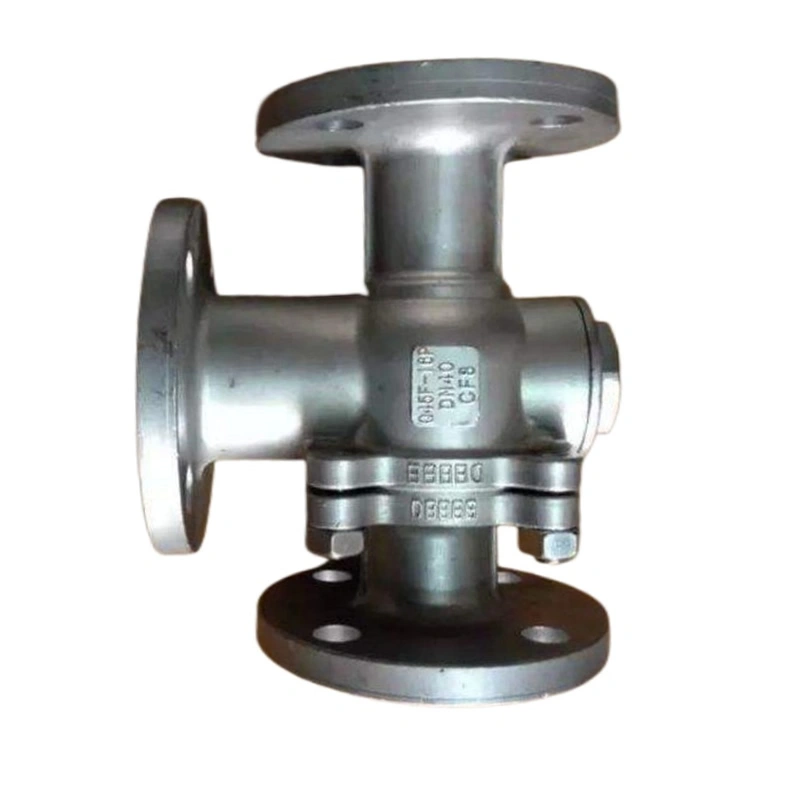

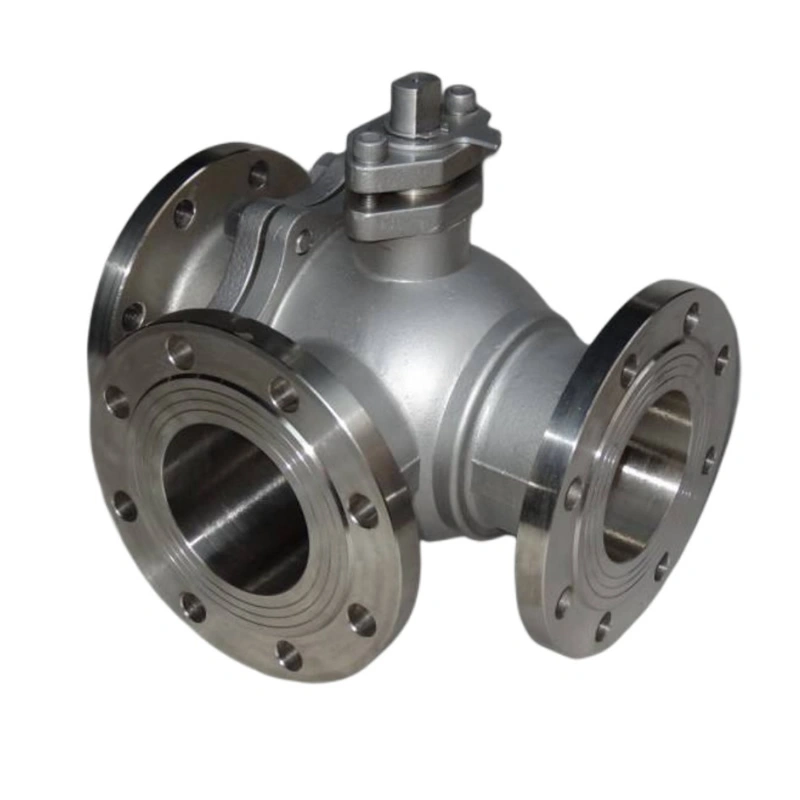

Flange 3 Way Ball Valve T/L Type Cast Stainless Steel 304 316 DN15-300 Flange 3-Way Ball Valve for Water Oil Gas

Port Size:DN15~300

structure:BALL

application:Industry

power:Manual

customized support:OEM, ODM

temperature of media:Normal Temperature

brand name: tianyu

media:Water

Product name:Flange 3 Way Ball Valve

Share this page:

Related Products

DN100 PN16 Stainless Steel Electric PTFE Metal Seal 3 Way Flange Ball Valve

TIANYU DN100 PN16 electric ball valve: stainless steel, metal seal, flange connection. Handles -40~425℃, PN1.0~32.0MPa, media like oil. Features electric actuation, manual override. Ideal for oil, industrial, power sectors. Reliable, durable, customizable—automated flow control for critical systems.

Electric Actuator T L Type WCB CF8M Stainless Steel Flange Motorized 3 Way Ball Valve

TIANYU T/L type electric 3-way ball valve integrates structural innovation and drive technology, delivering versatile and reliable fluid control through material optimization and precision manufacturing. Customizable solutions precisely meet diverse Working condition needs, enabling automated and efficient pipeline operations for industrial clients.

Flange 3 Way Ball Valve T/L Type Cast Stainless Steel 304 316 DN15-300 Flange 3-Way Ball Valve for Water Oil Gas

Pneumatic 3-way Ball Valve ISO ANSI Stainless Steel Reversing Valve Switching Valve

TIANYU pneumatic 3-way ball valves combine precision forging with flow control technology, offering L/T structural innovation, full-scenario drive adaptability, and customized services. This empowers global industrial clients to achieve automated, efficient fluid direction control across conventional to harsh applications.

Description

Specification

TIANYU Flange 3-Way Ball Valve: T/L Type Cast Stainless Steel Industrial Fluid Control Solution

I. Technical Overview

TIANYU flange 3-way ball valve features T/L type dual structure, covering DN15~DN300 sizes, suitable for water, oil, gas and other media diversion, confluence and direction control. Made of 304/316 cast stainless steel, with nominal pressure PN16~PN64 (150~600LB) and working temperature -20℃~232℃, it is widely used in chemical, petroleum, water treatment and HVAC industries. The L-type structure realizes 90° direction switching, while the T-type supports arbitrary connection of three channels, complying with ISO, ANSI, DIN standards for flexible fluid control.

II. Core Features

(A) T/L 3-Way Structure

L-Type Flow Control: Connects two perpendicular channels for direction switching (e.g., pipeline diversion), with ±0.5° accuracy;
T-Type Diversion/Confluence: Connects three channels for medium splitting (1 inlet to 2 outlets) or mixing (2 inlets to 1 outlet), with flow resistance coefficient ≤0.8;
Bidirectional Sealing: PTFE+carbon fiber seats with spring preloading ensure bubble-tight sealing (leakage ≤1×10⁻⁹m³/s), API 598 Class IV compliant.

(B) Material & Design Advantages

Component	Material	Key Advantage
Body/Ball	304/316 Cast SS	Tensile ≥515MPa, intergranular corrosion resistance
Seat	PTFE/PPL	-20℃~232℃ resistance, 2x longer sealing life
Stem	17-4PH SS	HRC30-35 hardness, blowout-proof design
Seals	Viton Fluororubber	Chemical resistance, ≤10% compression set

(C) Operation & Maintenance

Manual Drive: Standard extended handle (≤120N·m), gearbox option for DN150+ models, 50% less effort;
Quick-Disassembly: Symmetric bolted bonnet allows 15-min seal replacement, 40% higher maintenance efficiency;
Longevity: 50,000-cycle tested with ≥95% sealing retention (industry standard: 30,000 cycles).

Product Overview

III. Manufacturing & QC

(A) Precision Casting

Body Forming: Silica sol casting, surface roughness Ra≤12.5μm, UT-tested for defects (≥Φ2.0mm);
Ball Machining: CNC turned and ground to ≤0.01mm roundness, ≤0.02mm fit with seats;
Surface Treatment: Passivated (ASTM A967), optional epoxy coating (200μm) for marine environments.

(B) Quality Control

Testing: 1.5x hydrostatic (30-min hold), 1.1x gas-tight test (helium leakage ≤1×10⁻⁹m³/s);
Certifications: CE, SIL certified, API 6D compliant models available;
Capacity: 50,000 pcs/month, 7-day delivery for standard orders.

Application

IV. Applications

Chemical reactor material switching: T-type for precise diversion, ±1% error with DCS;
Oil pipeline direction control: L-type in sulfurous crude, 316 SS lasts 5 years;
HVAC water systems: DN200 T-type for flow regulation, 12% energy saving;
Food-grade applications: 304 electropolished body (Ra≤0.4μm), FDA compliant for CIP systems.
