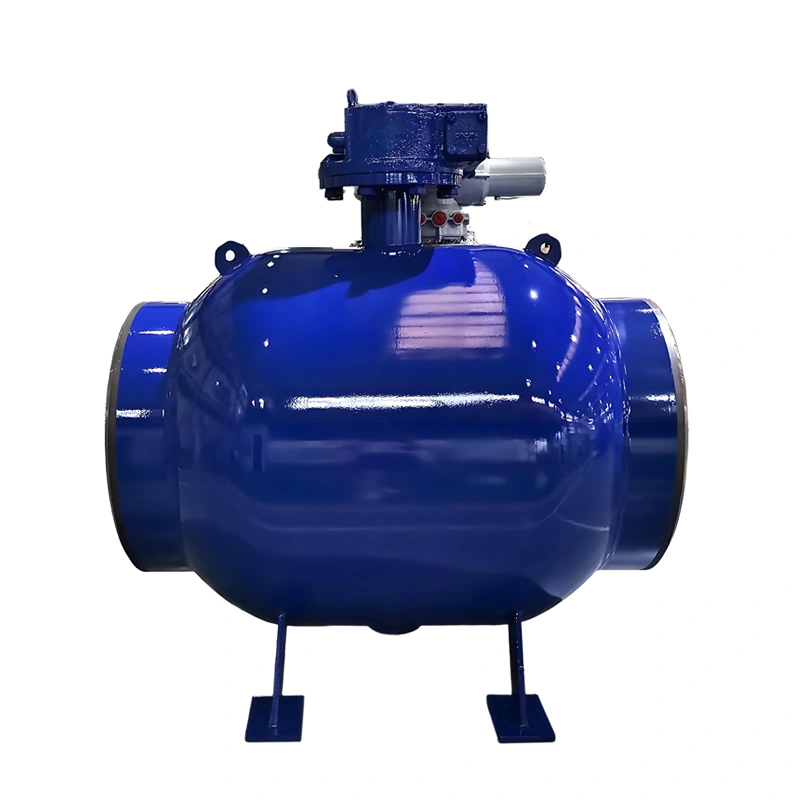

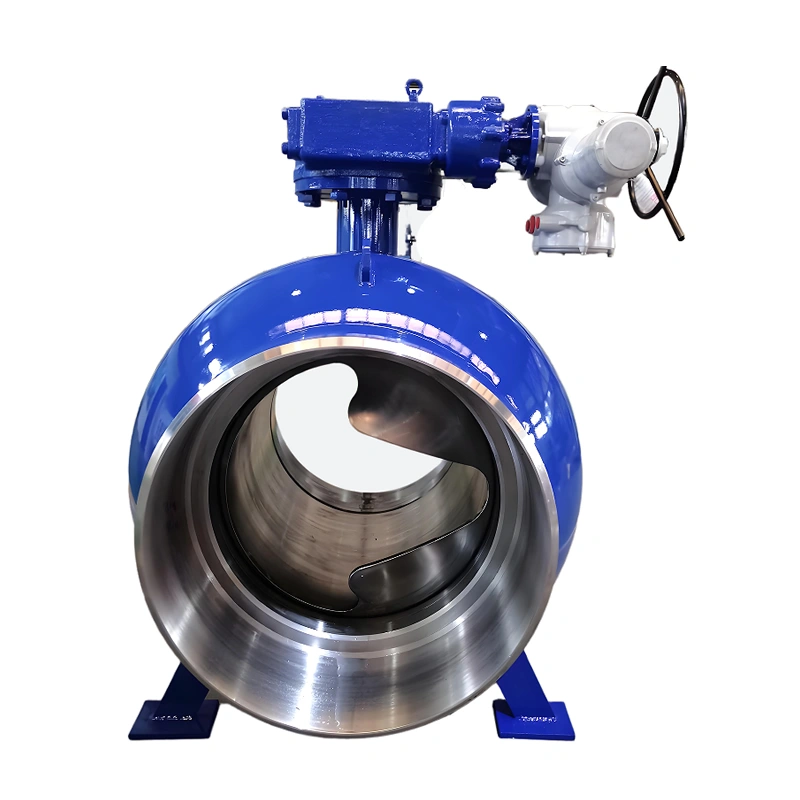

Electric Worm Gear Wcb Carbon Steel Regulating Control Fully Welded Ball Valve Pn25 Dn800 Dn1200

Port Size:2″~56″

structure:BALL

application:General

power:electric actuator

customized support:OEM, ODM, OBM, Software reengineering

temperature of media:Normal Temperature

brand name:TIANYU

media:Oil Water Steam

Body material:Cast steel

Temperature:-29 to +200

Size:DN50 To DN1400

Connection:Welded

Working pressure:PN16-PN42

Seal Material:PTFE

Share this page:

Related Products

Class150 DN300-DN1000 Large Diameter WCB Carbon Steel Full Welded Trunnion-Mounted Ball Valve

TIANYU Class 150 DN300-DN1000 WCB full welded trunnion-mounted ball valve: worm gear operated, soft-sealed, -29℃~300℃, ANSI Class VI leakage. Ideal for municipal, oil/gas, chemical, power sectors needing reliable large-diameter flow control. API 6D compliant, cost-effective, low maintenance, with superior leak-tightness.Customize with 304/316 stainless steel body, RPTFE/PEEK seals, Class 300/600 pressure rating, fire-safe design (API 607), NACE MR0175 for sour service, or electric/pneumatic actuator. Tailor to your media, pressure, temperature, and installation requirements.

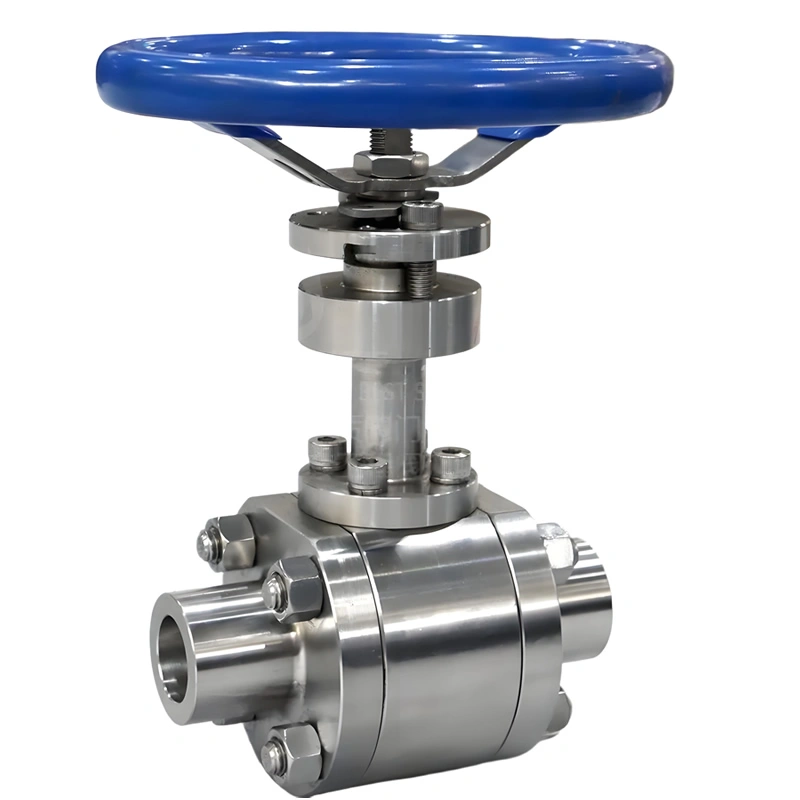

API6D CE ANSI 800LB 3/4” SS304 Socket Weld Soft-Sealed Ultra-Low Temperature Floating Ball Valve

TIANYU 800LB 3/4” SS304 socket weld floating ball valve: soft-sealed, -196℃~150℃, ANSI Class VI leakage. Ideal for LNG, air separation, cryogenic chemical, and refrigeration sectors needing small-bore, high-pressure cryogenic control.Customize with 316L/316LN for higher corrosion resistance, cryogenic elastomers for -100℃~-150℃ flexibility, extended bonnet for frost protection, or API 607 fire-safe seal. Tailor to your cryogenic media, temperature, and connection needs.

API ASME BS DIN API6D DN15-DN1000 Carbon Steel SS Wcb CF8 Anti-Explosion Ball Valve for Petroleum Oil Gas

API ASME BS DIN API6D DN15-DN1000 Carbon Steel SS Wcb CF8 Anti-Explosion Ball Valve delivers reliable flow control for oil, gas, and industrial systems. It features WCB/316 materials, Class 150 ~ 600 pressure rating, fire-safe (API 607) and anti-static protection, complying with global standards. Customizable in size (DN15-DN1000), seat type (soft/metal), actuation (manual/electric/pneumatic), and DBB functionality to meet specific pipeline, refinery, or gas processing needs.

PN16 Thermal Insulation Jacketed Ball Valve Steam Stainless Steel Flange Ball Valve

TIANYU Thermal Insulation Jacketed Ball Valve Steam Stainless Steel Flange Ball Valve high-quality thermal insulation jacketed ball valve, with floating ball design and flanged connections, ensures reliable control of high-viscosity, high-temperature media. Its jacketed structure prevents solidification, while robust materials and seals extend service life. Ideal for petroleum, chemical, and pharmaceutical sectors. Customizable in materials (WCB/CF8), jacket type, and actuation to meet specific thermal and operational needs.

Description

Specification

TIANYU full-welded electric worm gear gate valve, through advanced welding technology and integrated design, delivers reliable fluid control for harsh industrial conditions. With deep customization and comprehensive services, it helps clients achieve safe, efficient, and intelligent system operations, setting a benchmark in high-pressure fluid control applications.

Product Overview

TIANYU Full-Welded Electric Worm Gear WCB Carbon Steel Gate Valve: The Sturdy Choice for Industrial Fluid Control

I. Core Analysis of Full-Welded Technology

(A) Advantages of Welding Processes

TIANYU full-welded electric worm gear WCB carbon steel gate valve abandons traditional flange connections, adopting a full-welded structure. The welding combines automated TIG (Tungsten Inert Gas) and SAW (Submerged Arc Welding) processes:

Automated TIG Welding is used for root pass welding of critical valve parts, precisely controlling heat input to ensure fusion quality. It forms a uniform, dense weld root to avoid defects like porosity and incomplete penetration.
SAW Welding is applied for filling and capping, featuring high efficiency, beautiful weld formation, and large penetration depth, ensuring high-strength and excellent mechanical properties of the welds.

This combined welding process integrates the valve body and bonnet into a solid whole, fundamentally eliminating potential leakage hazards from flange connections and improving sealing performance by over 60%.

(B) Welding Quality Control

TIANYU establishes strict quality control systems:

Pre-Welding Treatment: WCB carbon steel base materials undergo rigorous pretreatment, including surface grinding and cleaning to remove oil, rust, and impurities, ensuring cleanliness of welding joints. Environmental temperature and humidity are precisely controlled.
Real-Time Monitoring: Weld tracking systems monitor weld position and parameters (current, voltage, speed) in real time, automatically adjusting to ensure uniform weld formation.
Nondestructive Testing: All welds undergo 100% UT (Ultrasonic Testing) and RT (Radiographic Testing):
- UT detects internal defects like cracks and slag inclusions with high sensitivity.
- RT visually displays defect shape, size, and position, ensuring compliance with ASME BPVC standards.

II. Product Performance Enhancement Based on Full-Welded Technology

(A) Excellent Sealing Performance

The full-welded structure eliminates vulnerable sealing components like flange gaskets, avoiding leakage caused by gasket aging. It maintains zero leakage under high pressure (PN100, 10.0MPa) and high temperature (425℃), meeting strict requirements of industries like petrochemical and natural gas transportation. For example, in natural gas long-distance pipelines, zero leakage ensures safe and efficient transportation.

(B) High Strength and Long Service Life

Full-welded technology grants 30% higher structural strength than traditional flange valves, evenly bearing medium pressure and external loads to reduce stress concentration. Tested in high-temperature and high-pressure steam pipelines of the metallurgy industry, it withstands steam erosion and pressure fluctuations with a service life exceeding 10 years—1.5 times that of conventional valves—reducing replacement and maintenance costs.

(C) Adaptability to Harsh Environments

The integrated full-welded design, combined with surface anti-corrosion treatment (e.g., epoxy coating), enhances resistance to corrosion and environmental erosion. Eliminating flange gaps reduces corrosion medium infiltration, making it ideal for coastal chemical plants and offshore oil platforms, where it withstands seawater corrosion and sea breeze erosion for long-term stable operation.

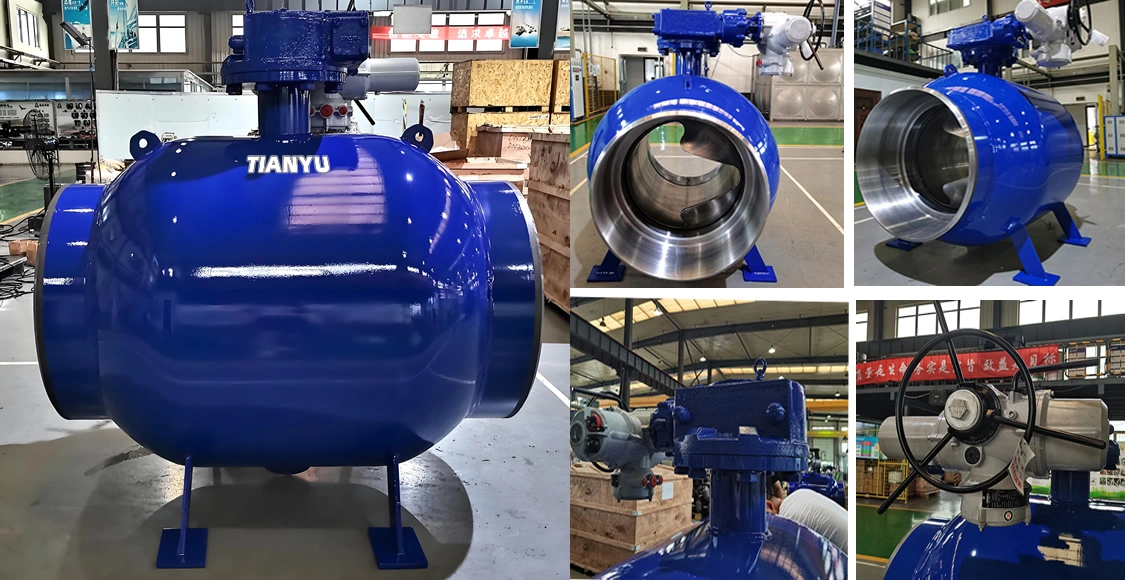

Valve Details

III. Manufacturing Processes and Additional Advantages

(A) Precision Manufacturing

Body Casting: Resin sand casting with high-temperature annealing to relieve internal stress, ensuring uniform microstructure and stable performance.
Disc Processing: 1Cr13 base with Stellite overlay, sealing surface hardness HRC45-50, resisting erosion and wear in particle-containing media.
Drive System: Integration of electric actuator and worm gear reducer supports 4-20mA signal regulation and multiple bus protocols for industrial automation.

(B) Performance Indicators

Parameter	Specifications
Pressure Rating	PN16~PN100 (1.6~10.0MPa)
Temperature Range	-29℃~425℃
Flow Resistance	Coefficient ≤0.15 (18% energy saving)
Weld Detection	100% UT+RT, compliance with ASME BPVC

Application

IV. TIANYU Brand Customization Advantages

TIANYU provides end-to-end customization based on technical accumulation:

Technical Customization: Non-standard pressure (e.g., PN250), temperature (-46℃~550℃), diameter (DN700~DN1200), explosion-proof actuators (Ex d IIC T6), and flange standards (DIN/GOST), with 3D modeling and CFD analysis.
Efficient Delivery: 20-day standard lead time, 10-day turnaround for small batches (MOQ 50 units), 48-hour emergency production.
Global Service: 18-month warranty, 24/7 response from 3 regional service centers, 72-hour airfreight for spare parts, digital installation manuals, and remote maintenance support.
