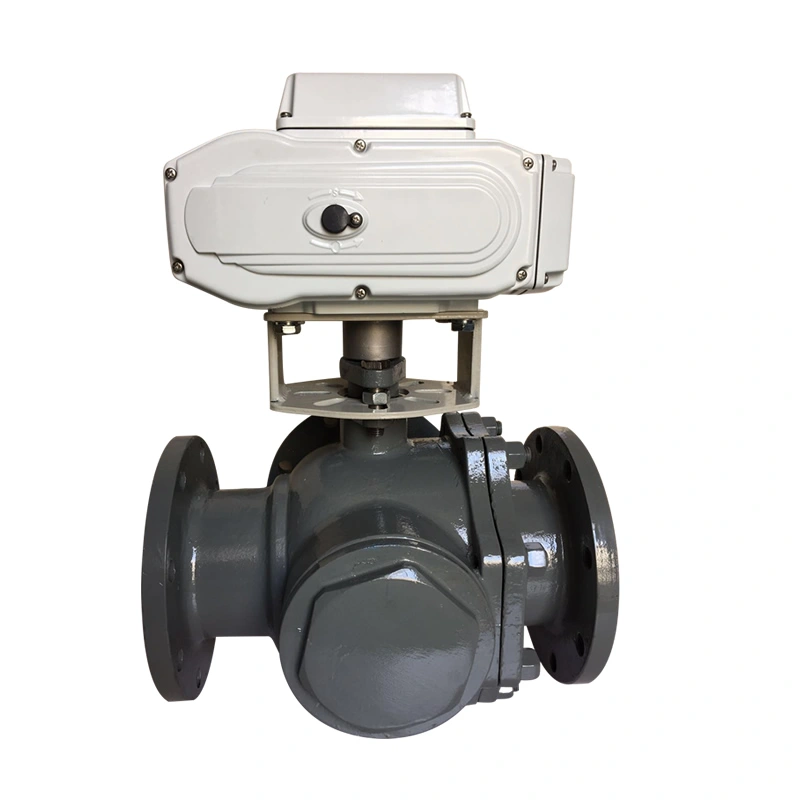

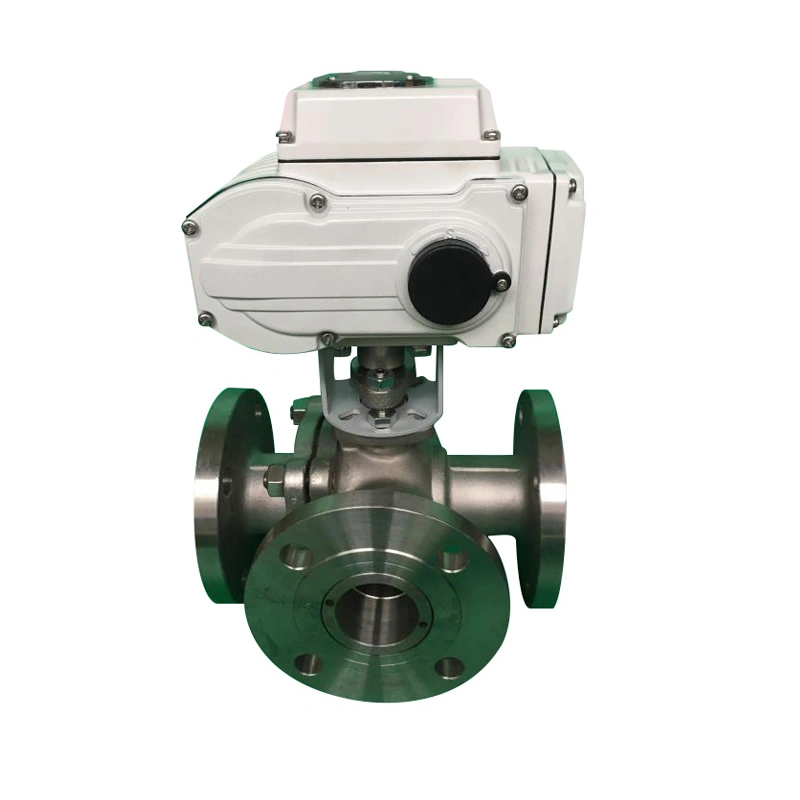

Electric Actuator T L Type WCB CF8M Stainless Steel Flange Motorized 3 Way Ball Valve

Port Size:Standard, 1/2′ -24′(DN15-600)

structure:BALL

temperature of media:Low/Medium /Normal Temperature

media:water gas oil etc.

Power:Motorized, Motor Ball Valve

Media:Water, Air, Gas, Oil, Liquid

rotation angle:0-90 degree

Power voltage:AC100V AC220V AC380V DC24V DC12V AC24V

Port Size:2″~12″, DN50~DN400

Control Mode:On Off Type or Regulation Type

Pressure:PN16, PN25

Share this page:

Related Products

Electric Actuator T L Type WCB CF8M Stainless Steel Flange Motorized 3 Way Ball Valve

TIANYU T/L type electric 3-way ball valve integrates structural innovation and drive technology, delivering versatile and reliable fluid control through material optimization and precision manufacturing. Customizable solutions precisely meet diverse Working condition needs, enabling automated and efficient pipeline operations for industrial clients.

Flange 3 Way Ball Valve T/L Type Cast Stainless Steel 304 316 DN15-300 Flange 3-Way Ball Valve for Water Oil Gas

TIANYU flange 3-way ball valve features T/L type dual structure, covering DN15~DN300 sizes, suitable for water, oil, gas and other media diversion, confluence and direction control. complying with ISO, ANSI, DIN standards for flexible fluid control.

Pneumatic 3-way Ball Valve ISO ANSI Stainless Steel Reversing Valve Switching Valve

TIANYU pneumatic 3-way ball valves combine precision forging with flow control technology, offering L/T structural innovation, full-scenario drive adaptability, and customized services. This empowers global industrial clients to achieve automated, efficient fluid direction control across conventional to harsh applications.

Stainless Steel Ball Valve 5″ Motorized Handle Three-way Valve with Pneumatic Drive DN200mm 3 Way Flanged Ball Valve

TIANYU focuses on forging technology and fluid control expertise, providing global industrial clients with 3-way ball valve solutions from conventional to harsh conditions. Through efficient, safe, and customized designs, it helps pipeline systems achieve precise diversion and automated control.

Description

Specification

TIANYU T/L Type Electric 3-Way Ball Valve: Versatile Solution for Industrial Fluid Automation

I. Technical Overview

TIANYU T/L type electric 3-way ball valve is a high-end automated device designed for medium diversion, confluence, and direction switching in industrial pipelines, covering DN15~DN600 (1/2″~24″) with T-type and L-type structures. The T-type enables arbitrary connection of three channels for splitting/mixing, while the L-type achieves 90° direction switching between two channels, suitable for water, gas, oil, and other media. Made of WCB cast steel or CF8M stainless steel, with PN16~PN25 pressure rating and low-to-medium temperature resistance, the electric actuator supports 220VAC, 24VDC, and other power inputs, widely used in petrochemical, HVAC, and water supply systems.

II. Core Product Features

(A) T/L Dual-Mode 3-Way Structure

T-Type Diversion/Confluence: Three-channel design supports “1-inlet 2-outlet” or “2-inlet 1-outlet” for medium distribution/mixing, ideal for chemical reactor material switching and boiler feedwater systems;
L-Type Direction Switching: Vertical connection of two channels for medium redirection (e.g., hot standby pipeline switching), with ±0.5° switching accuracy;
Low Flow Resistance: Flow path complies with ASME B16.34, resistance coefficient ≤0.9, reducing pressure loss by 35% compared to globe valves, saving ~15,000 kWh annual pumping energy.

(B) Efficient Electric Drive System

Drive Parameter	Specification	Application
Power Supply	AC100V/220V/380V, DC24V/12V	Compatible with industrial grids and automation systems
Operation Time	10~30s (adjustable by size)	Quick response for emergency shutdown
Control Mode	On-Off/Regulating (4-20mA/0-10V)	Suitable for DCS systems or local manual control
Protection Class	IP65 (dustproof and water jet proof)	Adapt to humid and dusty industrial environments

(C) Material & Structural Advantages

Body Material: WCB cast steel (tensile ≥485MPa) for standard applications, CF8M stainless steel (316L) for acid-alkali resistance in chemical media;
Sealing System: PTFE-reinforced seat + Viton fluoroelastomer seals, leakage ≤0.01% of Kvs, compliant with ISO 5208 Class IV;
Actuator Design: Anodized aluminum housing with built-in overload protection and limit switches, 100,000 cycles trouble-free operation.

III. Key Technical Attributes

Parameter Category	Specifications	Expansion Options
Size Range	DN15~DN600 (1/2″~24″)	Custom oversized DN600+
Pressure Rating	PN16, PN25 (1.6~2.5MPa)	Optional PN40~PN100 high pressure
Temperature Range	-20℃~232℃ (standard)	Cryogenic -46℃, high-temperature 350℃
Connection Type	Flange (ANSI/DN/JIS)	Welded, threaded connection customization
Certifications	CE, ISO 9001	Optional API 6D, SIL functional safety

Product Overview

IV. Manufacturing Processes & QC

(A) Precision Manufacturing

Body Forming:
- WCB cast steel via resin sand casting, CF8M stainless steel via lost wax precision casting, UT-tested for internal defects (sensitivity ≥Φ2.0mm);
- Body blanks annealed to relieve stress, machined surface roughness Ra≤12.5μm.
Core Machining:
- T/L-type cores processed by 5-axis CNC, cut angle error ≤±0.5°, fit gap with seat ≤0.03mm for sealing precision;
- Stainless steel cores electropolished (Ra≤0.8μm), 2x corrosion resistance improvement.
Actuator Assembly:
- Modular motor-gearbox design, gear meshing gap ≤0.05mm, no-load noise ≤55dB;
- Actuator connected to body via ISO 5211 standard bracket, installation error ≤1°.

(B) Quality Control

Pressure Test: 1.5x rated pressure hydrostatic test (30-min hold), air tightness test leakage ≤1×10⁻⁹m³/s;
Life Test: Sampled for 50,000 cycles with ≥95% sealing retention (Far beyond the industry 30,000 cycles);
Certifications: CE certified, some models comply with API 598, support third-party inspection (SGS, BV).

Application

V. Application Scenarios

Petrochemical: T-type for distillation column feed diversion, L-type for reactor material redirection; 316L lasts 8 years in sulfurous media;
HVAC: DN200 T-type for chilled water flow regulation, 18% energy saving with temperature control; IP65 for humid machine rooms;
Water Supply: L-type as pump inlet/outlet diverter, quick response to water level changes; PN25 suitable for high-rise building high-pressure water supply.
