Cast Steel WCB DN100 PN16 LUG END Knife Gate Valve With Pneumatic Actuator

Product Description:

Nominal Diameter: DN100
Bore: Full Bore
Nominal Pressure: PN16
Material: WCB
Operation: Pneumatic Actuator
Design Standard: API600/API602/API6D
Test/Inspection: API598
End Connection: LUG
Lug standard: EN1092-1,ASME/ANSI B16.5
Top Flange: ISO5210 /ISO5211

Share this page:

Related Products

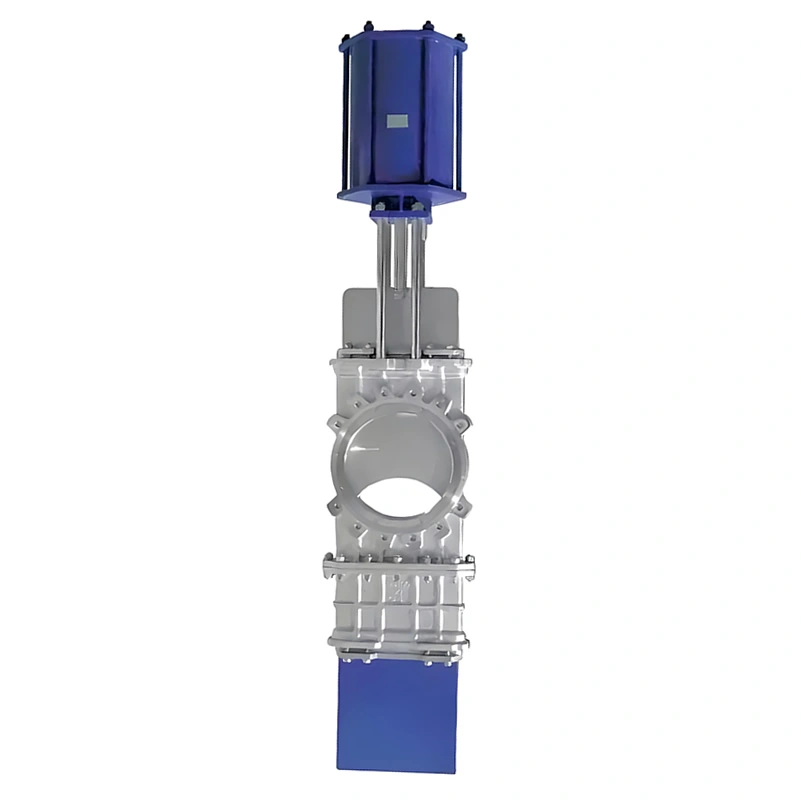

DN50-DN400 PN10/PN16 Pneumatic Through Conduit Knife Gate Valve Applied to Slurry Conveying Pipelines

TIANYU DN50-DN400 PN10/PN16 Pneumatic Through Conduit Knife Gate Valve offers abrasive-resistant ductile iron/stainless steel construction, through conduit design, ANSI Class IV leakage, and 0.4–0.6MPa pneumatic actuation. Compliant with ISO 10631/ASME B16.5, it excels in metallurgical slurry, mining, chemical, and power sectors—delivering clog-free operation, durability, and automated efficiency. Backed by a three-year warranty.

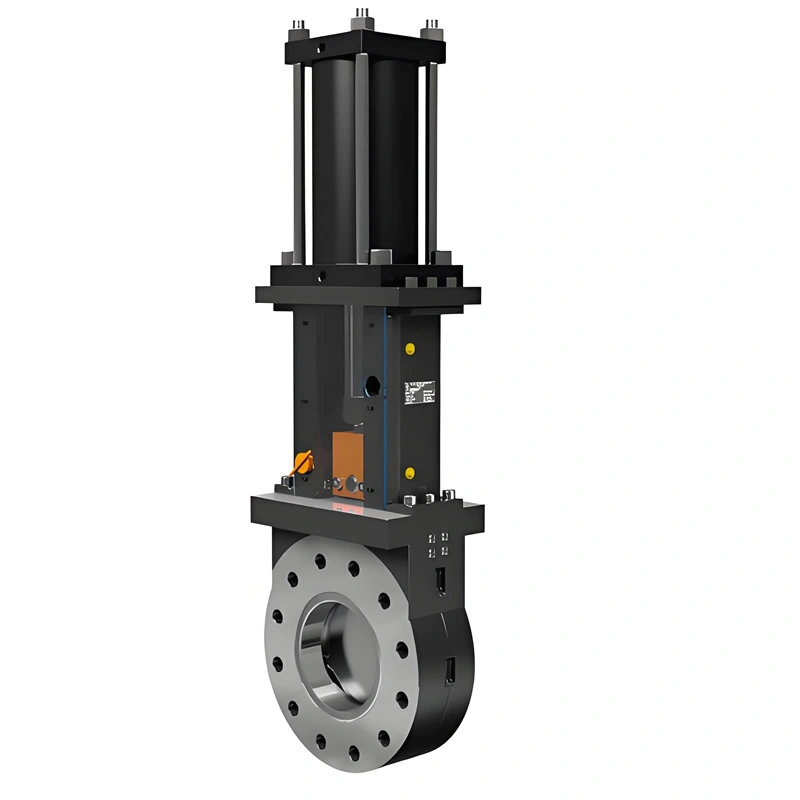

Heavy-duty Abrasive-Resistant Industrial Knife Gate Valves With Petroleum Equipment Zero Leakage Slurry Valve

TIANYU Heavy-duty Abrasive-Resistant Industrial Knife Gate Valves With Petroleum Equipment Zero Leakage Slurry Valve offers DN50-DN1200 size, PN10-PN25 pressure, -20℃-300℃ temp range, and ANSI Class IV-VI leakage. Built for abrasive/solid-laden media, it features sharp blade gates, wear-resistant materials, and multiple operation modes. Compliant with API 600/ISO 10631, ideal for mining, wastewater, chemical, and power sectors.

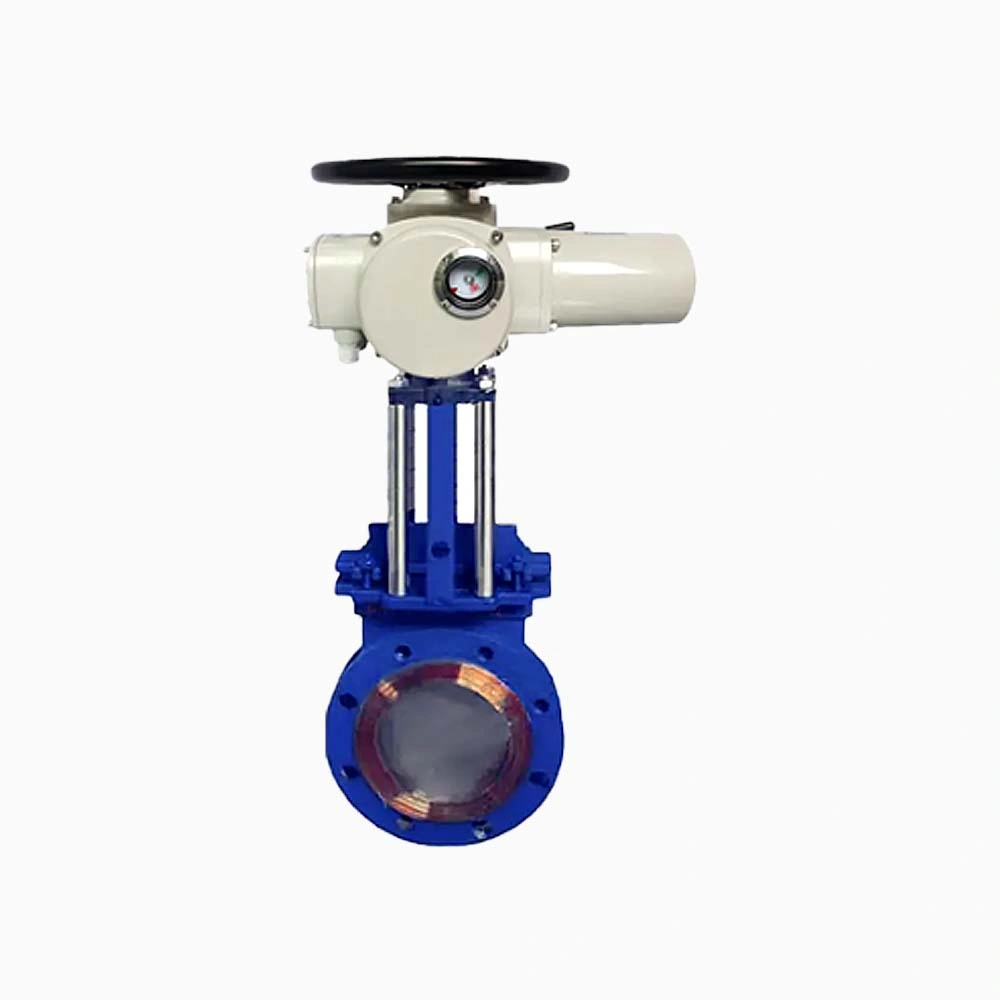

DIN/ASME/API DN100 Electric Knife Gate Valve with WCB Wafer Flange for Water Control in Gas Media Applications

TIANYU DN100 electric knife gate valve with WCB wafer flange excels in controlling water, gas, dust, and particles. It features a shear gate, compact wafer design, precise electric control (4-20mA/Modbus), and WCB durability, suiting municipal, mining, and chemical sectors. Customizable in size (DN50-DN600), voltage (AC 380V/DC 12V), seal type (metal/PTFE), and protection (IP67/EXD) to meet specific application needs.

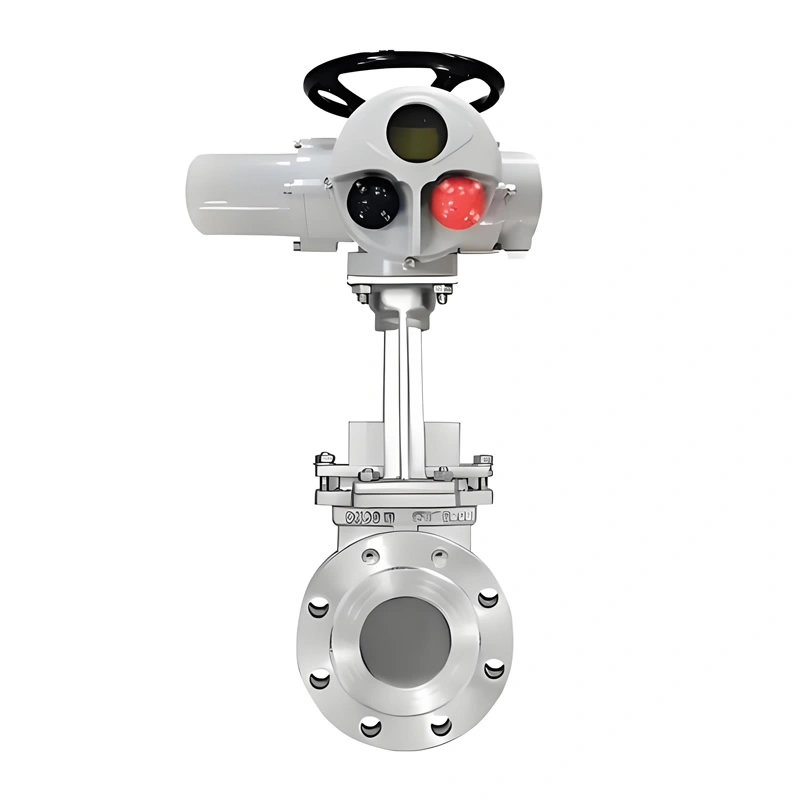

4inch Stainless Steel Flanged Low Pressure Knife Gate Valve Driven by Electric Actuator

Electric Actuator Knife Gate Valve stainless steel flanged knife gate valve with electric actuator excels in controlling slurries, wastewater, and solid-laden media. Its sharp gate prevents clogging, stainless steel resists corrosion, and electric actuation enables automated control. Ideal for mining, wastewater, and pulp industries. Customizable with 304/316 stainless steel, EPDM/PTFE seals, and voltage options, ensuring tailored performance for specific applications.

Description

Specification

Size Range	2″-48″(50mm-1200mm)
Temperature Range	‘-29 to 180 degree
Pressure Ratings	2 – 24″ (50 – 600mm) 150psi 30 – 36″ (750 – 1200mm) 100psi
Disc Materials	Stainless Steel,Hastelloy C, Monel,etc
Design Standard	MSS SP-81，ASME B16.34
Testing Standard	MSS SP-151
Face to Face	MSS SP-81
Applications	Power, Mining, Pulp & Paper, Cement, Carbon Black, Chemical,Wastewater
Body Materials	Cast Iron, Ductile Iron, Carbon Steel,Stainless Steel,Nickel Aluminum Bronze,etc
Shutoff Rating	Bidirectional or Unidirectional,Soft seated (zero Leak)metal seated(MSS SP-151)
Flange Drilling	ASME B16.5、EN 1092、GOST 33259
Certifications	CE、EAC、SIL3、ISO 19001
Operation	Wench, Worm Gear, Electric, Pneumatic,etc

Valve Details

High quality casting disc
Accurate processing the disc to ensure excellent sealing.Many big size disc we also have them in stock to ensure short delivery time
Yoke
New design beautiful yoke
