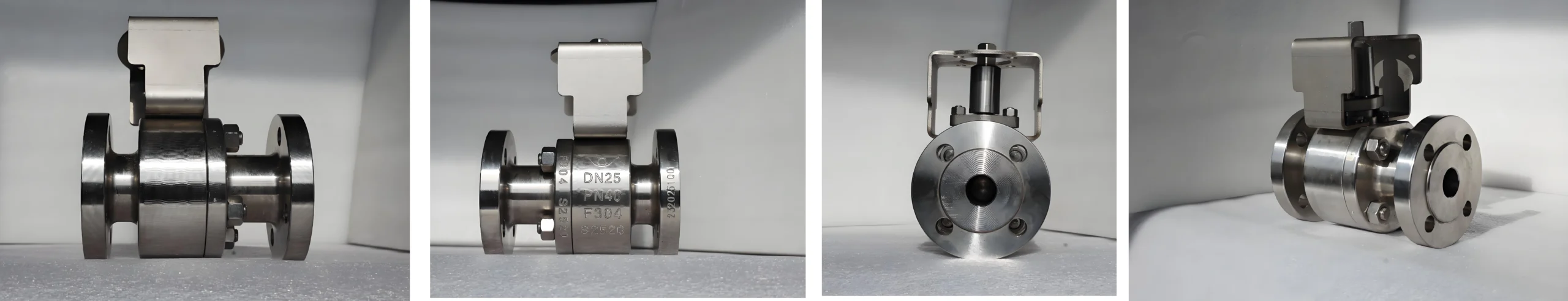

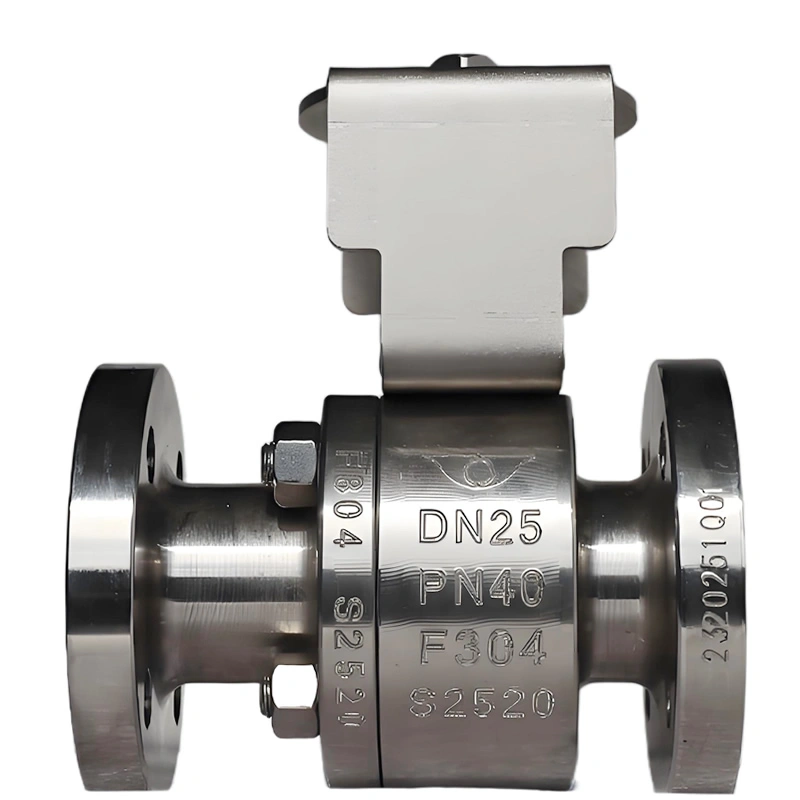

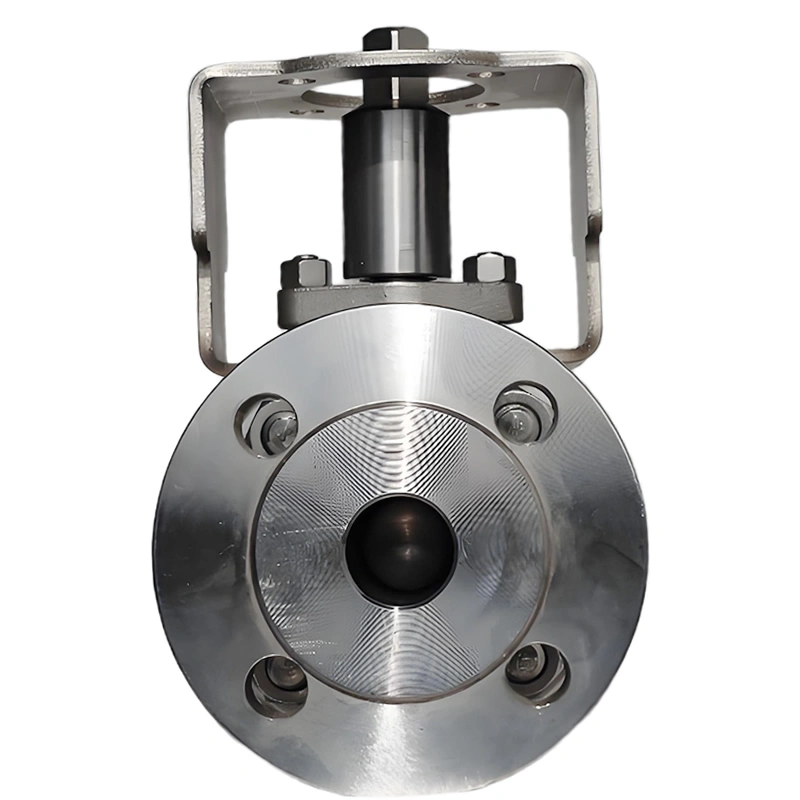

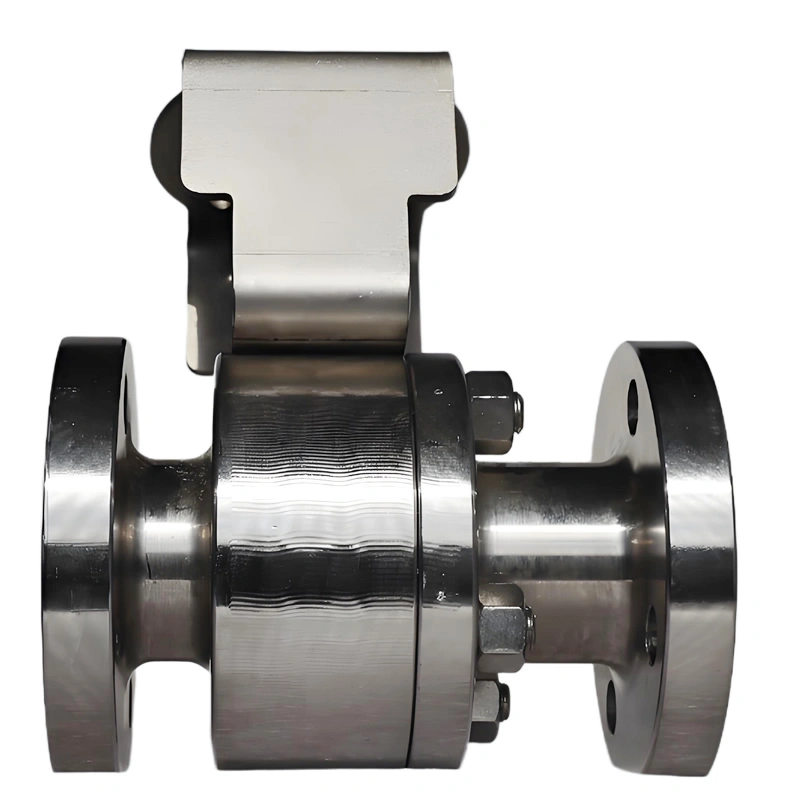

API DN25 PN40 F304 Raised Face Flange Bare Stem Floating Ball Valve

Size Range: DN15 ~ DN200
Pressure Range: Class 1500 ~ 2500
Design Standards: API 6D, ASME B16.34, ASME B16.5
Material Standard: NACE MR0175 (Sour Service)
Body Material: Forged ASTM A182 F304 Stainless Steel
End Connections: RF / RTJ Flange (ASME B16.5)
Structure: 3-Piece, Full Port, Floating Ball
Temp Range: -196℃ ~ 232℃ (PTFE Seats)
Seat Leakage: API 598 Class VI
Fire Safe: API 607 5th Edition
Hydro Test: 1.5×PN (Shell), 1.1×PN (Seat)
Cycle Life: ≥5,000 Operations
Flange Standard: ANSI B16.5 / JIS B2202
Media: W.O.G. (Water, Oil, Gas)
