Triple Offset Butterfly Valves

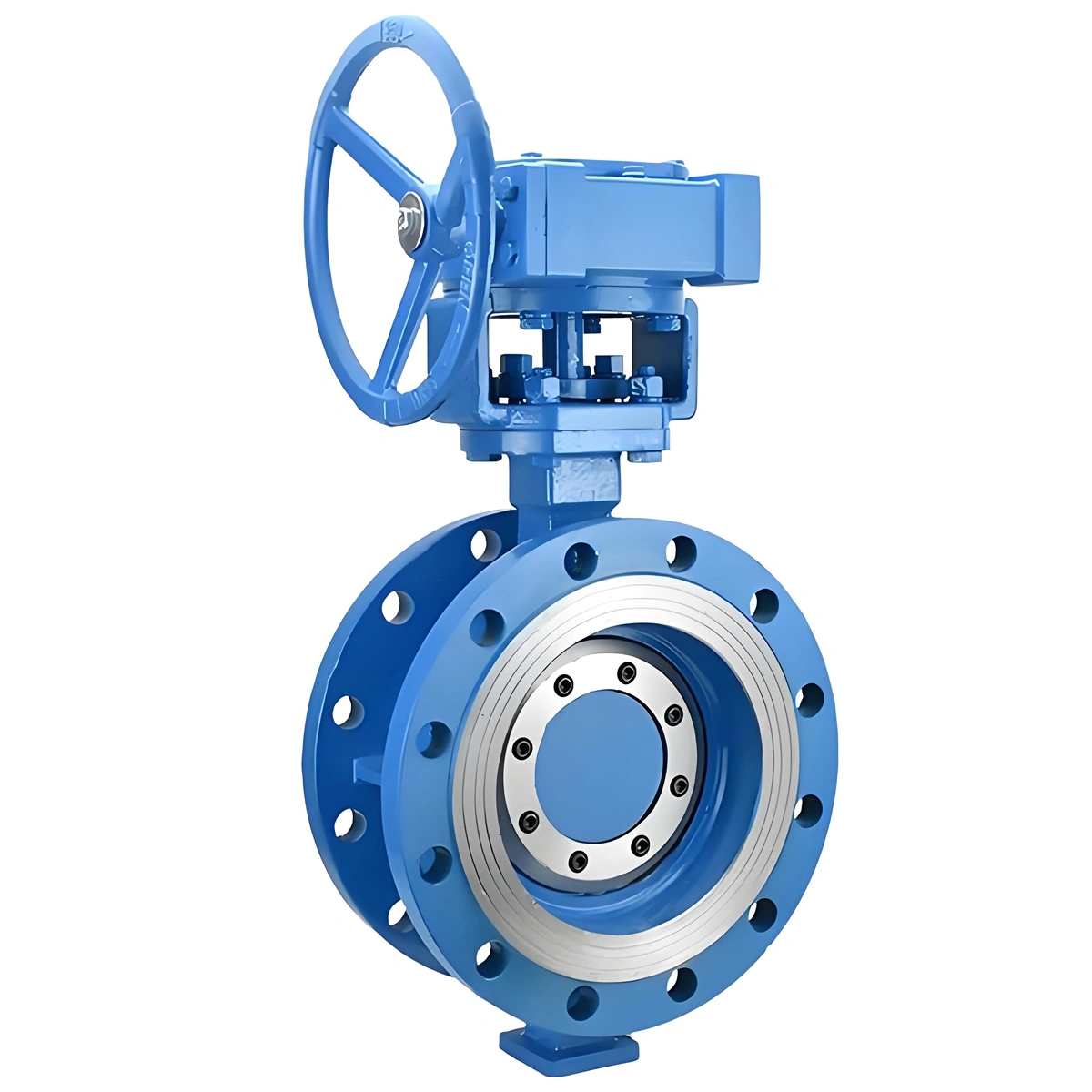

China Triple Offset Butterfly Valve Manufacturer

TianYu valves As a Professional Triple Offset Butterfly Valve Manufacturer in China, We Specialize in Delivering Offset Butterfly Valves Designed for Precision and Reliability. Select from Such Offset Butterfly Valves Factory offered by a Reliable Chinese Manufacturer for Fluid Control Solutions.

Our company is widely recognized as one of the most reliable triple-offset butterfly valve manufacturers in China.
Design Standards: API 609 Cat B
Size Range: 2 – 72 Inch
Pressure Range: Class 150-2500 LB
End Connections: Wafer, Lug, Flanged (FF, RF, RTJ), BW
Material Types: Carbon Steel, Stainless Steel, Duplex Steel, Al-BRZ, Alloy, Ti
Seat Type: Metal with Hard facing
Disc Seat:
Solid metal seal ring (for bi-direction service)
or laminated graphite+SS seal ring
or laminated PTFE+SS seal ring (for service need cleanness like seawater)
Top Mounting: ISO 5211 top mounting is available
Operation Types: Lever, Gear, Pneumatic Actuator, Motor Actuator
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and fire safe

API 609 ASME CE DN250 150LB WCB Body Aluminum Bronze Disc STL Seat Triple Offset Wafer Type Hard Seal Butterfly Valve

TIANYU’s triple offset hard-seal butterfly valve delivers long-lasting sealing, high-temp resilience, and low operational costs for harsh industrial systems. Customize it with duplex steel body for extreme offshore corrosion, Inconel disc for ultra-high temps (up to 500℃), or higher pressure ratings (up to 600LB) for heavy-duty service. Opt for explosion-proof pneumatic/electric actuators for hazardous zones, or RTJ wafer connections for tight high-pressure sealing. These tweaks align the valve with your specific media, pressure, and space needs—boosting durability and operational efficiency.

Large-Diameter DN1400 CLASS150 WCB Triple Eccentric Metal-Sealed Hard Seal Butterfly Valve

TIANYU DN1400 (56") CLASS 150 WCB hard seal butterfly valve delivers reliable, long-lasting flow control for large-diameter industrial and municipal applications. Its triple eccentric design, Stellite hard seal, WCB construction, and flanged connection ensure wear resistance, leak-tight performance, and seamless integration, backed by API/ASME standards.Customize with 304/316 stainless steel for enhanced corrosion resistance, extended temperature range (-40℃~500℃) with alloy steel components, pneumatic/electric actuators for automation, fire-safe/anti-static features, or JIS/GB flange standards. Tailor to your media type, flow requirements, and safety needs for optimal large-diameter pipeline performance.

PN10 DN400 WCB Stainless Steel 304/316L Large Diameter Three Eccentric Metal Sealing Pneumatic Butterfly Valve

TIANYU PN10 DN400 three-eccentric metal sealing pneumatic butterfly valve: WCB/304/316L, -20℃~400℃, ANSI Class IV leakage. Ideal for municipal, power, chemical sectors needing large-flow, high-temp reliability. Customize with 316Ti disc for extreme chloride, explosion-proof actuator (ATEX/IECEx), WC seal for high abrasion, or ASME B16.5 Class 150 flange. Tailor to your media, temp, and control needs.

DN400 PN16 WCB Bidirectional Pressure-Bearing Triple Eccentric Metal Multi-Layer Hard Seal Wafer Butterfly Valve

TIANYU DN400 PN16 WCB bidirectional pressure-bearing triple eccentric metal multi-layer hard seal wafer butterfly valve excels in medium-pressure systems with steam, oil, or water. Its triple eccentric design, multi-layer hard seal, and bidirectional bearing ensure tight shutoff and durability. Ideal for power, petrochemical, and municipal sectors. Customizable (drive type, seal materials) to meet specific needs, backed by strict quality testing.

Wafer Lug Type Triple Eccentric Full Stainless Steel/Carbon Steel Butterfly Valve

Wafer Lug Type Triple Eccentric Full Stainless Steel/Carbon Steel Butterfly Valve TIANYU wafer lug type triple eccentric butterfly valve, with 2"~36" sizes, 150/300lb pressure, -29~425°C temp range, suits water, steam, oil, seawater. Its triple eccentric design ensures tight sealing, worm gear offers precise control. Stainless steel/carbon steel options enhance versatility. Ideal for water treatment, petrochemical, power, marine sectors. Customization (materials, sizes) available to meet specific needs

DN1200 150LB Raised Face Flanged CF8M Triple Offset Hard Seal Butterfly Valve

TIANYU 48" DN1200 150LB raised face flanged CF8M triple - offset hard - seal butterfly valve integrates advanced design concepts, high - quality materials, and sophisticated manufacturing processes. Its important attribute specifications, including the large 48 - inch size, 150LB pressure rating, CF8M valve body material, raised face flange connection, and hard - seal structure, lay a solid foundation for its excellent performance.

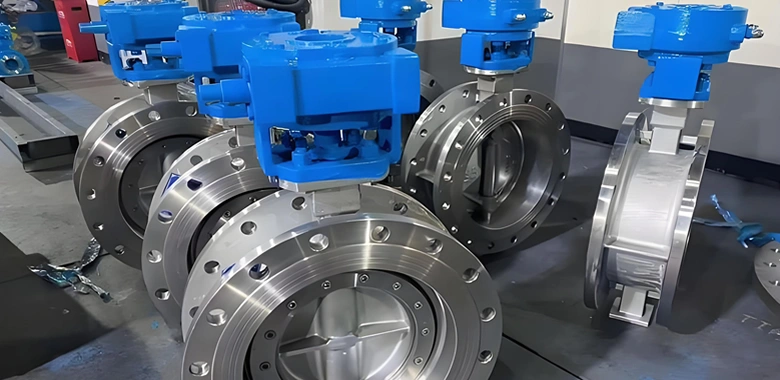

TRIPLE OFFSET BUTTERFLY VALVE

Compared with double offset butterfly valves, the design of A triple offset butterfly valve is similar but with a metal seat and an additional 3rd offset (disc-seat contact axis), which makes it with better sealing and less wear, and it’s able to work under low/high temperature, higher pressure and various fluid.

What is a Triple Offset Butterfy Valves

A triple offset butterfly valve is an advanced valve designed for critical applications, offering exceptional performance and durability. This valve features three offsets: two from the centerline and one from the seating axis, creating a cam-like motion that eliminates friction during operation. This design ensures a tight seal and extends the valve’s lifespan, even in high-pressure and high-temperature environments. Ideal for industries such as oil and gas, petrochemical, and power generation, triple offset butterfly valves provide reliable, zero-leakage shut-off. Implementing these valves can enhance system efficiency, reduce maintenance costs, and ensure safe, long-term operation.

Related News

Exploring the Features of Double Eccentric Butterfly Valves

A double eccentric butterfly valve offers reduced wear, reliable sealing, and durability, making it ideal for high-pressure and high-temperature applications.

April 9, 2025

Finding the Perfect Chinese Manufacturer for Your Butterfly Valve Needs

Select a reliable Chinese butterfly valve manufacturer by evaluating quality, cost, and production capabilities to meet your business needs.

November 19, 2024

Industrial butterfly valve complete solution

Brief introduction Butterfly valve, also known as flap valve, is a type of regulating valve with a simple structure that can be used for on/off control of low-pressure pipeline media. Butterfly valve refers to a valve whose closing element (valve disc or butterfly plate) is a disc that rotates around the valve axis to achieve […]

September 27, 2024

TOP QUALITY TRIPLE OFFSET BUTTERFLY VALVES FOR YOU

A triple offset butterfly valve (TOV, HPBV or TOBV) is widely used in critical applications for isolation and regulating services.
If you need any support about our Butterfly Valves, pls contact us!

Triple Offset Butterfly Valves Parts
